Nailor 35SW - Page 20

Nailor Industries Inc. reserves the right to change any information concerning product or pricing without notice.
SCHEDULE TYPE:
PROJECT:
ENGINEER:
CONTRACTOR:
DATE B SERIES SUPERSEDES DRAWING NO.
12 - 20 - 23 3500 11 - 4 - 22 35SXC-1
Page 2 of 2.
Dimensions are in inches (mm).

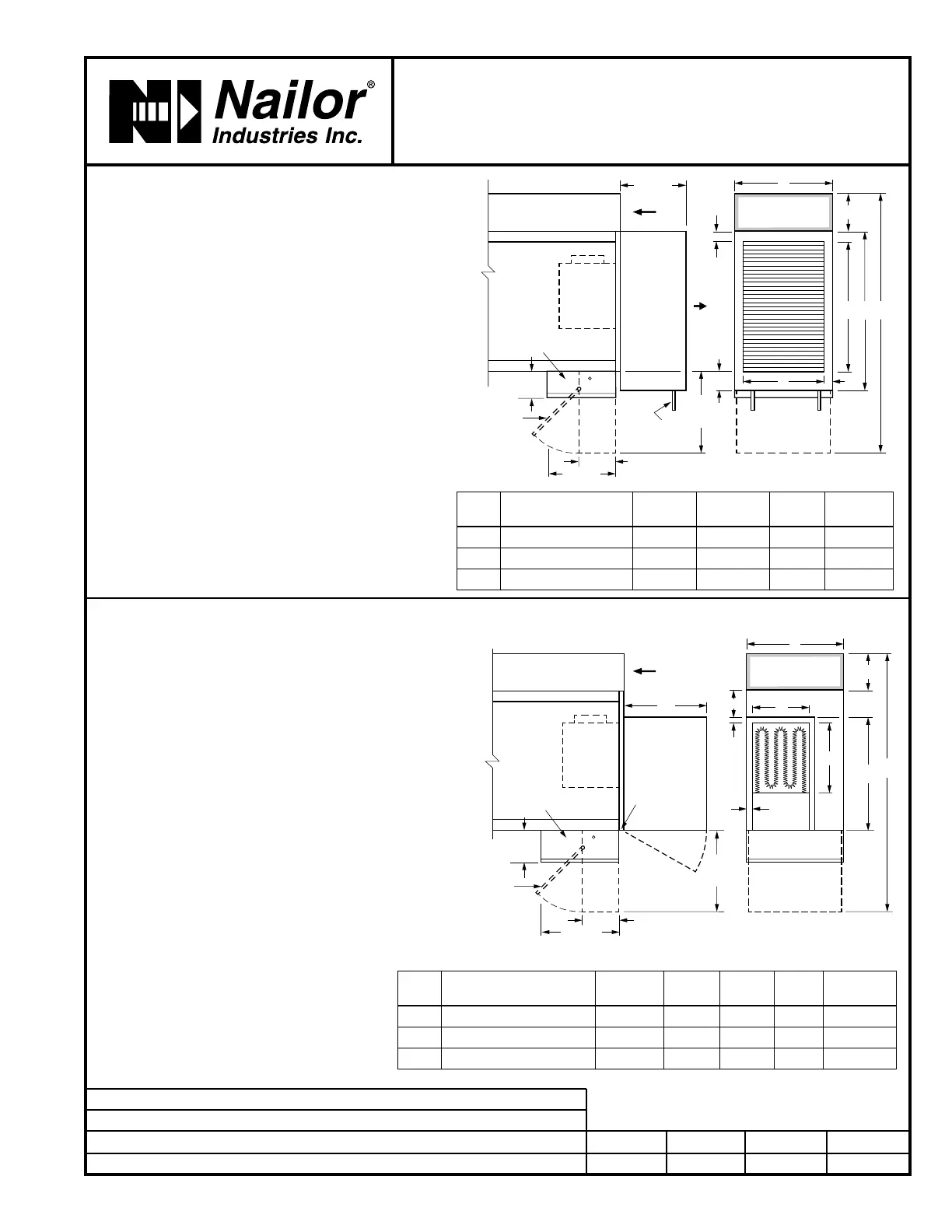

FAN POWERED TERMINAL UNIT W/ EPIC ECM MOTOR
HEAT ACCESSORIES • STEALTH XC • SERIES FLOW
SUPER QUIET • EXPOSED CEILING APPLICATIONS
VARIABLE VOLUME FAN OPERATION
MODELS: 35SXC, 35SWXC & 35SEXC • UNIT SIZES 1, 3 & 5
q Hot Water Coil Section
Model 35SWXC STEALTH XC
Standard Features:
• Coil section installed on unit discharge.
• Coil (and header on multi-circuit units) is installed in
insulated casing for increased thermal efficiency.
• 1/2" (13) copper tubes.
• Aluminum ripple fins.
• Sweat Connections:
Size 1: 1 Row 1/2" (13), 2 and 3 Row 7/8" (22); O.D.
male solder.
Sizes 3 & 5: 1, 2, and 3 Row 7/8" (22); O.D. male solder.
• Top and bottom access panels for inspection and coil
cleaning.
• Flanged outlet duct connection.
Coil Rows:
q
1-Row q 2-Row q 3-Row
Coil Hand Connections:
(Looking in direction of airflow).
q Right hand (illustrated). Standard.
q Left hand (terminals are inverted). Optional.
Connections must be selected same hand as controls
enclosure location.
Standard Features:
• Unique hinged heater design permits easy access, removal
and replacement of heater element without disturbing
ductwork.
• Coil installed on unit discharge.
• Insulated coil element wrapper.
• Automatic reset high limit cut-outs (one per element).
• Single point electrical connection (except 600V).
• Positive pressure airflow switch.
• Flanged outlet duct connection.
• Class A 80/20 Ni/Cr wire.
• Terminal unit with coil is ETL Listed as an assembly.
• Controls mounted as standard on RH side as shown.
Terminals ordered with LH controls (optional) are inverted
and discharge duct hanging elevation will therefore change.
Voltage:
Single phase, 60 Hz.
q 120V q 208V q 240V q 277V
Three phase, 60 Hz.
q 208V q 480V (4 wire wye).
q 600V (dual point connection). q __________ .
Options:
q
Toggle disconnect switch (includes fan).
q SCR control.
q Door interlock disconnect switch.
q Mercury contactors.
q Power circuit fusing.
q Dust tight construction.
q Manual reset secondary thermal cut out.
q Electric Coil Section Model 35SEXC STEALTH XC
INDUCED
AIR
IW
FAN
12" (305)
3 9/16"
(90)
D
EC
W2
1 13/16"
(46)
J
COIL
CONNECTIONS
HINGED
FAN CONTROLS
ENCLOSURE
6 3/4" (171)
15"
(381)
IH
14" (356)
OPTIONAL
90° FN2
CONTROLS
ENCLOSURE
5 3/4"
(146)
6 3/4" (171)
15"
(381)
IH
INDUCED
AIR
IW
FAN
N
G
K
F
1"
(25)
M
1"
(25)
14" (356)
HINGED FOR
ELEMENT
REMOVAL
HINGED
ELECTRIC
COIL
AND FAN
CONTROLS
ENCLOSURE
HEATER
5 3/4"
(146)
OPTIONAL
90° FN2 HINGED
FAN CONTROLS
ENCLOSURE
W2
Unit
Size
Outlet Duct Size
F x G
W2 K H M N
1
10 1/4 x 10 1/2 (260 x 267) 41 (1041) 16 (406) 14 (356) 4 (102) 12 1/2 (318)
3
12 1/4 x 10 3/4 (311 x 273) 47 (1194) 22 (559) 18 (457) 4 (102) 15 1/4 (387)
5
16 1/4 x 15 3/4 (413 x 400) 53 (1346) 22 (559) 20 (508) 4 (102) 15 1/4 (387)
Unit
Size
Outlet Duct Size
C x D
W2
E
H J
1
16 x 12 1/8 (406 x 308) 41 (1041) 21 3/8 (543) 14 (356) 1 (25)
3
16 x 14 7/8 (406 x 378) 47 (1194) 21 3/8 (543) 18 (457) 1 1/2 (38)
5
24 x 14 7/8 (610 x 378) 53 (1346) 29 3/8 (746) 20 (508) 1 1/2 (38)
