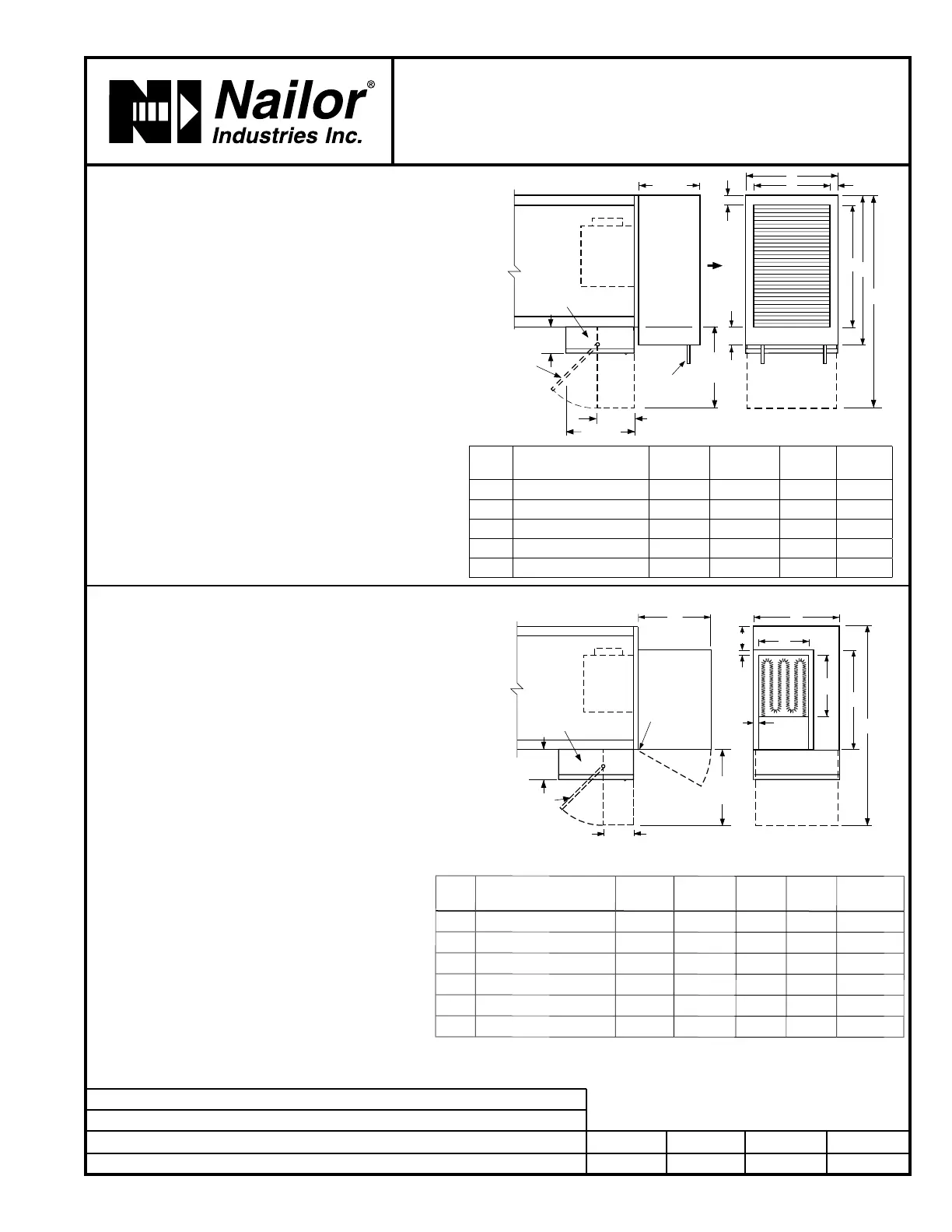

Nailor 35SW - Page 2

Nailor Industries Inc. reserves the right to change any information concerning product or pricing without notice.
SCHEDULE TYPE:
PROJECT:
ENGINEER:
CONTRACTOR:
FAN POWERED TERMINAL UNIT WITH
EPIC ECM MOTOR • HEAT ACCESSORIES
SERIES FLOW • CONSTANT OR VARIABLE VOLUME
MODELS: 35S, 35SW AND 35SE • UNIT SIZES 1 – 6
Page 2 of 2.
Dimensions are in inches (mm).
DATE B SERIES SUPERSEDES DRAWING NO.
2 - 6 - 23 3500 10 - 28 - 22 35S-1
q Hot Water Coil Section Model 35SW
Standard Features:
• Coil section installed on unit discharge.
• Coil (and header on multi-circuit units) is installed in
insulated casing for increased thermal efficiency.
• 1/2" (13) copper tubes.
• Aluminum ripple fins.
• Sweat Connections:
Size 1 – 3: 1 Row 1/2" (13), 2 and 3 Row 7/8" (22);
O.D. male solder.
Size 4 – 6: 1, 2, and 3 Row 7/8" (22); O.D. male
solder.
• Top and bottom access panels for inspection and coil
cleaning.
• Flanged outlet duct connection.
Coil Rows:
q
1-Row q 2-Row q 3-Row
Coil Hand Connections:
(Looking in direction of airflow).
q Right hand (illustrated). Standard.
q Left hand. Optional.
q Electric Coil Section Model 35SE
Standard Features:
• Unique hinged heater design permits easy access,
removal and replacement of heater element without
disturbing ductwork.
• Coil installed on unit discharge.
• Insulated coil element wrapper.
• Automatic reset high limit cut-outs (one per element).
• Single point electrical connection (except 600V).
• Positive pressure airflow switch.
• Flanged outlet duct connection.
• Class A 80/20 Ni/Cr wire.
• Terminal unit with coil is ETL Listed as an assembly.
• Controls mounted as standard on RH side as shown.
Terminals ordered with LH controls (optional) are
inverted and discharge duct hanging elevation will
therefore change.
Voltage:
Single phase, 60 Hz.
q 208V q 240V q 277V
Three phase, 60 Hz.
q 208V q 480V (4 wire wye).
q 600V (dual point connection). q __________ .
FAN
12" (305)
3 9/16"
(90)
D
E
C
1 13/16"
(46)
J
COIL
CONNECTIONS
H
W2
15"
(381)
HINGED
FAN
CONTROLS
ENCLOSURE
6 3/4" (171)
14" (356)
OPTIONAL
90° FN2
CONTROLS
ENCLOSURE
5 3/4"
(146)
FAN
N
G
H
K
F
1"
(25)
M
1" (25)
HINGED FOR
ELEMENT
REMOVAL
W2
15"
(381)
OPTIONAL
90° FN2
CONTROLS
ENCLOSURE
6 3/4"
(171)
5 3/4"
(146)
HINGED
ELECTRIC
COIL AND
FAN CONTROLS
ENCLOSURE
HEATER
Options:
q
Toggle disconnect
switch (includes fan).
q SCR control.
q Door interlock
disconnect switch.
q Quiet type contactors.
q Mercury contactors.
q Power circuit fusing.
q Dust tight construction.
q Manual reset secondary
thermal cut out.
Unit
Size
Outlet Duct Size
F x G
W2 K H M N
1
10 1/4 x 10 1/2 (260 x 267) 35 (889) 16 (406) 14 (356) 4 (102) 12 1/2 (318)
2
10 1/4 x 10 1/2 (260 x 267) 33 (838) 15 1/2 (394) 14 (356) 2 1/2 (64) 12 1/2 (318)
3
10 1/4 x 10 1/2 (260 x 267) 33 (838) 15 1/2 (394) 18 (457) 2 1/2 (64) 15 1/4 (387)
4
13 x 10 1/2 (330 x 267) 41 (1041) 21 (533) 18 (457) 5 (127) 15 1/4 (387)
5
14 1/4 x 11 3/4 (362 x 298) 41 (1041) 22 (559) 18 (457) 4 (102) 15 1/4 (387)
6
14 1/4 x 11 3/4 (362 x 298) 45 (1143) 25 (635) 19 (483) 5 (127) 15 1/4 (387)
Unit
Size
Outlet Duct Size
C x D
W2 E H J
1
16 x 12 1/8 (406 x 308) 35 (889) 21 3/8 (543) 14 (356) 1 (25)
2
16 x 12 1/8 (406 x 308) 33 (838) 21 3/8 (543) 14 (356) 1 (25)
3
16 x 14 7/8 (406 x 378) 33 (838) 21 3/8 (543) 18 (457) 1 1/2 (38)
4, 5
24 x 14 7/8 (610 x 378) 41 (1041) 29 3/8 (746) 18 (457) 1 1/2 (38)
6
28 x 17 1/8 (711 x 435) 45 (1143) 33 3/8 (848) 19 (483) 1 (25)
