FAN POWERED TERMINAL UNIT WITH
EPIC ECM MOTOR
SERIES FLOW • CONSTANT OR VARIABLE VOLUME
MODELS: 35S, 35SW AND 35SE • UNIT SIZE 7
DATE B SERIES SUPERSEDES DRAWING NO.
4 - 25 - 23 3500 2 - 6 - 23 35S-2
Page 1 of 2.
For heat options; see page 2.
Dimensions are in inches (mm).

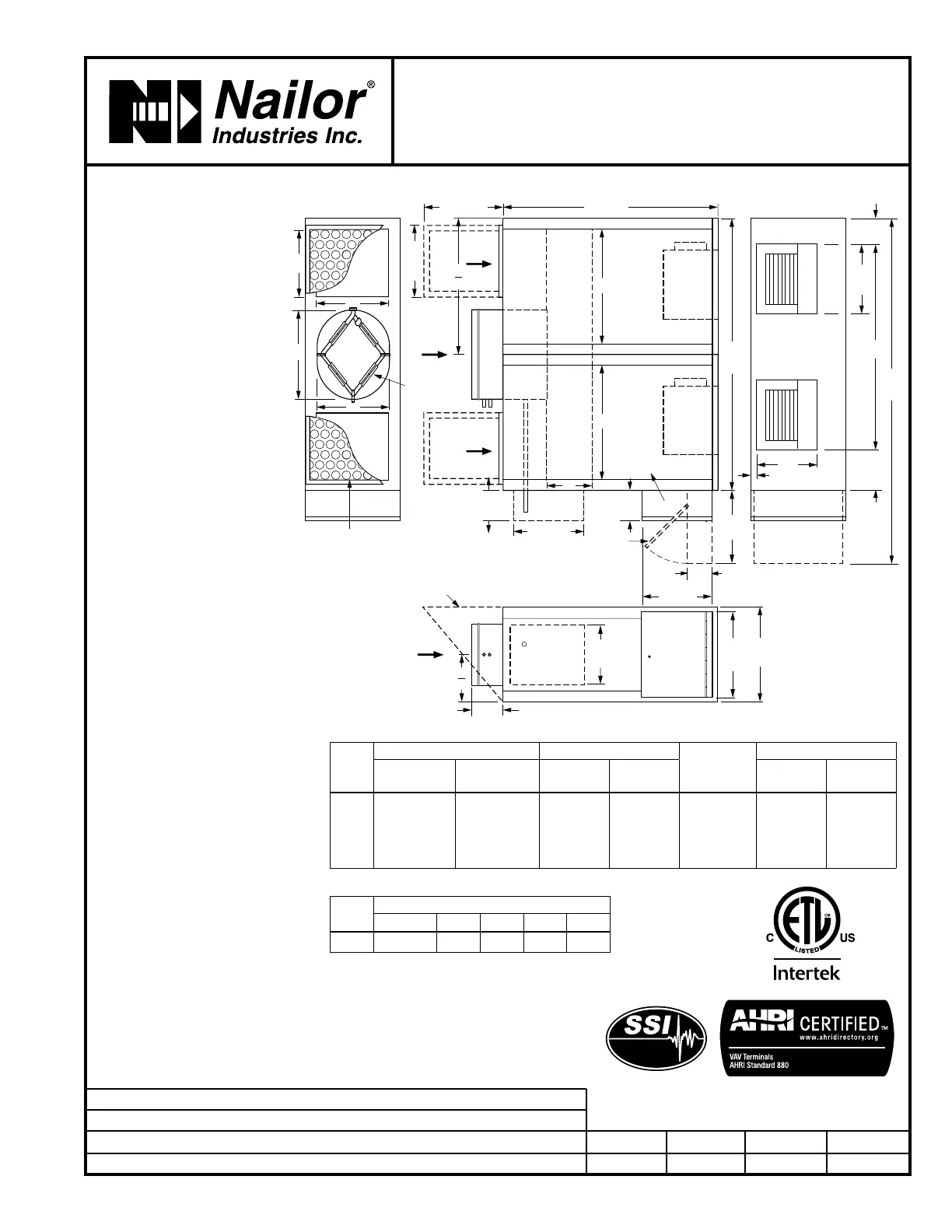

Model 35S • Basic Unit
Dimensional Data
Unit
Size
Inlet Induced Air Inlet
Outlet
Discharge
DW x DH
Filter Size
Size PW x PH
Side (std.)
IW x IH
Top (opt.)
TL x TW
Side Inlet
(std.)
Top Inlet
(opt.)
7
14 (356) Rd.
16 (406) Rd.
18 (457) Oval
13 7/8 (352)
15 7/8 (403)
20 3/16 x 13 7/8
(513 x 352)
12 x 14
(305 x 356)
Qty. of 2
8 1/2 x 22
(216 x 559)
Qty. of 2
39 1/4 x 11 1/2
(997 x 292)
14 x 16
(356 x 406)
Qty. of 2
16 x 25
(406 x 635)
Qty. of 2
Electrical Data
FAN
OPTIONAL INDUCED
AIR FILTER
TL
TW
MULTI-POINT
FLOW SENSOR
1" (25)
DH
DW
OPTIONAL
TOP
INLET
(TWO)
FAN
TW
13 1/4"
(337)
5"
(127)
PW
W
2
PRIMARY
AIR
IH
PH
7 3/4"
(197)
67"
(1702)
52"
(1321)
5 3/4"
(146)
14" (356)
IW
IH + 2" (51)
41" (1041)
IW
+ 2"
(51)
INDUCED
AIR
INDUCED
AIR
H -
1" (25)
PRIMARY
AIR
H
2
'Q' OPTION
INDUCED AIR
ATTENUATOR
HINGED FAN
CONTROLS
ENCLOSURE
14" (356)
11"
(279)
OPTIONAL
PRIMARY
AIR VALVE
CONTROLS
ENCLOSURE
6 3/4"
(171)
5 3/4"
(146)
15"
(381)
18"
(457)
OPTIONAL
90° FN2
CONTROLS
ENCLOSURE
HINGED
FAN
CONTROLS
ENCLOSURE
5 1/2"
(140)
Unit
Size
EPIC ECM Motor FLA
Motor HP 120V 208V 240V 277V
7
*
15.9 10.5 9.9 10.0
*
The ECM is a variable horsepower motor.
Refer to Selectworks schedule for actual power consumption.
FLA = Full load amperage. All motors are single phase/60 Hz.
DESCRIPTION:
• 18 ga. (1.31) galvanized steel
channel frame with 20 ga.
(1.00) casing components.
• 16 ga. (1.61) galvanized steel
inclined opposed blade
damper.
45° rotation. CW to close.
• Ultra-high efficiency ECM
fan motor. EPIC fan volume
controller.
• Multi-point averaging
Diamond Flow sensor. Supplied
with balancing tees.
• Full size access panels on
three sides.
• 3/4" (19) dual density
insulation, exposed edges
coated to prevent air erosion.
Meets requirements of NFPA
90A and UL 181.
• Single point electrical and /or
pneumatic main air connection.
• Discharge opening for flanged
duct connection.
• Full primary air valve low
voltage NEMA 1 type enclosure
for factory mounted DDC and
analog electronic controls.
• Controls mounted as
standard on RH side as shown.
Terminals ordered with LH
controls (optional) are inverted
and discharge duct hanging
elevation will therefore change.
Seismic Certification:
q Seismic Source International (Standard)
q HCAI (formerly OSHPD, California)
q Special Features: _________ .
OPTIONS:
Digital Controls:
q Factory mounted (supplied by others)
q Field mounted (supplied by others)
q Nailor
EZvav. See separate submittal.
Liner:
q Steri-liner
q Steri-liner + Perforated metal
q Fiber-free
q Perforated metal
q Solid metal
q 1" (25) fiberglass
q Low temperature construction
Other:
q Left-hand controls location
q Toggle disconnect switch
q Fan unit fusing
q 24/24V Isolation transformer
q Cross Flow Sensor
q 'Q' Option – Induced Air Inlet
Attenuator
q Top entry induced air inlet
q 1" (25) Throwaway filter
q 2" (51) MERV 8 filter
q Hanger brackets.
q 1/4-turn fasteners (access panel)
q FN2 90° Line Voltage Enclosure
q FN3 Remote Line Voltage Controls
Enclosure (See submittal FN3)
q Dust tight enclosure seal
q Remote user disconnect
