NAPCO Security Systems
GEM-P1632 Programming Instructions
WI897B 8/98
Page 17

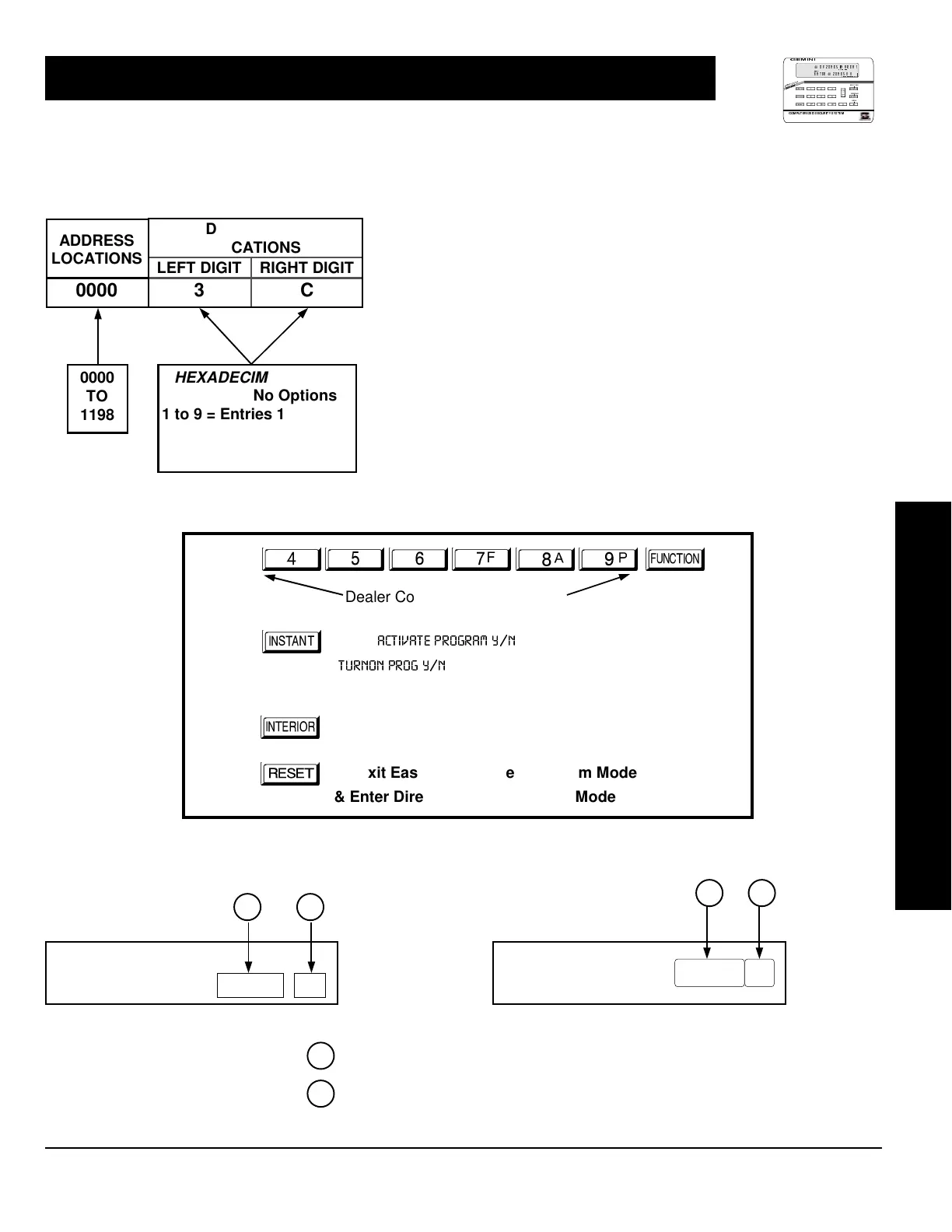

DIRECT ADDRESS PROGRAM MODE
This is an extension of the Dealer Program Mode. This method of programming is used in conjunction with the Keypad
Programming Worksheets that follow. Refer to these worksheets to identify the 4-digit location (address) of the feature to
be programmed. An illustrative example is provided on the next page.
Direct Address Programming allows you to go directly to the address
locations and change the data entries to customize your control panel
options. Whereas the Easy Menu Program Mode is a simple quick
start guide with limited options, the Direct Address Program Mode is
more flexible allowing you to change all the options.
It consists of multiple address locations (up to 1198) with two data
entry locations each (left and right) as shown in the adjacent diagram.
ARMED
STATUS
NEXT/YES
PRIOR/NO
AREA
DATA ENTRY
LOCATIONS
LEFT DIGIT RIGHT DIGIT
3C
ADDRESS
LOCATIONS
0000
0000
TO
1198
HEXADECIMAL DATA:
BLANK (•) = No Options
1 to 9 = Entries 1 to 9
0 = Entry of 10
B to F = Entries 11 to 15
GEM-RP2ASe2 Keypad
""""$
GEM-RP1CAe2 Keypad
""""$
= ADDRESS LOCATION
= DATA ENTRY LOCATION
1 2
1 2
1
2
1. Press
2. Press
Until
“
”
(GEM-RP1CAe2) or
“
”
(GEM-RP2ASe2)
appears on LCD screen.
3. Press
To Enter Dealer Program Mode
4. Press
To Exit Easy Menu Driven Program Mode
& Enter Direct Address Program Mode
Dealer Code (Default = 456789)
To Next Page
