Napoleon Ascent Linear Series - 10 Finish Framing; Recessed

EN
W415-2757 / B / 01.09.20
41
fi nish framing
10.2 recessed
BL36-1 BL46
I
41 1/2” (105.4cm)
A
16” (40.6cm) 18 9/16” (47.1cm)
B
36 1/2” (92.7cm) 47 3/8” (120.3cm)
H
56” (142.2cm)
J
4” (10.2cm)
DRYWALL
CEILING
J*
H
B
I
A
*maximum

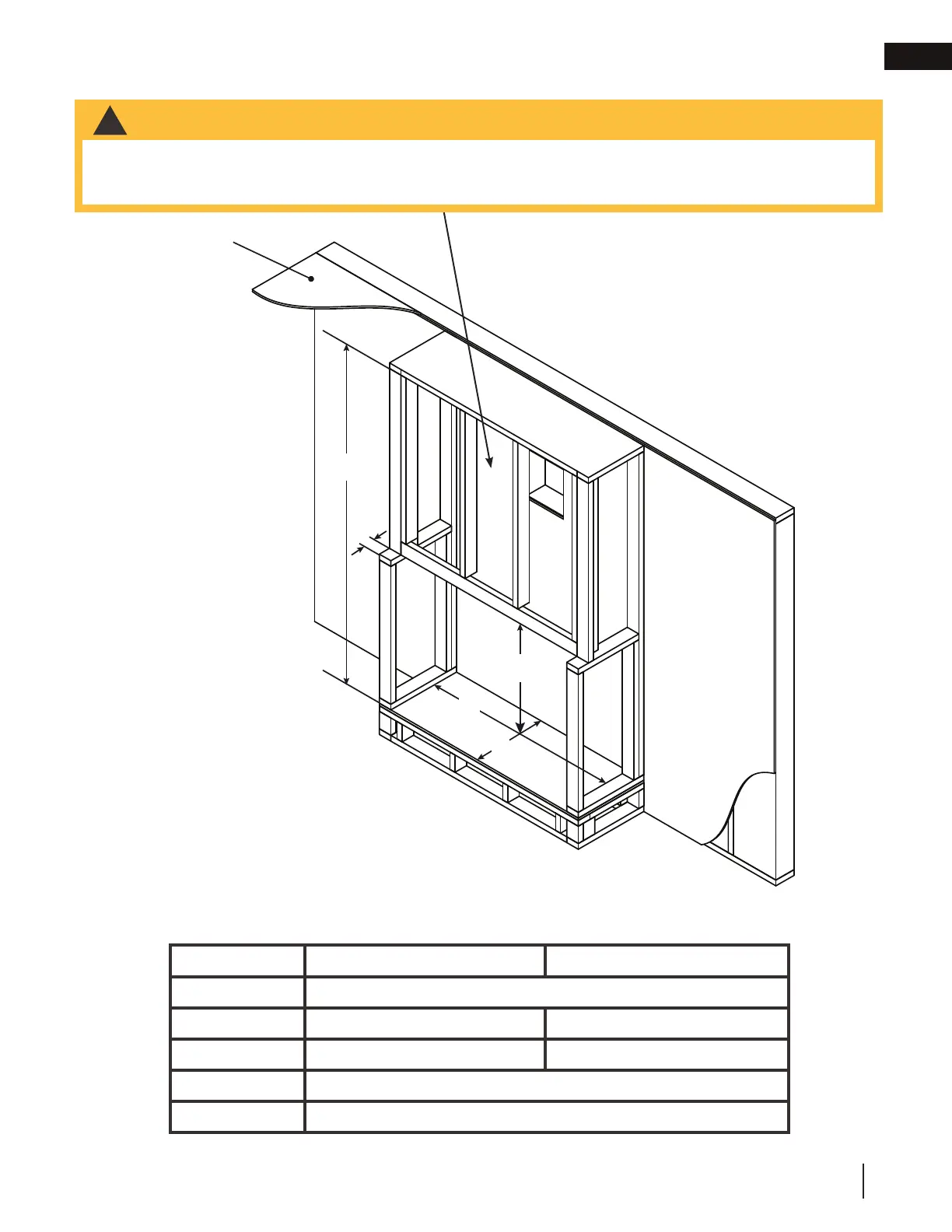

• Do not build into this area - it must be left clear to provide adequate clearance for the vent in this 14”
(35.6cm) wide area centered along the front of the appliance. The appliance should be in its fi nal location
before framing.
!
WARNING
