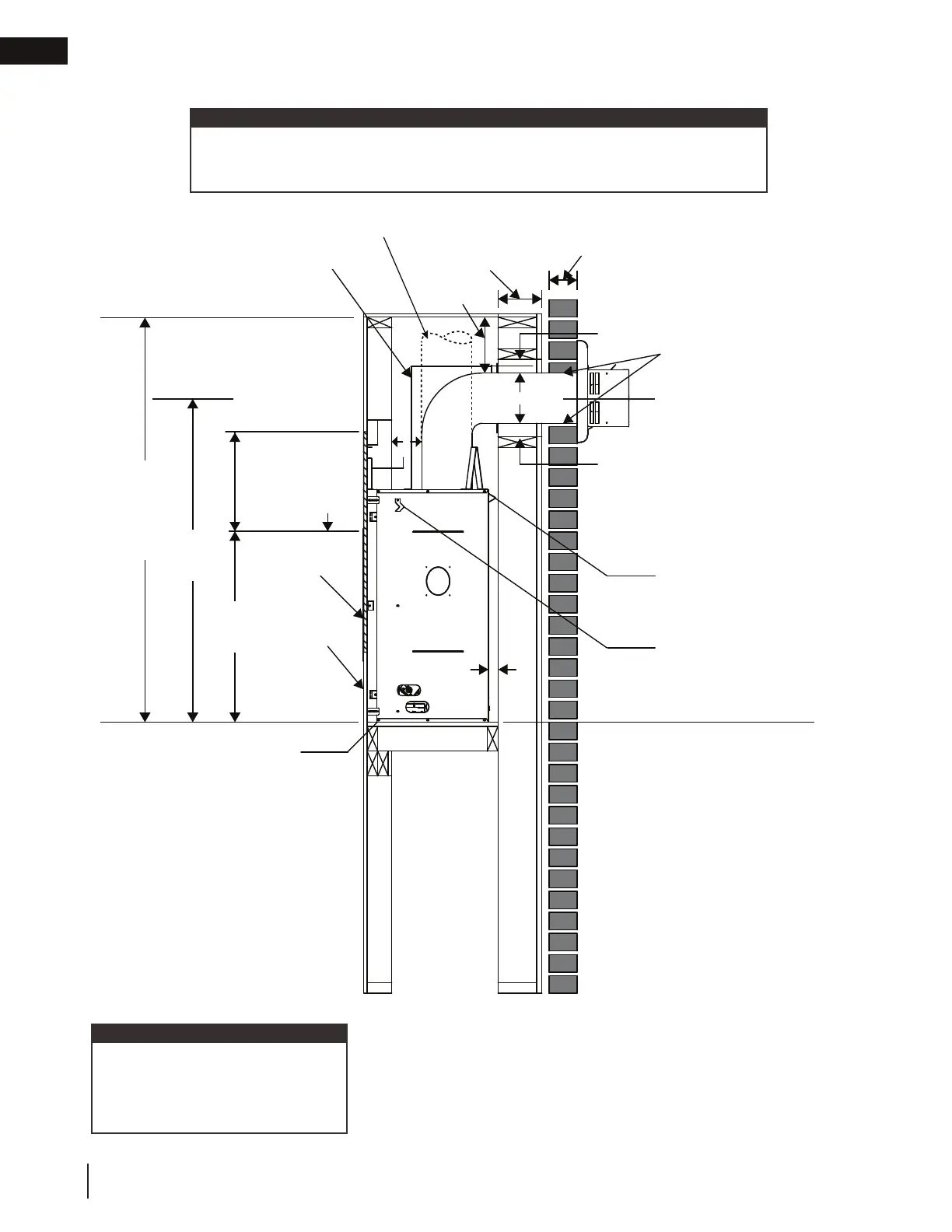

fi nish framing
10.3 minimum clearance to combustible enclosures
* See “venting requirements” and “venting installation” sections.
Vent Sections
When passing through a wall, use fi restop spacer W010-4404 (supplied).
When passing through a ceiling, use fi restop spacer W500-0096 (not supplied).
note:
Top of
appliance
opening
0” if non-combustible finishing
is used such as brick and stone.
Combustible
material
Non-combustible
material
Combustible
Non-combustible
56”
(142.2cm)
ceiling
(min.)
27 1/2”
(69.9cm)
1”
(25.4mm)
46”
(116.8cm)*
6 1/2”
(16.5cm)
3”
(76.2mm)
top
1”
(25.4mm)
bottom
14”
(35.6cm)
Vent shield
Top of
combustible
opening
Center of
vent pipe
3" [76.2mm] minimum all sides for vertical venting.
3”
(76.2mm)
The vent shield is telescopic and
must be adjusted to shield the
full depth of the combustible wall
penetration.
note:
**
** Clearances within the enclosure may be higher, see
“minimum framing dimensions” section.
(Not required for BL36-1)
0” to back standoffs
0” to side standoffs
0” to bottom of the
appliance
1”(25.4mm)
to vent sides

Napoleon Ascent Linear Series Specifications

General

Model	Ascent Linear Series
Category	Indoor Fireplace
Fuel Type	Natural Gas or Propane
Viewing Area	Varies by model
Ignition System	Electronic Ignition
Control System	Remote Control
Glass Type	Tempered Glass
Vent Type	Direct Vent
Burner Type	Linear Burner
Dimensions	Varies by model
Weight	Varies by model
Installation Type	Built-in
Log Set	Optional
Warranty	Limited Lifetime Warranty
