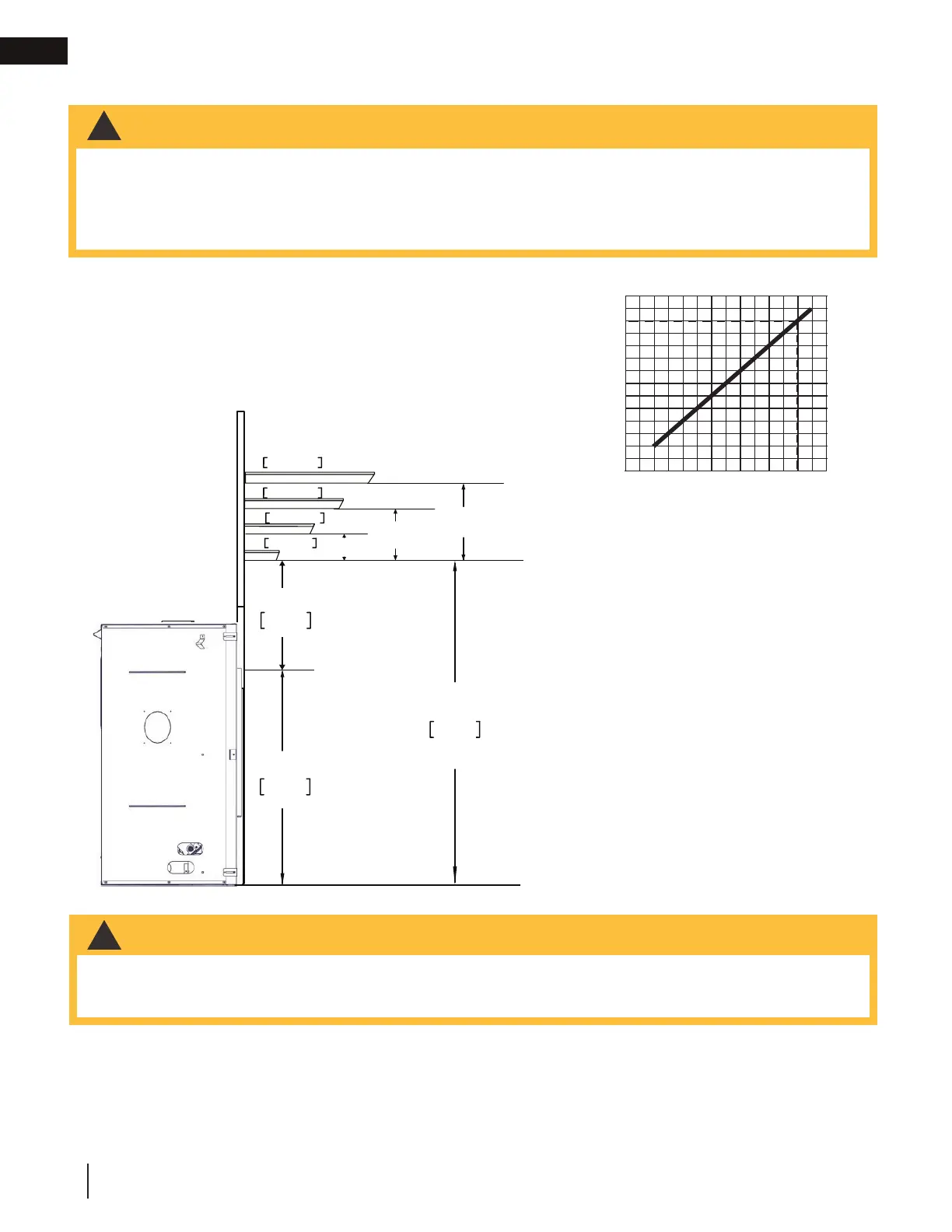

Combustible mantel clearance can vary according to the mantel depth. Use the graph to help evaluate the
clearance needed.
11.3 minimum combustible mantel clearances
!
WARNING
• Risk of fi re. Maintain all specifi ed air space clearances to combustibles. Failure to comply with these instructions
may cause a fi re or cause the appliance to overheat. Ensure all clearances (i.e. back, side, top, vent, mantel,
front, etc.) are clearly maintained.
• When using paint or lacquer to fi nish the mantel, the paint or lacquer must be heat resistant to prevent
discolouration.
APPLIANCE
OPENING
2"
50.8mm
4"
101.6mm
6"
152.4mm
8"
203.2mm MANTEL
27 1/2"
69.9cm
39 1/2”
100.3cm
12”
30.5cm
6”
(152.4mm)
4”
(101.6mm)
2”
(50.8mm)
2
&
3
9
*
1
-
*
.
,
-
9
12" (30.5cm)
2 4 6 8 10 12
MANTEL DEPTH (INCHES)
14" (35.6cm)
16" (40.6cm)
20" (50.8cm)
22" (55.8cm)
18" (45.7cm)
• Installing a television or other electronics above the appliance may cause discolouration, melting, or damage
to the electronics. Use clearances as guidelines and refer to your TV manufacturer’s instructions for further
information.
Installing a mantel between this appliance and electronics or other materials that may be sensitive to heat,
will reduce the effect of direct heat on them. Follow mantel height and depth instructions for proper clearance
information. Refer to the “minimum combustible mantel clearances” section for detailed mantel clearance
information.
!
