W415-2757 / B / 01.09.20

ﬁ nishing

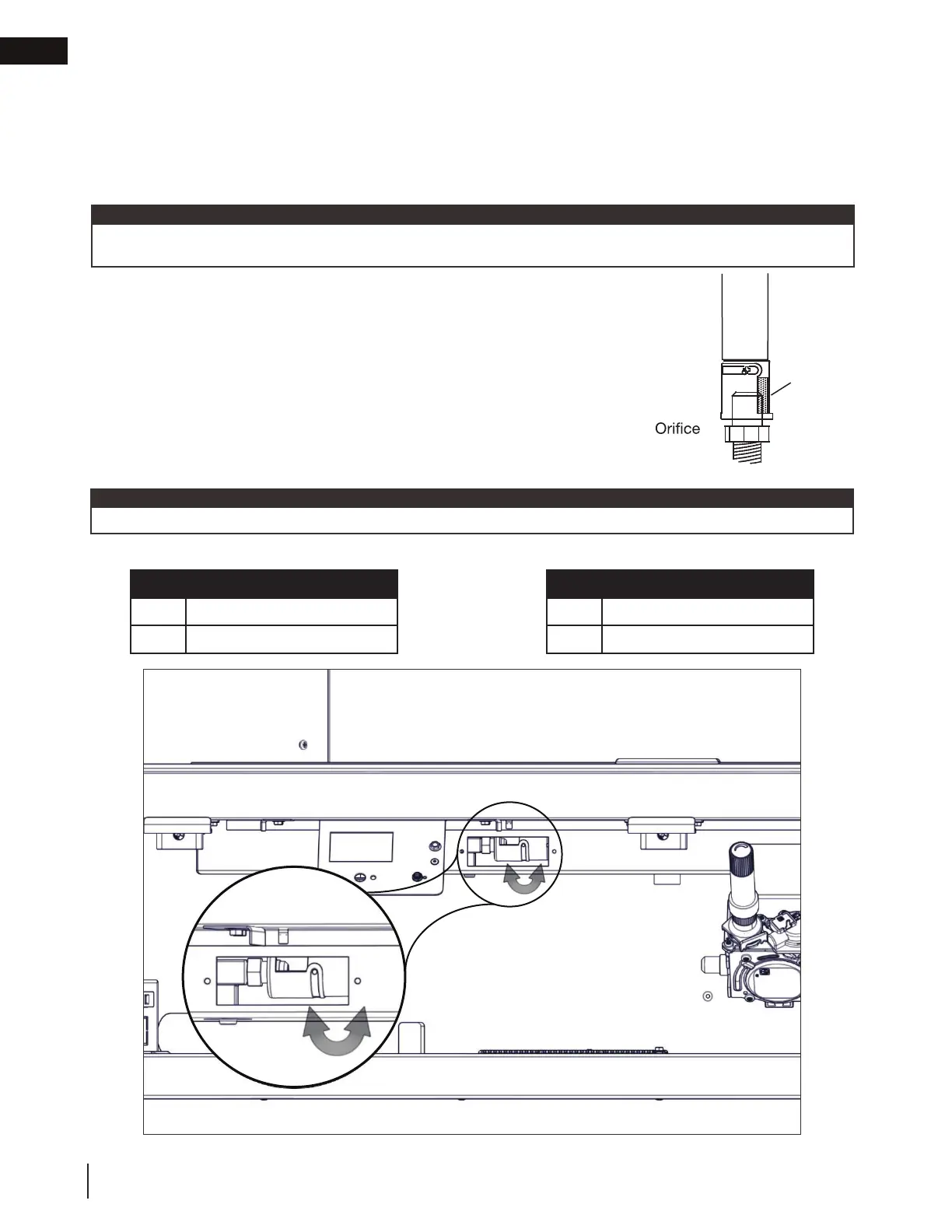

This appliance has an air shutter that has been factory set open according to the

chart below:

Regardless of venturi orientation, closing the air shutter will cause a more yellow

ﬂ ame, but can lead to carbonization. Opening the air shutter will cause a more

blue ﬂ ame, but can cause ﬂ ame lifting from the burner ports. The ﬂ ame may not

appear yellow immediately; allow 15 to 30 minutes for the ﬁ nal ﬂ ame colour to be

established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER!

11.7 restricting vertical vents

11.8 venturi adjustment

Vertical installations may display a very active ﬂ ame. If this appearance is not desirable, the vent exit must be

restricted using a restrictor vent kit. Refer to the “replacement parts” section of the owner’s manual for the

appropriate kit. This will reduce the velocity of the exhaust gases, slowing down the ﬂ ame pattern and creating a

more traditional gentle ﬂ ame appearance. Speciﬁ c instructions are included with the kit.

Air

Shutter

Opening

Venturi

Burner

VENTURI ADJUSTMENT CHART

NG 1/16" (1.5mm)

P 1/8" (3.2mm)

It is important that the oriﬁ ce is securely inserted into the venturi.

note:

VENTURI ADJUSTMENT CHART

NG 1/16" (1.6mm)

P 1/4" (6.4mm)

BL36-1

BL46

AIR SHUTTER

ACCESS PLATE

An air shutter access plate has been provided for initial ﬂ ame appearance setup. It becomes more difﬁ cult to

adjust once the appliance has been ﬁ nished.

note:
