electrical information
6.5 battery back-up installation
Ensure the gas and electrical power to the appliance is turned off.
Appliance may be hot, do not service until the appliance has cooled.
!
WARNING
A. Before beginning installation, turn off the gas and disconnect the electrical power supply from the
appliance.
B. Locate the battery housing supplied in the manual baggie.
C. Install four “AA” alkaline batteries (not supplied) into the battery housing, ensure the positive and negative
ends correspond with those identifi ed on the holder. (To open the battery housing, slide the back piece
upwards and off of the battery housing).
D. Remove the safety barrier to easily access the control compartment.
E. Attach the wire (on connector) labelled “BATTERY” from the wiring harness, located in the control
compartment of the appliance, to the battery housing.
F. Place the battery housing into the control compartment, ensure that the battery housing is placed in a
clean and easily accessible location.
G. Reinstall the safety barrier. The safety barrier must be installed at all times during the appliance operation.
H. Turn the gas and electrical power back on to begin operating the appliance.

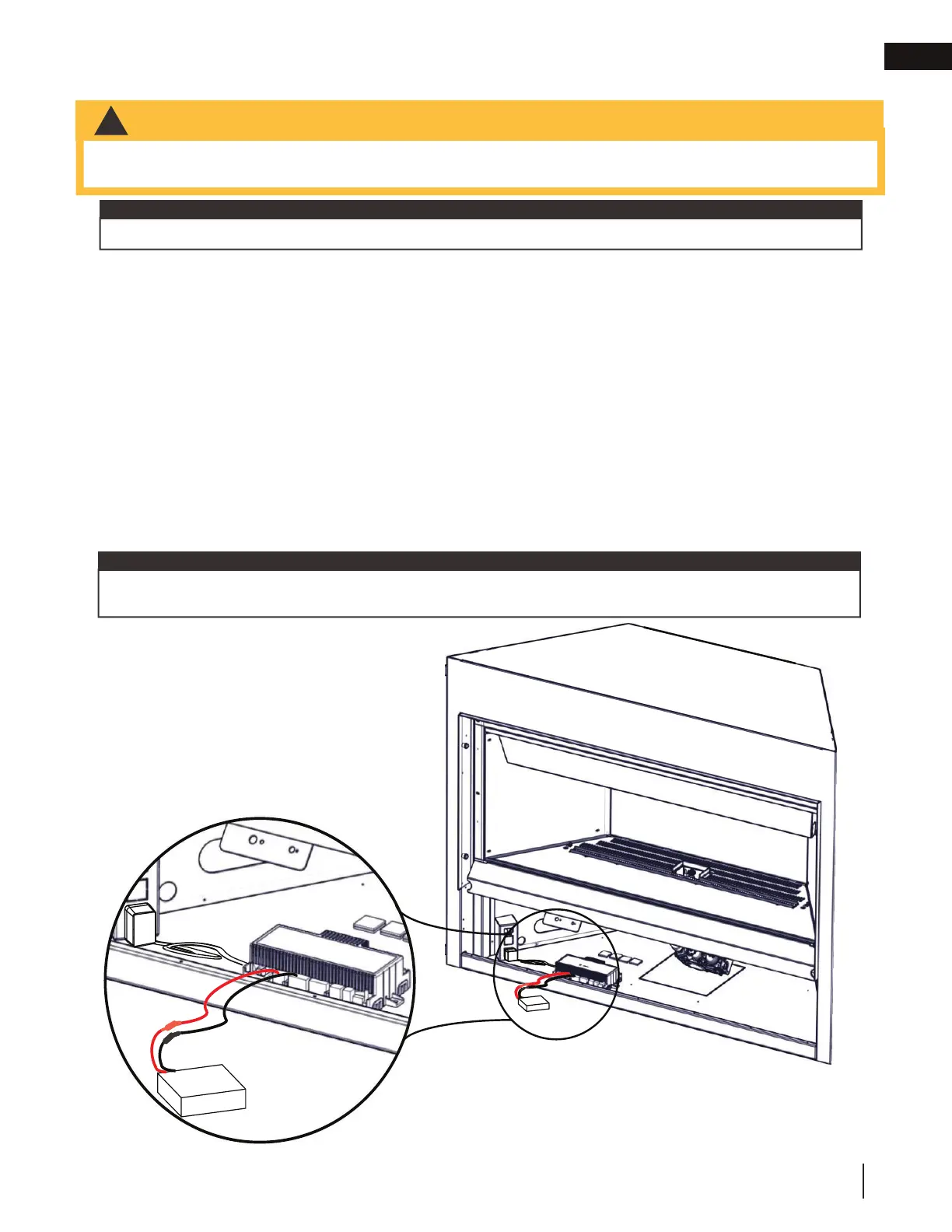

Control module
Battery housing
Red wire
Black wire
In the event of a power failure, your appliance can be operated using the supplied battery back-up.
note:
Once the power has been restored, remove the batteries from the holder. The system will drain the batteries if
they are left in the battery holder.
