W415-2757 / B / 01.09.20
EN
34
venting installation
It is necessary to hard wire this appliance.
This appliance must be electrically connected and grounded in accordance with local codes. In the absence of
local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA 70-1996 National
Electrical Code in the United States.
L1 (Black)
L2
(White)
Cable connector
Electrical box
cover
Ground
(Green)
Screw
Electrical
box
Wire nuts
(Black)
Ground
(Green)
(White)
3 prong
receptacle
6.0 electrical information

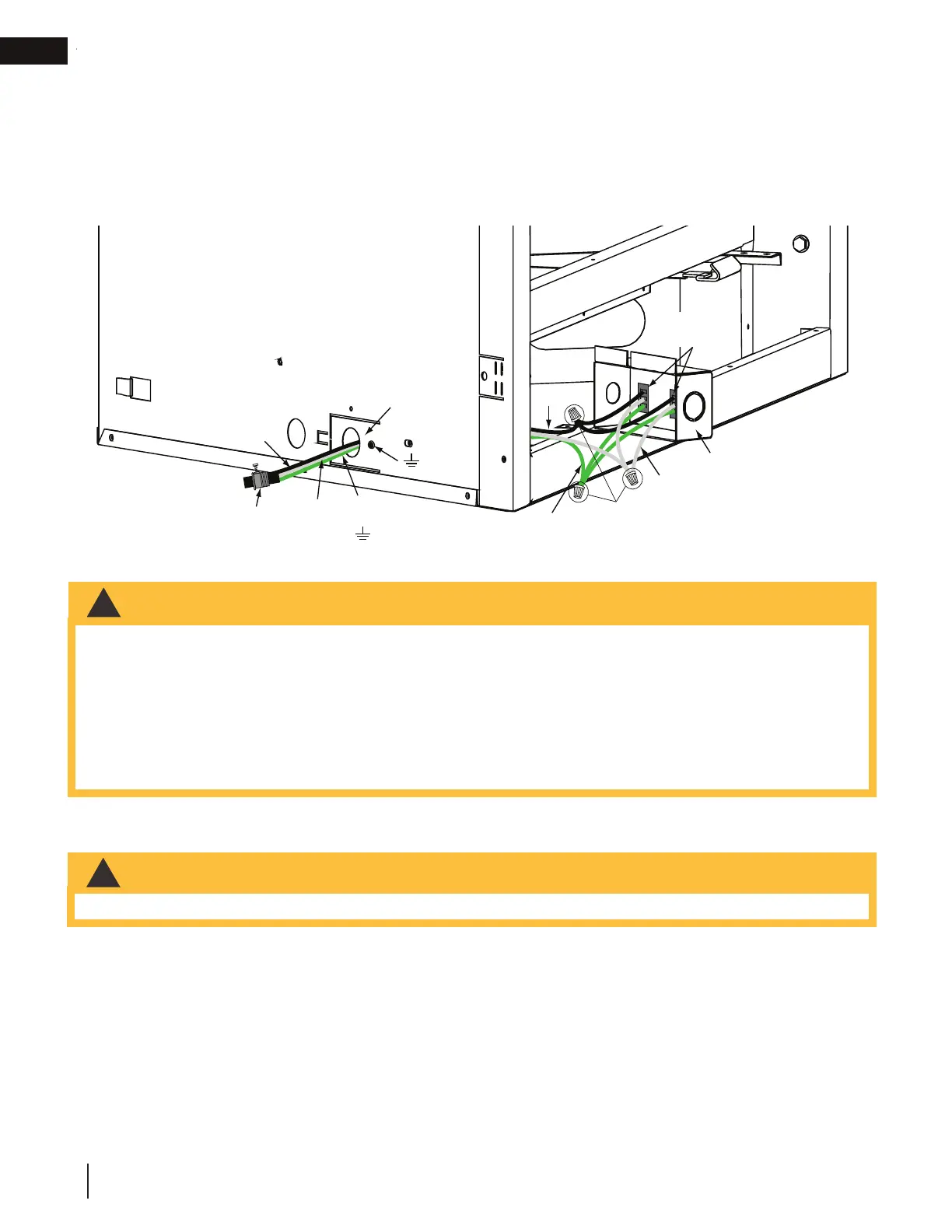

6.1 hard wiring connection
6.2 receptacle wiring diagram
!
WARNING
• Do not connect either the wall switch or gas valve directly to 110 volt electricity.
For ease of accessibility, an optional remote wall switch may be installed in a convenient location. Route a 2
strand, solid core millivolt wire from the valve to the wall switch. The recommended maximum lead length depends
on wire size:
WIRE SIZE MAX. LENGTH
14 gauge (1.8mm) 100 feet (30.5m)
16 gauge (1.5mm) 60 feet (18.3m)
18 gauge (1.2mm) 40 feet (12.2m)
Disconnect the existing wires from terminals 1 and 3 (from the ON/OFF switch) and replace with the leads from
the wall switch.
6.3 electronic wiring diagram
!
WARNING
• Do not use this appliance if any part has been under water. Call a qualifi ed service technician immediately to
have the appliance inspected for damage to the electrical circuit.
• Risk of electrical shock or explosion. Do not wire 110V to the valve or to the appliance wall switch. Incorrect
wiring will damage controls.
• All wiring should be done by a qualifi ed electrician and shall be in compliance with local codes. In the
absence of local codes, use the current CSA22.1 Canadian Electric Code in Canada or the current National
Electric Code ANSI/NFPA NO. 70 in the United States.
• Always light the pilot whether for the fi rst time or if the gas supply has run out, with the glass door opened or
removed.
6.4 optional wall switch
