Chapter 4 VirtualBench-Logger
Getting Started with VirtualBench 4-6 www.ni.com

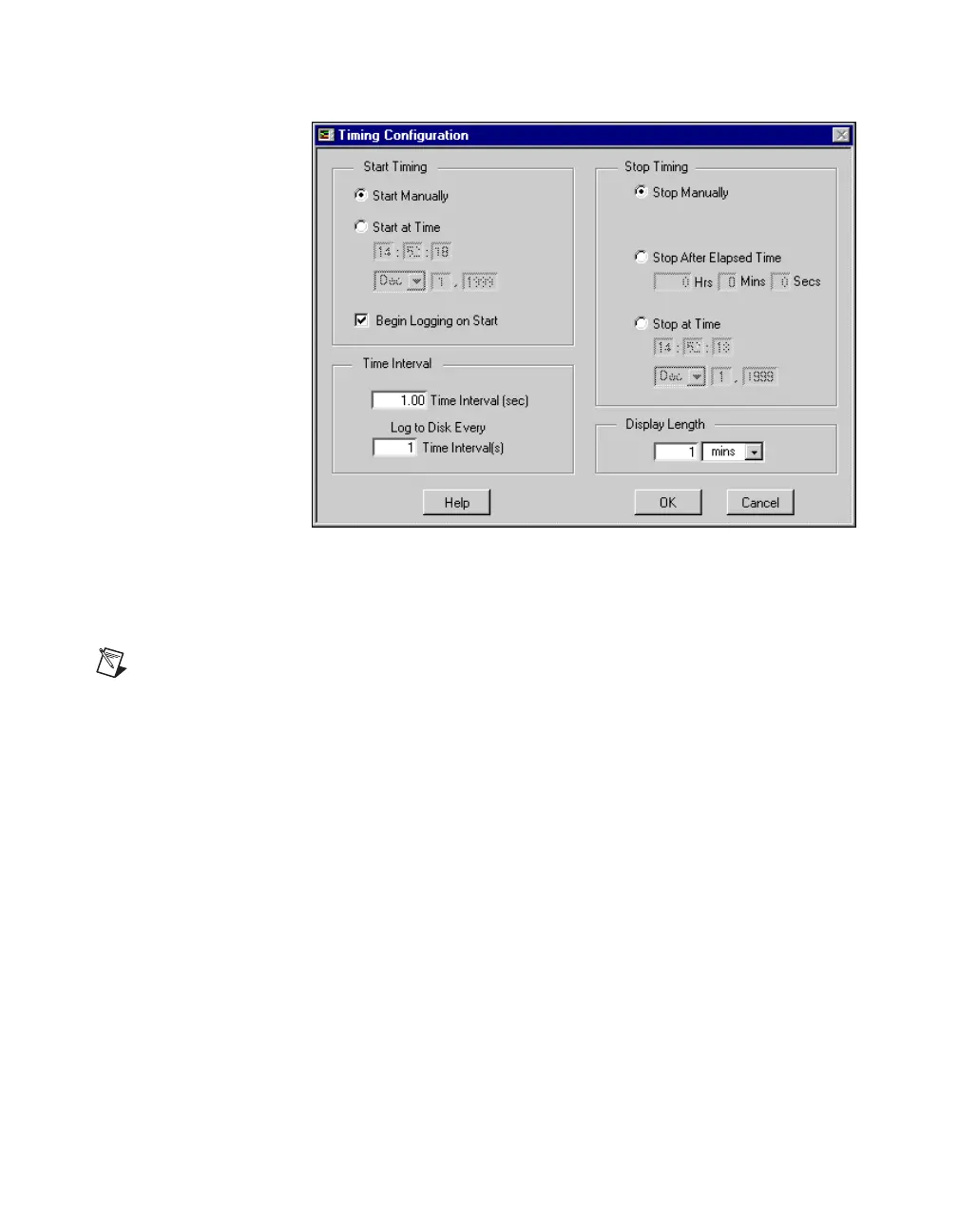

Figure 4-4. Timing Configuration Dialog Box
g. Click OK in the Logger Settings dialog box to return to the front
panel.
Note Refer to the VirtualBench-Logger Online Reference for more information about
configuring VirtualBench-Logger for your specific application.
3. Select the channels you want to display on the strip chart using the
channel select control.
4. Click the right or left Y-axis controls to select which channel’s Y-scale
you want to display on the strip chart.
5. Click Start in the acquire data controls area. VirtualBench-Logger
begins acquiring and logging data to disk at 1-second intervals and
displays it on the strip chart. If no data appears, check the signal
connections to your DAQ device or check the Range limits for the
channels you selected in the Logger Settings dialog box.
6. Click the Stop button to stop the acquisition.
