VirtualBench-Counter
This chapter explains the VirtualBench-Counter and how to measure a
signal with the Counter.
Launching VirtualBench-Counter
To launch VirtualBench, use the Start button in the Windows taskbar to
select Programs»VirtualBench»VirtualBench-Counter.
Front Panel Features
This section explains the features of the VirtualBench-Counter front panel,
as shown in Figure 11-1.

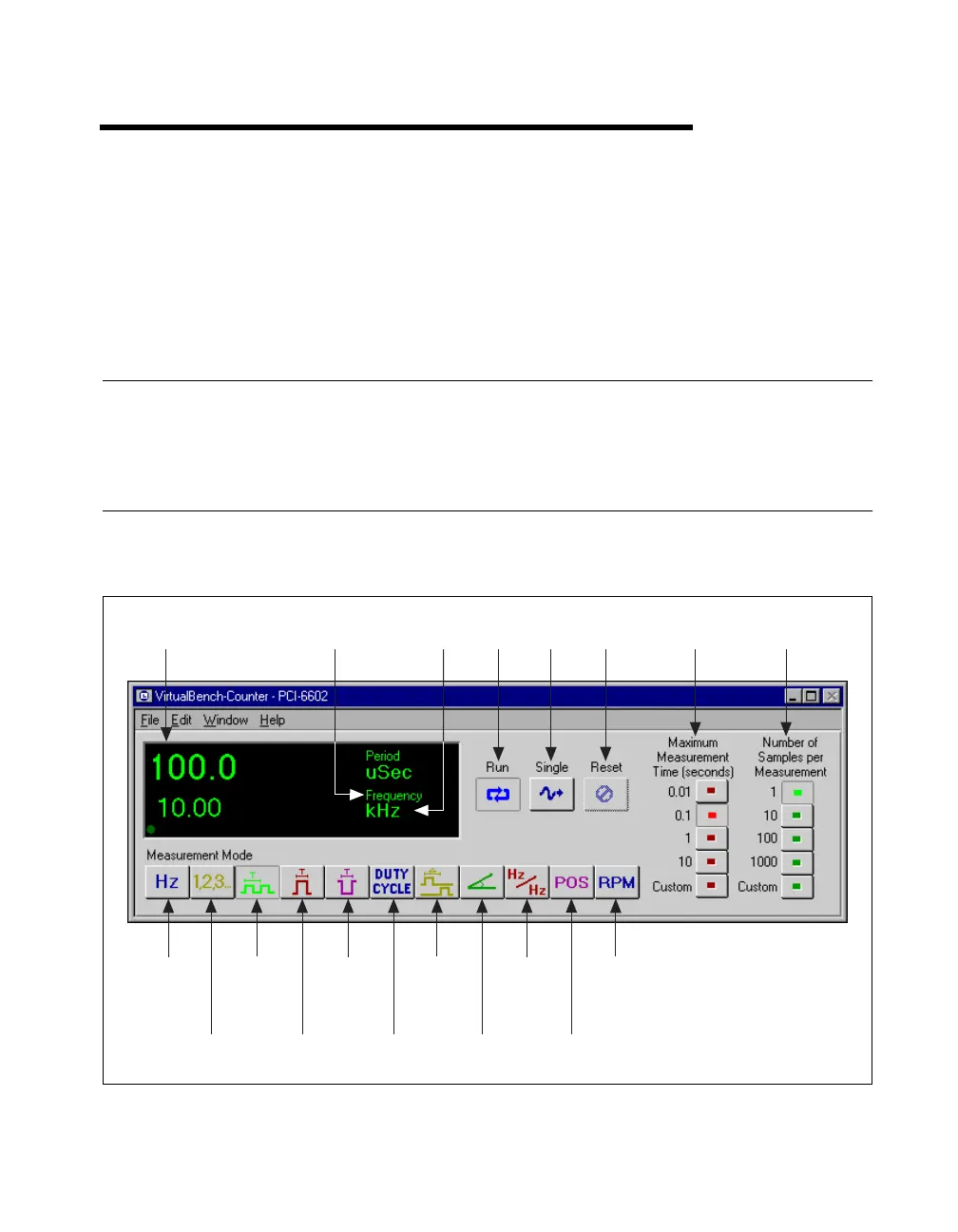

Figure 11-1.
Front Panel of VirtualBench-Counter.
Measurement
Display
Measurement
Unit
Measurement
Type Run
Single
Reset
Measurement
Time
Number of
Samples
Frequency
Period
Count/
Totalize
High Pulse
Width
Duty
Cycle
Phase
Angle
Position
SpeedFrequency
Ratio
Time
Between
Two
Cycles
Low Pulse
Width
