National Instruments VirtualBench Getting Started

Chapter 12 VirtualBench-Logic Analyzer
Getting Started with VirtualBench 12-4 www.ni.com
Acquiring Data
Complete the following steps to start acquiring data with
VirtualBench-Logic Analyzer:
1. Connect a signal to a DAQ device. Refer to the user manual of your
DAQ device for details.
2. Configure VirtualBench-Logic Analyzer.
a. Select Edit»Acquisition Settings on the front panel.

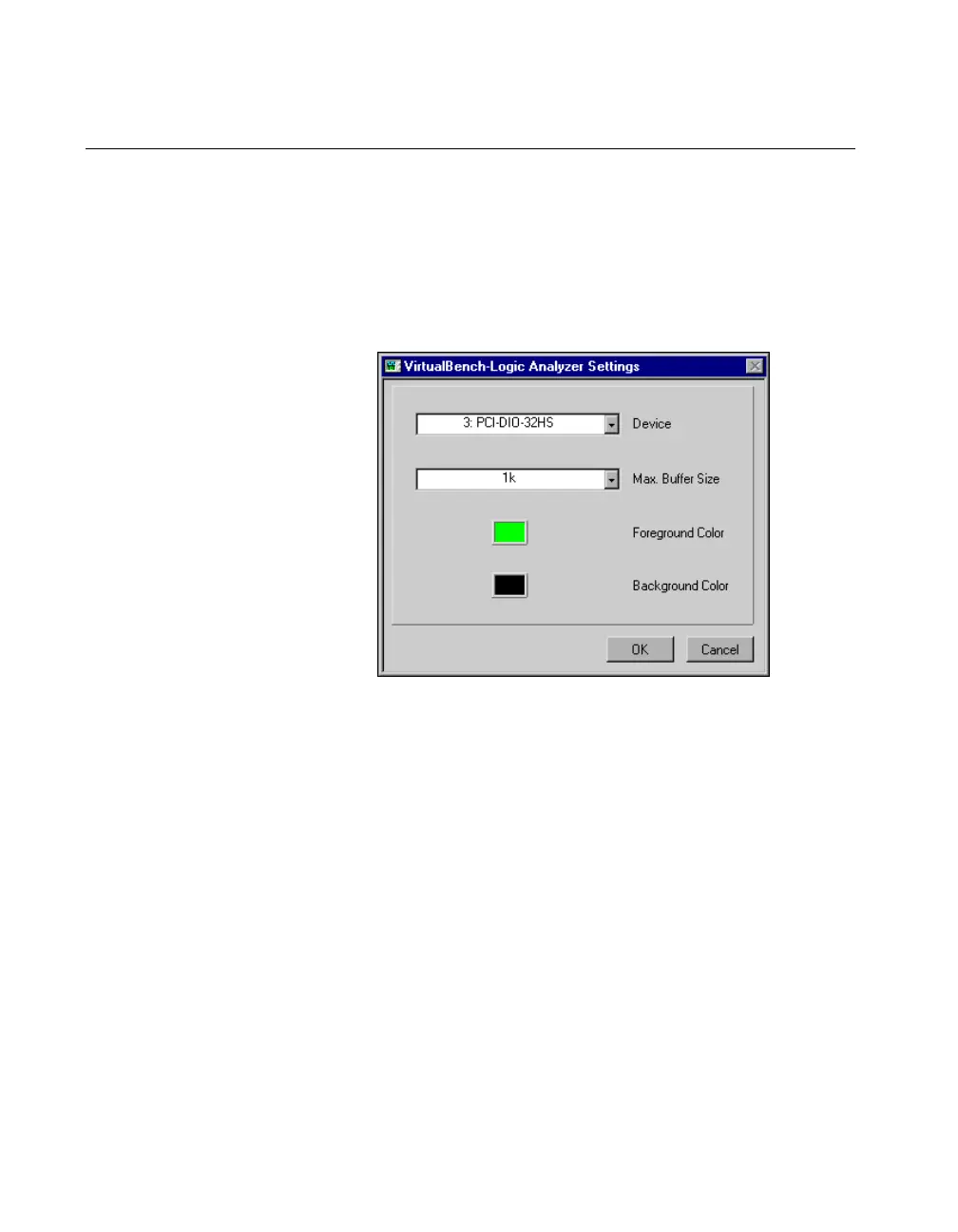

Figure 12-2.
Settings of VirtualBench-Logic Analyzer.
b. Select the National Instruments device you want to use in the
Device ring control, as shown in Figure 12-2. If your device does
not appear in the device list, make sure you have properly
configured the device using the Measurement & Automation
Explorer.
c. Click OK to use the settings.
