Chapter 7 VirtualBench-Power Supply
© National Instruments Corporation 7-3 Getting Started with VirtualBench
Note Refer to the VirtualBench-Power Supply Online Reference for more information
about the front panel items.
Turning on the Power Supply
When you launch VirtualBench-Power Supply, it always launches in a
power off state. Complete the following steps to configure
VirtualBench-Power Supply before using it:
1. Connect a load to one of the output channels of your power supply.
2. Configure VirtualBench-Power Supply.
a. Select Edit»Settings on the front panel.
b. Select the IVI instrument logical name you want to use. If you
have not already configured a logical name for your instrument,
VirtualBench-Power Supply has already created one for you with
the same name as the virtual instrument installed in your system.
Refer to Chapter 4, Configuring Your System, of the IVI Driver
Library User Manual for more information about changing items
to which another item refers.
c. Select the channel you want to use, as shown in Figure 7-2.

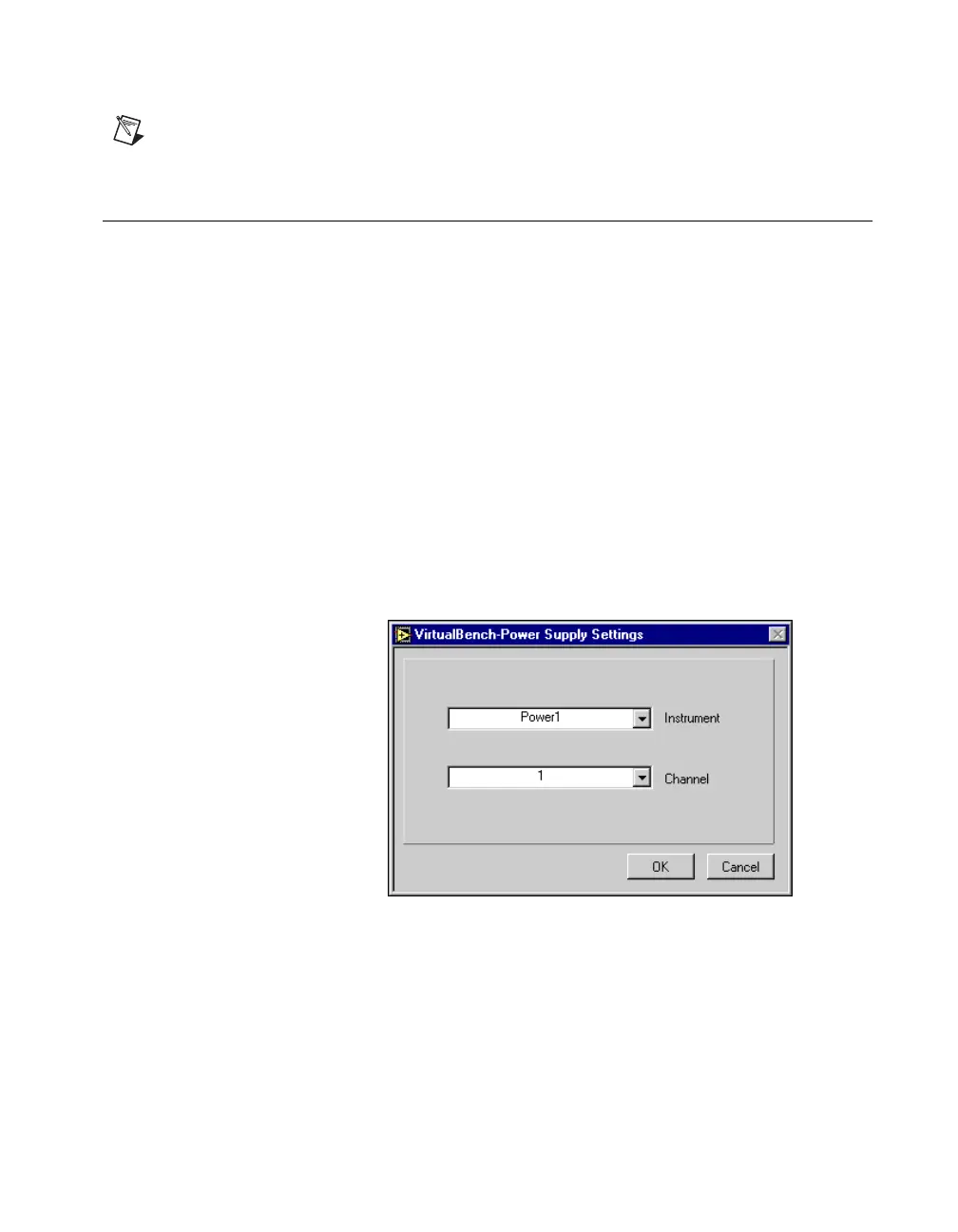

Figure 7-2. Power Supply Settings Configuration
d. Click OK to use these settings.
