Chapter 7 VirtualBench-Power Supply
Getting Started with VirtualBench 7-4 www.ni.com
Complete these steps to generate a DC power signal:
1. Click the Volts DC button to select DC volts mode, as shown in
Figure 7-3.

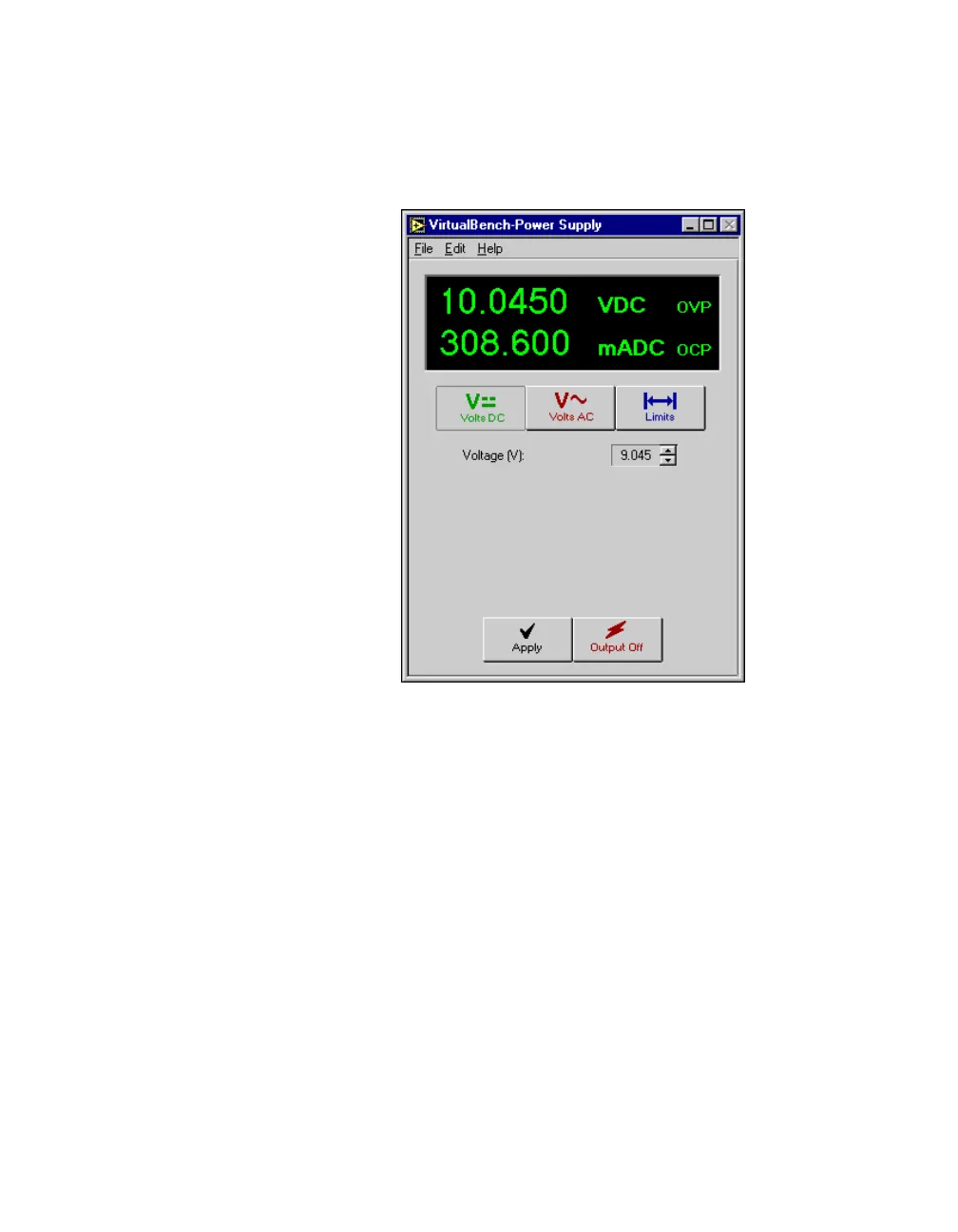

Figure 7-3. Front Panel with Volts DC Button Selected
2. Enter a voltage in the Voltage control.
3. Click Apply to commit to the change. If a red error button appears in
the display window, click the button to display the cause of the error.
Adjust the voltage level if necessary.
4. Click Output to enable the power supply.
