(2) BOOTH OUT section: The BOOTH OUT connects to a second P.A., typically for use on stage.
For more information, refer to section
4.5.2, BOOTH OUT Section.
(3) AUX section: The
AUX section connects a microphone and a line level audio device. For
more information, refer to section
4.5.3, AUX Section.
(4) Kensington Lock slot: This slot attaches a Kensington lock for protecting your device against
theft. For more information, refer to section
4.5.4, Kensington Lock Slot.
(5) USB connector: The USB connector connects your device to your computer. For more infor-
mation, refer to section
4.5.5, USB Connector.
(6) POWER section: The
POWER section attaches the power supply and switches the S5 on and
off. For more information, refer to section
4.5.6, POWER Section.
For technical details about all the connections see chapter
9, Technical Specification.

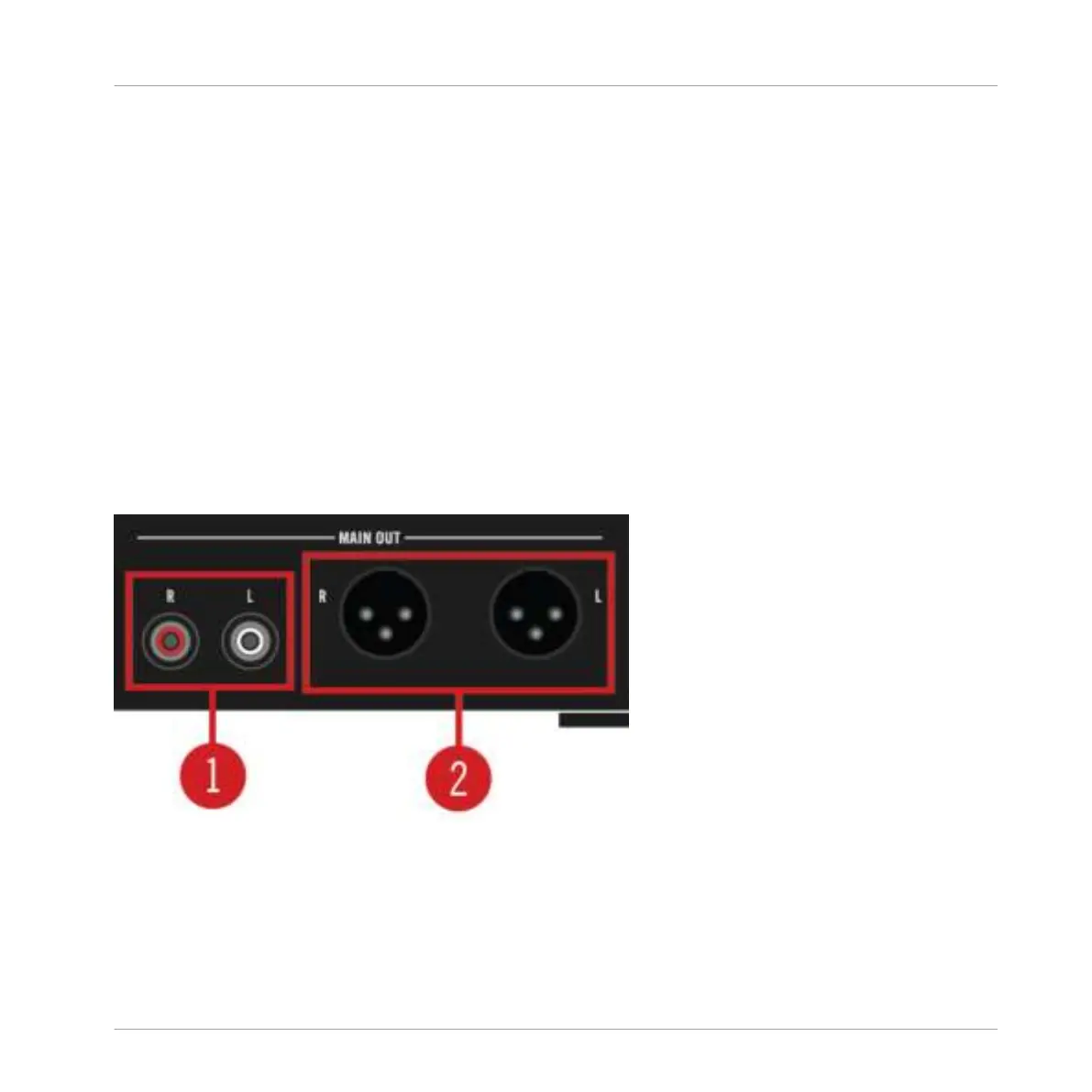

4.5.1 MAIN OUT Section
MAIN OUT Section
The
MAIN OUT section offers two sets of output sockets:
(1) Unbalanced RCA: connect the RCA outputs to practice with your home stereo or to another
DJ mixer or recording device.
Hardware Reference
The Rear Panel
TRAKTOR KONTROL S5 - Manual - 183
