5.2.3 OUTPUT Section

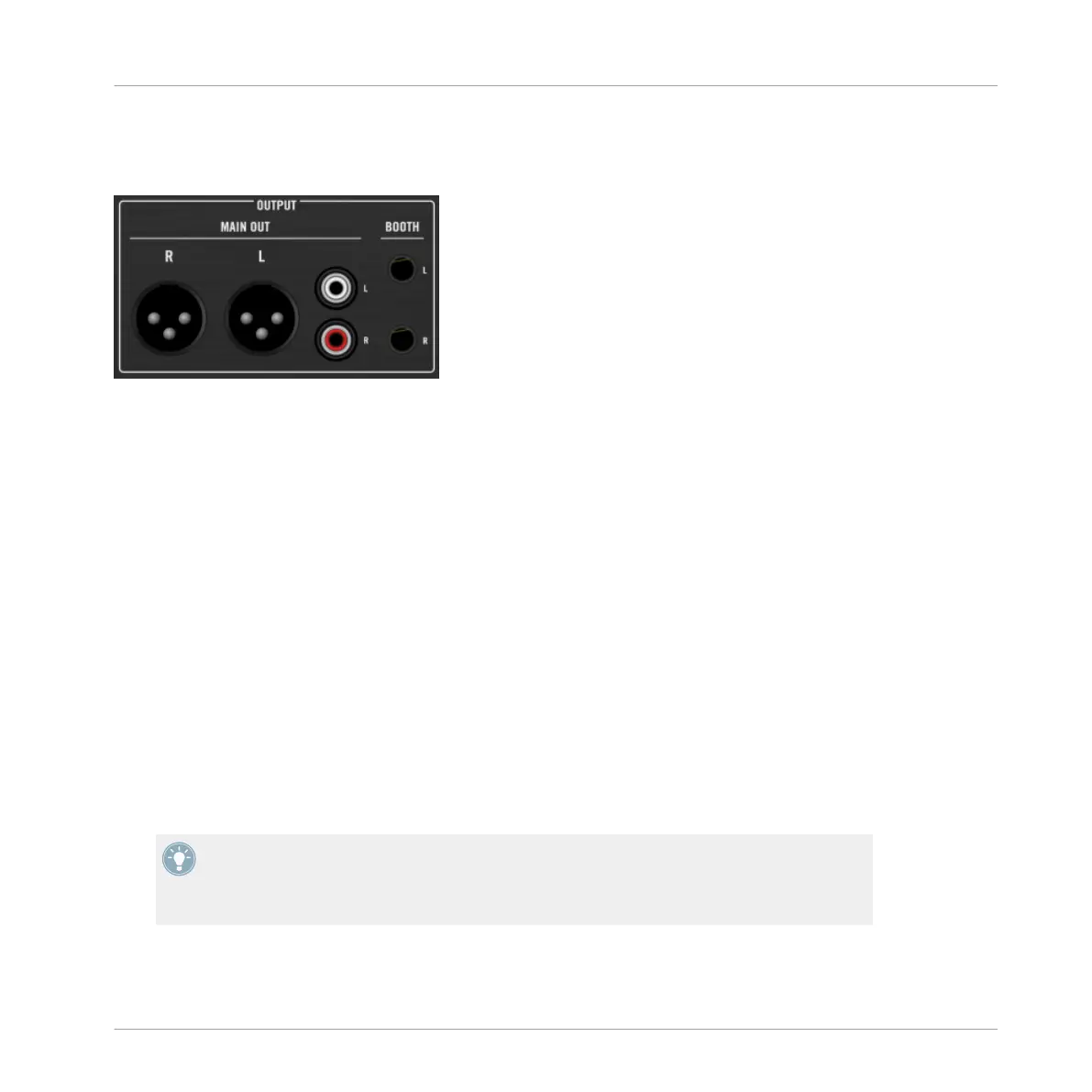

The OUTPUT section on the rear panel.
The Z2's OUTPUT section offers a number of different output connections which cover just
about any typical setup situation. Both MAIN OUT outputs are controlled by the MASTER knob
on the top panel. The BOOTH outputs are controlled by the BOOTH knob on the top panel.
MAIN OUT
▪ Balanced XLR: The balanced XLR outputs allow you to connect professional-grade cables
which are much more resistant to electrical interferences than unbalanced cables, espe-
cially over longer distances.
▪ Unbalanced RCA: The RCA outputs give you extra flexibility for connecting to another mixer
or recording device.
BOOTH
The quarter-inch balanced BOOTH outputs give you a pair of separate outputs, useful for moni-
toring for example. You can adjust the level of the BOOTH output with the BOOTH knob (see
also ↑5.4.22, OUTPUT Section), located just below the MASTER knob, in the upper right cor-
ner or the Z2's top panel.
Use the BOOTH outputs for stage (or DJ booth) monitor speakers or for sending your sound
to another musician on stage (for live performance effects, for example). Since you can in-
dependently adjust the levels of both the MAIN/MASTER and the BOOTH outputs, you have
a lot of flexibility with these two sets of outputs.
TRAKTOR KONTROL Z2 Hardware Reference
Rear Panel
TRAKTOR KONTROL Z2 - Manual - 34

Native Instruments Traktor Kontrol Z2 Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	6 channels
Supported sample rates	48 kHz
Digital sound processing	24 bit
AUX in	Yes
XLR out	2
AUX out ports	1
Headphone connectivity	3.5 mm/6.35 mm
Product color	Black
USB connector type	USB Type-A, USB Type-B
AC input voltage	115 - 230 V
Power consumption	750 mA
AC input frequency	50 - 60 Hz
Minimum storage drive space	1024 MB
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Windows operating systems supported	Windows 10
