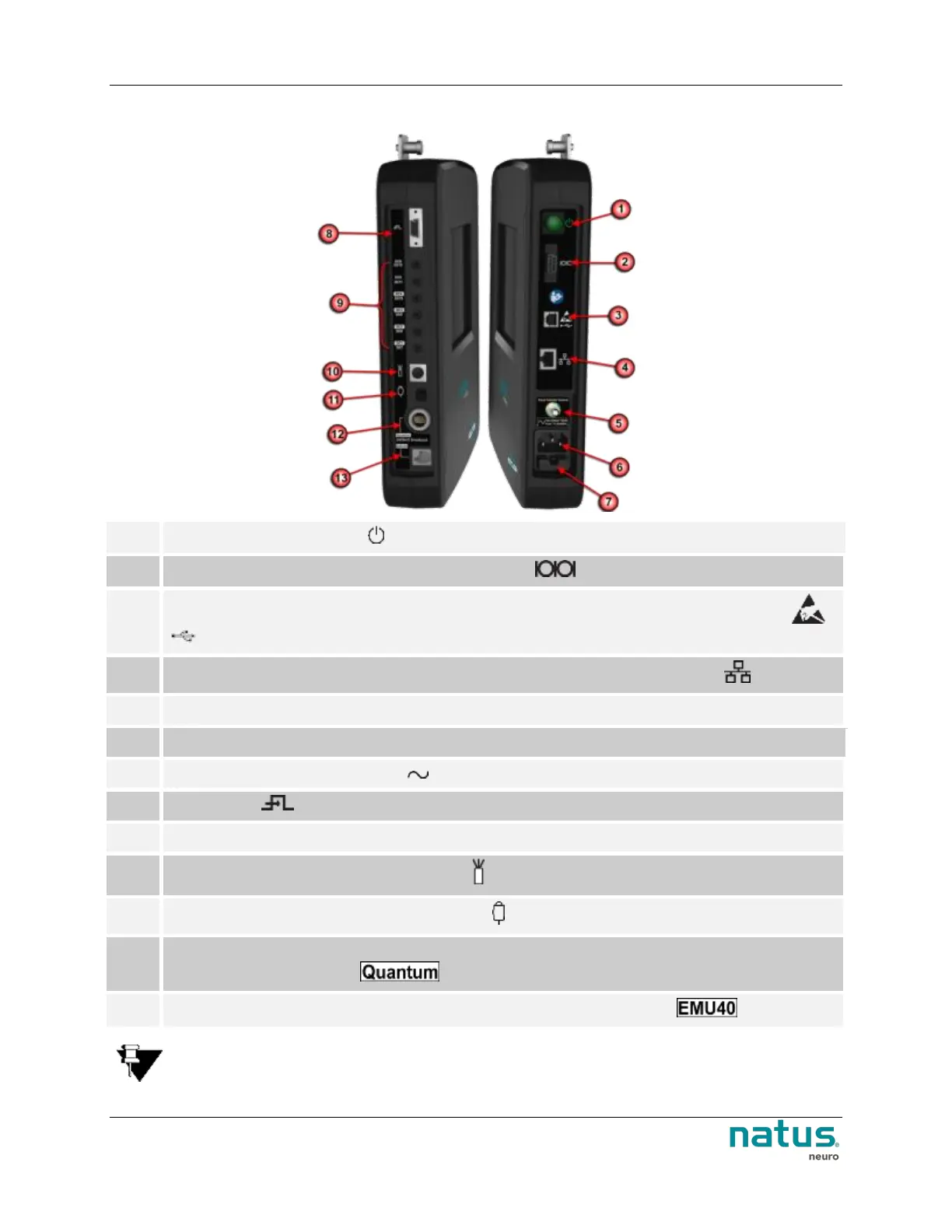

6.3. Natus Base Unit
1
Power Button. Labeled with .
2
Connects to Nicolet Cortical Stimilator. Labeled with .
3
Can be used to connect the Natus Base Unit directly to a PC and/or Laptop. Labeled with
.
4
Can be used to connect the Natus Base Unit to a system network. Labeled with .
5
Ground equipotential terminal.
6
Connects to the Natus Base Unit to the mains power supply.
7
Fuse Compartment. Labeled with: Fuse: T1.6A/250V~80VA; 100-230VAC.
8
Labeled with .
9
Can be used to connect DC signals from external devices. Labeled with DC1-DC12.
10
Photic Stimulator Connector. Labeled with .
11
Patient Event Button Connector. Labeled with .
12
Base to Breakout Main Cable Connector. Used to connect the base unit to the Quantum patient
breakout box. Labeled with .
13
Used to connect the EMU40EX breakout box (p/n 006562). Labeled with .
NOTE: Only one type of breakout box should be used at a given time. You cannot use an
EMU40EX breakout in conjunction with a Quantum breakout box.
