6.6. Quantum 64 Breakout Box

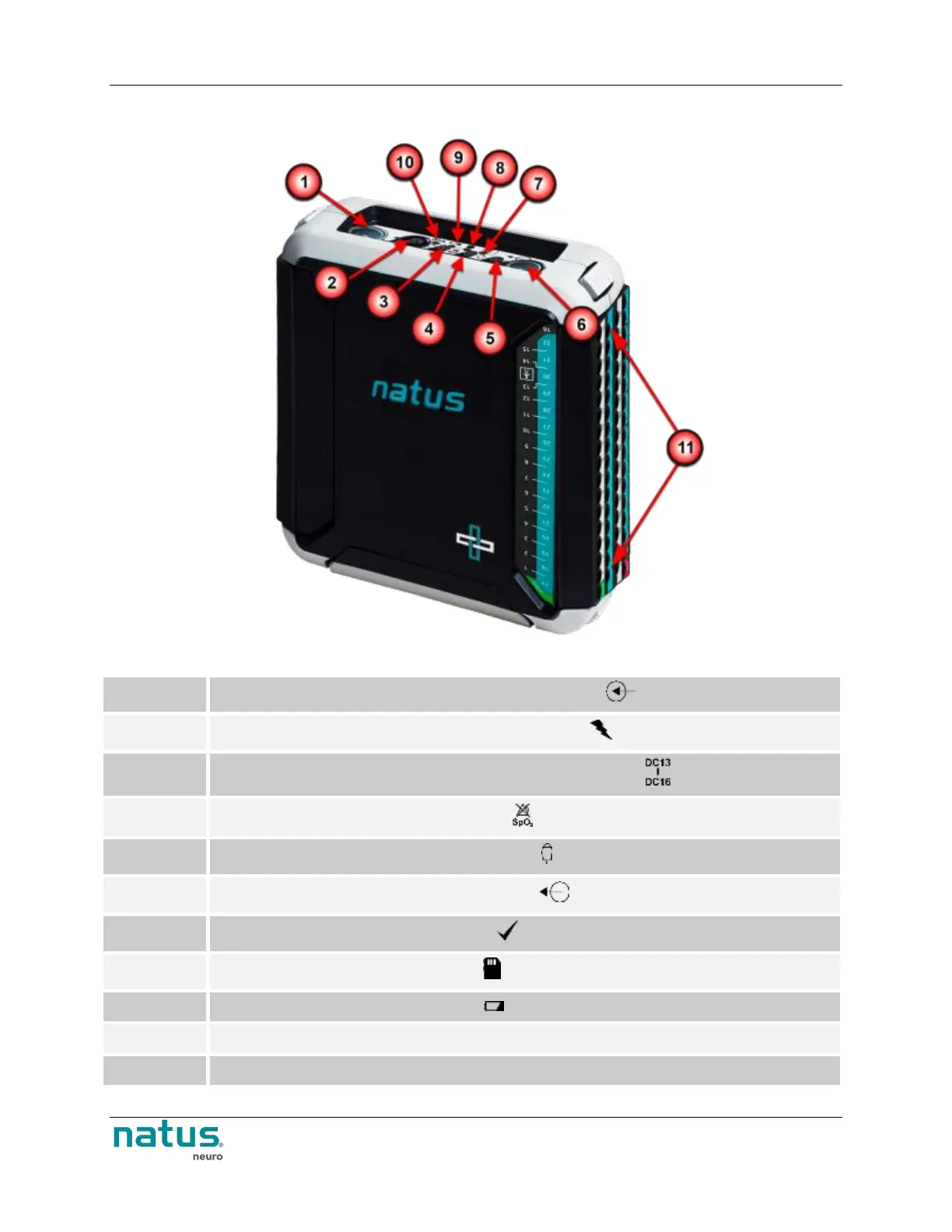

Quantum 64 breakout (64 channels max.)
1
Base to Breakout Main Cable Connection. Labeled with .
2
Cortical Stimulator Adapter Connection. Labeled with .
3
DC Inputs 13 to 16 Breakout Cable Connection. Labeled with .
4
Nonin Oximeter Connection. Labeled with .
5
Patient Event Button Connection. Labeled with .
6
This functionality is unavailable.. Labeled with .
7
Breakout Box Status LED. Labeled with .
8
Reserved for future use. Labeled with .
9
Reserved for future use. Labeled with .
10
Labeled with A. Green Indicates Power On.
11
Standard EEG Channel Inputs. Labeled numerically.
