9.9. Quantum Amplifier System Communication Mode
The following section describes how the
Quantum amplifier system is connected.
When the base unit is physically
connected to the breakout box with the
patient tether cable, the Quantum is
referred to as being in Physical
Connection Mode. In this mode, the
data is transmitted over the wired
connection to the base unit, which then
transmits the data to the computer.
The computer software will display and
store this data (see Figure 1).

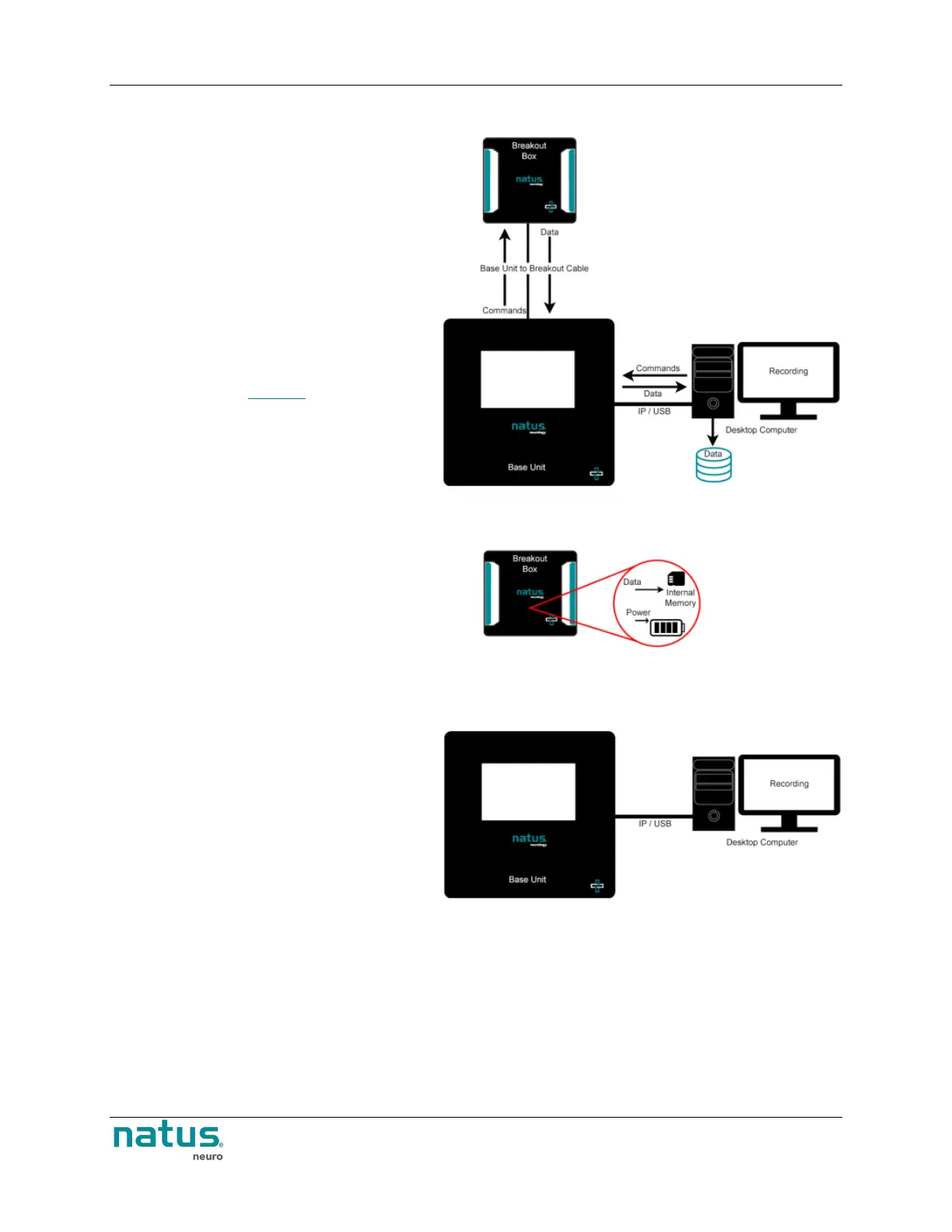

Figure 1: Physical Connection of the Quantum System
When the Base unit is physically
disconnected from the Breakout
box(es), the Quantum breakouts are
referred to as being in Physical
Disconnection Mode or in Ambulatory
Mode. In this mode, the Breakout
box(es) store the study data in the
internal memory and power is provided
by a battery.
Figure 2: Physical Disconnection of the Quantum System –
Ambulatory Mode
Ambulatory recording status is indicated on the Breakout box LED’s. Refer to section 9.10 Breakout Box
LED Indicators for more details.
