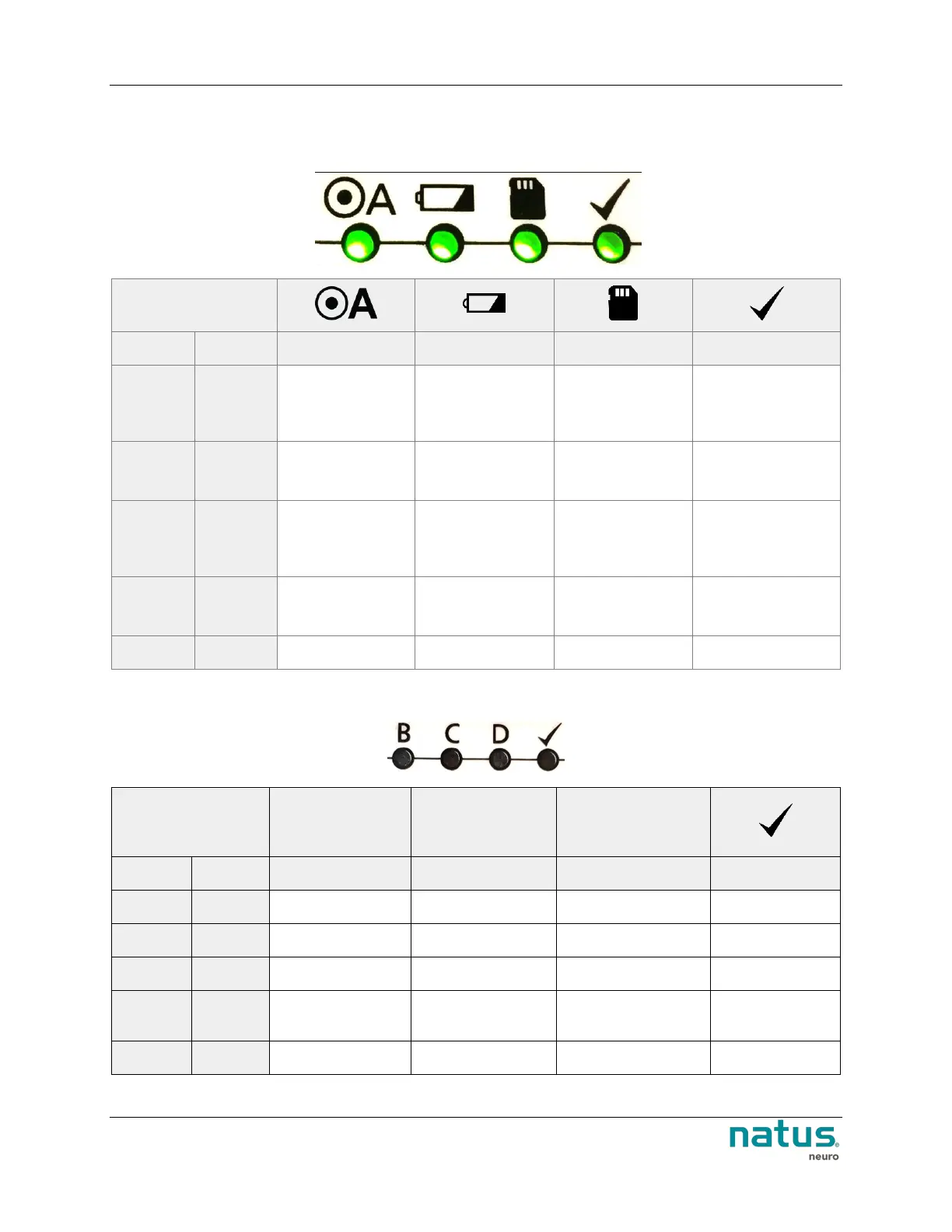

9.10. Breakout Box LED Indicators
9.10.1. Breakout MAIN indicators are shown below:
LED
Color
Status
Position A
Battery
Disk
Status (check mark)
Green
Solid
Ready
Normal Level
Not Charging/ Not
Discharging
Normal Capacity
Not Writing
Power ON and Idle
Green
Flash
Ambulatory
Normal Level
Charging/Discharging
Normal Capacity
Writing
Running Study
Yellow
Solid
DSM Armed
Critical Level
Not Charging/Not
Discharging
Critical Capacity
Not Writing
Reserved
Yellow
Flash
DSM Active
Critical Level
Charging/Discharging
Critical Capacity
Writing or Error
Breakout upgrade or Error
None
None
Not Ready
No Battery Present
No Disk Present
Power OFF
9.10.2. Breakout B indicators are shown below:
LED
B
C
D
Color
Status
Position B
Position C
Position D
Status (check mark)
Green
Solid
Ready
Reserved
Reserved
Power ON and Idle
Green
Flash
Ambulatory
Reserved
Reserved
Running Study
Yellow
Solid
DSM Armed
Reserved
Reserved
Reserved
Yellow
Flash
DSM Active
Reserved
Reserved
Breakout upgrade or
Error
None
None
Not Ready
Reserved
Reserved
Power OFF
