User & Service Manu
al
Natus Quantum Amp
lifier

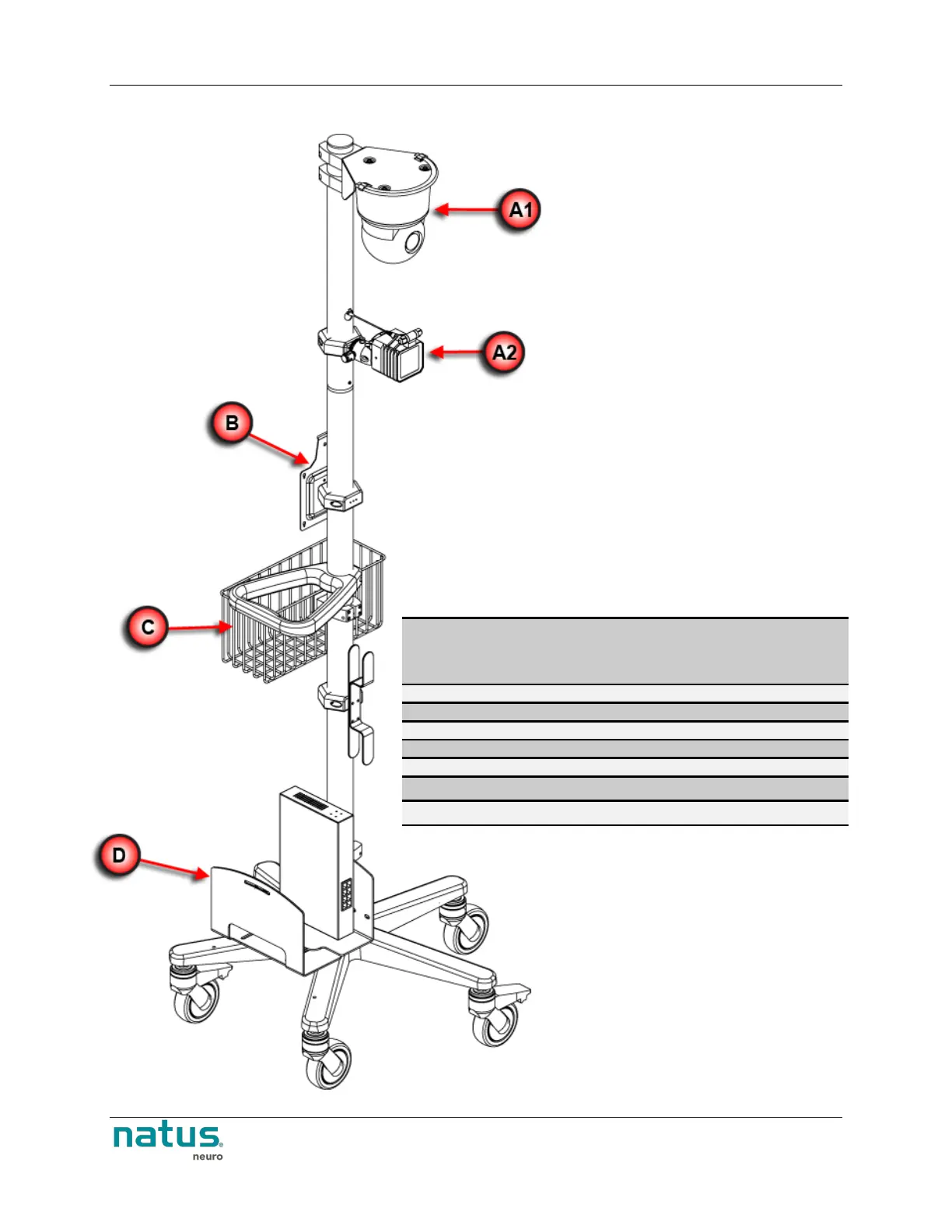

69
11.2.
Neuro
wand Cart (No
PC) Specificati
ons
Mounting
Location
Default Equipment
Equipment
Weight
[lbs]
Maximum
Load [lbs]
(including
equipment)
A1*
Video Camera
4
4
A2*
IR Illuminator
2
2
B
Amplifier Mount
5
5
C
Storage Bin
0
10
D
Isolation Transformer
23
40
Base Cart Weight
48
Total Weight
82
109
* Optional Items
69
71
Table of Contents
Default Chapter
3
Table of Contents
3
1 Getting Started
7
Quantum System Features
7
Intended Use
8
System Components
8
Essential Performance Degradation
8
Operating Principle of the Quantum Amplifier
8
Using the Manual
10
Manual Conventions
10
2 Safety & Standards Conformity
11
Standards of Compliance and Normative References
11
Declaration of Compliance for Iec 60601-1-2
13
Declaration of Compliance for Fcc
17
3 Contraindications and Warnings
18
Contraindications
18
Warnings and Cautions
18
General Warnings
18
Electrostatic Discharge (Esd) Precautions
20
Electrical Warnings and Cautions
21
Patient Environment Warnings and Cautions
22
Transportation Warnings
24
Pulse Oximeter Sensor Warnings
24
Wireless Option Warnings and Cautions
24
Conducted Immunity Warnings
24
Procedures and Warnings
25
Electrostatic Discharge (Esd) Handling
25
Conducted Immunity Procedures and Warnings
25
4 Description of Symbols
27
5 Specifications
30
6 Product Images and Description
33
Quantum Amplifier System with 128 to 256 Channels
33
Quantum 64 Amplifier System
34
Natus Base Unit
35
Quantum Breakout Boxes Main Andb
36
Quantum Breakout Main, Bottom View
37
Quantum Pin Box Options
37
Standard Numerical Pin Boxes
37
10-10/10-20 Pin Box
38
Bulk Connector Pin Boxes
39
Quantum 64 Breakout Box
40
Quantum 64 Pin Box Options
41
Standard Numerical Pin Boxes
41
Bulk Connector Pin Box
41
7 Setup
42
Connecting the Natus Base Unit
42
Potential Equalization Conductor
42
Connecting the Breakout Boxes to the Natus Base Unit
42
Connecting to the Secondary Breakout Box
43
Removing the Connections
43
Connecting the Standard or Bulk Connector Pin Boxes to the Breakout Box
44
Quantum 10-10/10-20 Pin Box
44
Quantum Amplifier System Connection Diagram
47
Quantum 64 Amplifier System Connection Diagram
48
8 Configuring the Natus Base Unit
49
Setting the Ip Address
49
Touchscreen Icons
52
9 Amplifier Usage and Features
54
Getting Started
54
Placement of the Operator and Patient
54
Creating Acquisition Profiles for Studies with Quantum or Quantum 64 Breakouts
54
Beginning a Study
55
Recording in Ambulatory Mode
57
Connecting the Nicolet Cortical Stimulator
60
Powering down the System
61
Adding the Quantum or Quantum 64 Breakout Box(Es) to the Modular Pouch
62
Quantum Amplifier System Communication Mode
64
Breakout Box Led Indicators
65
Breakout Main Indicators Are Shown below
65
Breakout Bindicators Are Shown below
65
10 Animal Research
66
Independent References Mode Versus Common Reference Mode
66
Connecting Multiple Subjects to the Quantum or Quantum 64
66
Setting up Neuroworks for Multiple Subject Connections
67
11 Transport System Specifications and Maintenance
69
Xltek Trolley Specifications
69
Neurowand Cart (Nopc) Specifications
70
Roll Stand Specifications
71
Natus Ergojust Cart Specifications
71
Maintenance
72
Warnings and Cautions
72
12 Electrical Input and Isolation Transformer Details
73
13 Pulse Oximeter
74
Pulse Oximeter Specifications
74
Pulse Oximeter Instruction for Use
74
Pulse Oximeter Accessories
74
Available Nonin Oximetry Sensors
75
Pulse Oximeter Precautions and Warnings
75
14 Maintenance, Cleaning, & Disposal
76
Quantum Amplifier Pouch
76
Recommendations
76
Disposal
77
15 Troubleshooting
78
Problems with Signal Quality
79
16 Accessories & Replacement Parts List
80
17 Getting Help
83
18 Appendix A
84
Digital Trigger Input Port Wiring Diagram
84
Appendix A
84
19 Appendix B
86
Bulk Connector Pin Box Input
86
Bulk Connector Pin Box Input Wiring Diagram
86
Appendix B
86
20 Index
88
