User & Service Manual Natus Quantum Amplifier
35

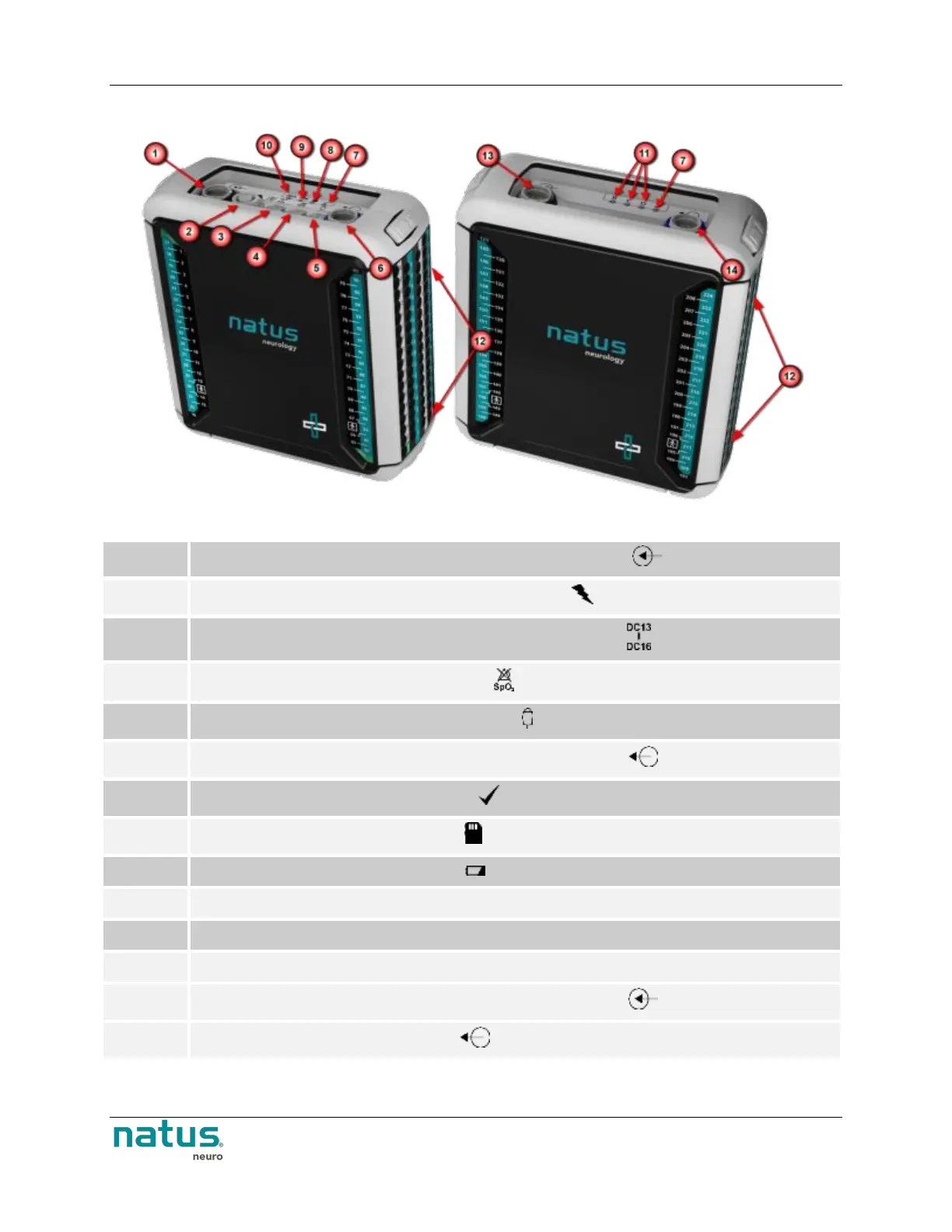

6.4. Quantum Breakout Boxes MAIN and B
Quantum breakout MAIN, channels 1 to 128
Quantum breakout B, channels 129 to 256
1
Natus Base to Breakout Main Cable Connection. Labeled with .
2
Cortical Stimulator Adapter Connection. Labeled with .
3
DC Inputs 13 to 16 Breakout Cable Connection. Labeled with .
4
Nonin Oximeter Connection. Labeled with .
5
Patient Event Button Connection. Labeled with .
6
Breakout Main to Breakout B Cable Connection. Labeled with .
7
Breakout Box Status LED. Labeled with .
8
Reserved for future use. Labeled with .
9
Reserved for future use. Labeled with .
10
Labeled with A. Green Indicates Power On.
11
LED Indicator based on breakout boxes attached. Labeled with B, C, or D.
12
Standard EEG Channel Inputs. Labeled numerically.
13
Breakout B to Breakout Main Cable Connection. Labeled with .
14
Reserved for future use. Labeled with .
