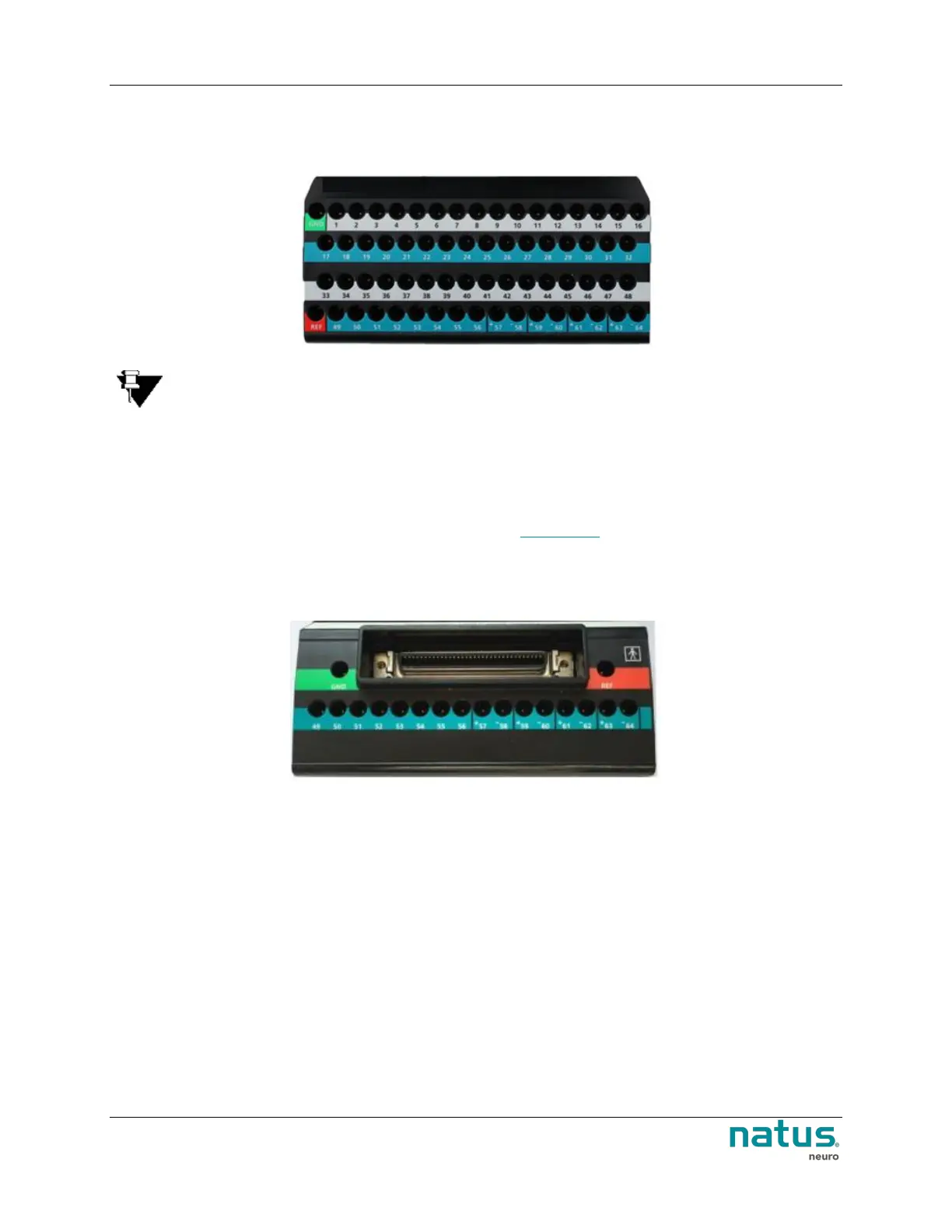

6.7. Quantum 64 Pin Box Options
6.7.1. Standard Numerical Pin Boxes
NOTE: Only one pinbox can be used with the Quantum 64 breakout..
6.7.2. Bulk Connector Pin Box
Bulk connector Pin Boxes feature a single multi-pin connector for all 64 channel, and are designed for
convenient connection of head caps with up to 64 electrodes. Other electrodes such as Subdermal grids
may be connected too. Connector Pin layout is available in Appendix B.
The last 16 inputs of each 64 channel pin box are also available as individual touch proof inputs. These
may be used for connecting additional electrodes and sensors with head caps with less than 64 channels
connected to the bulk connector.
