Connections

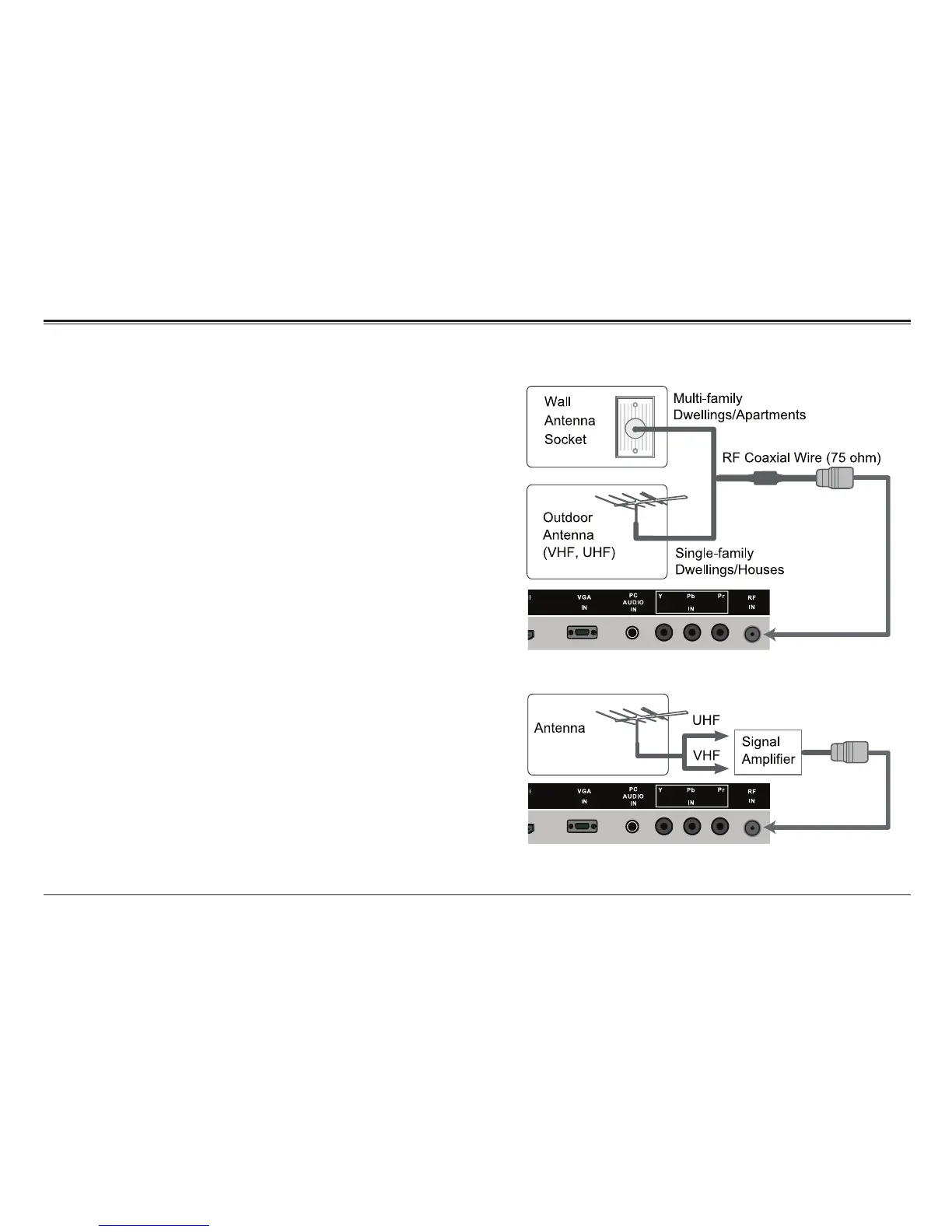

RF In (TV Source Mode)
Connection for 75 ohm coaxial audio/video signals. Set
the source mode to TV to view this connection on the
display screen.
• Connect TV RF sources to the RF In connector. In
poor signal areas, it may be necessary to install a
signal amplier as shown in the picture.
• Flat antenna cables require a 300-75 ohm conver-
sion adapter to work with the RF In connector.
• If signal needs to be split for two TVs, you may use
an antenna signal splitter.
⚠⚠
Disconnect power before making this and
any other connection.
