Naxa NTD-2255 - CVBS In (AV Mode)

Page 22 Naxa Electronics
CVBS In (AV Source Mode)
Connection for composite video signals. Set the source
mode to AV to view this connection on the display
screen.
The composite video connection is capable of accept-
ing signals from standard-denition video sources
(e.g., cable/satellite boxes, DVD players, VCRs, etc).

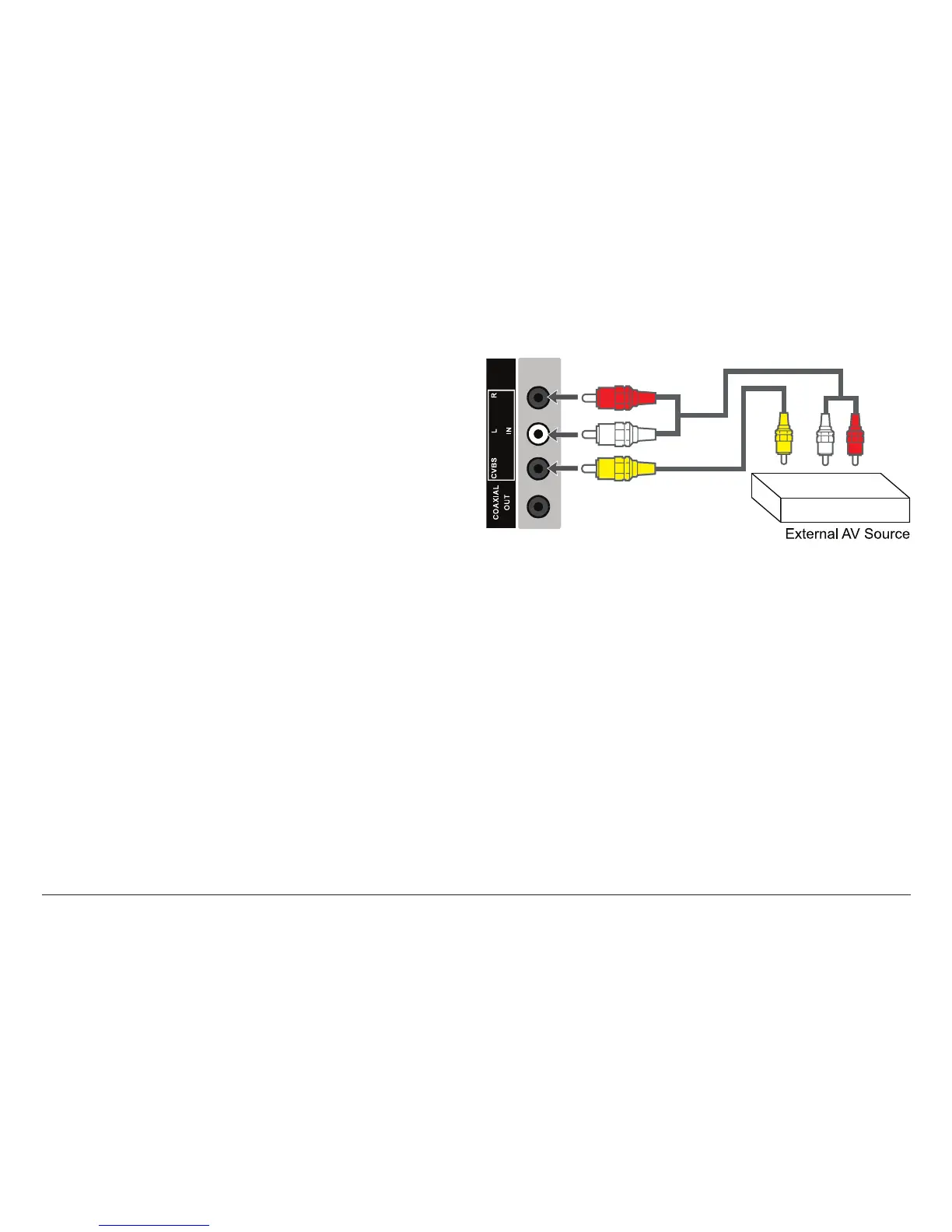

• Make the CVBS video connection with the yellow
plug of the supplied A/V cable.
• Make the L/R audio connection with the red and
white plugs of the supplied A/V cable.
⚠L
The L/R audio connectors are shared with
the YPbPr component video connectors.
⚠⚠
Disconnect power before making this and
any other connection.
