Getting Started with MAXserver Access Servers

0038

Pin Assignments

Ethernet Transceiver Cable

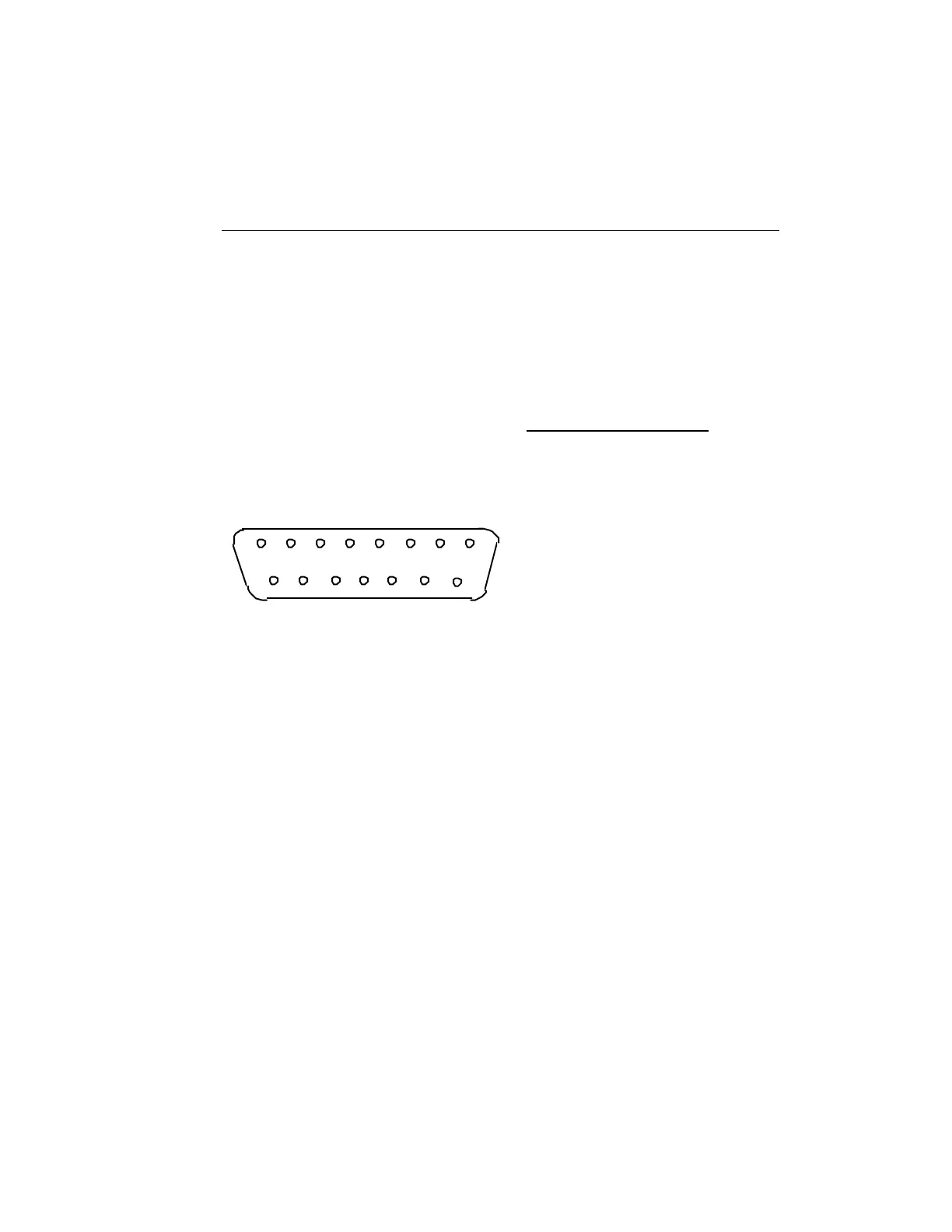

Figure 25 shows the standard 15-pin AUI connector signal assignments.

Signal

Chassis Ground

Collision +

Transmit +

Chassis Ground

Receive +

Power Return

Not Used

Collision -

Transmit -

Chassis Ground

Receive -

Power (+12Vdc)

Chassis Ground

Not Used

Figure 25 - Ethernet 15-Pin AUI Connector Assignments

10Base-T Connector

Figure 12 shows the standard 10Base-T (RJ-45 jack) connector signal

assignments.
