NBase-Xyplex MAXserver 1608A - RJ-45 and DB-25 Pins; Figure 26 - 10 Base-T Connector Assignments; Figure 27 - RJ-45, DB-25 Pins

Getting Started with MAXserver Access Servers
0038
79
1 2 3 4 5 6 7 8
Pin
1
2
3
6
Signal
TD+
TD-
RD+
RD-
Figure 26 - 10Base-T Connector Assignments
RJ-45 and DB-25 Pins

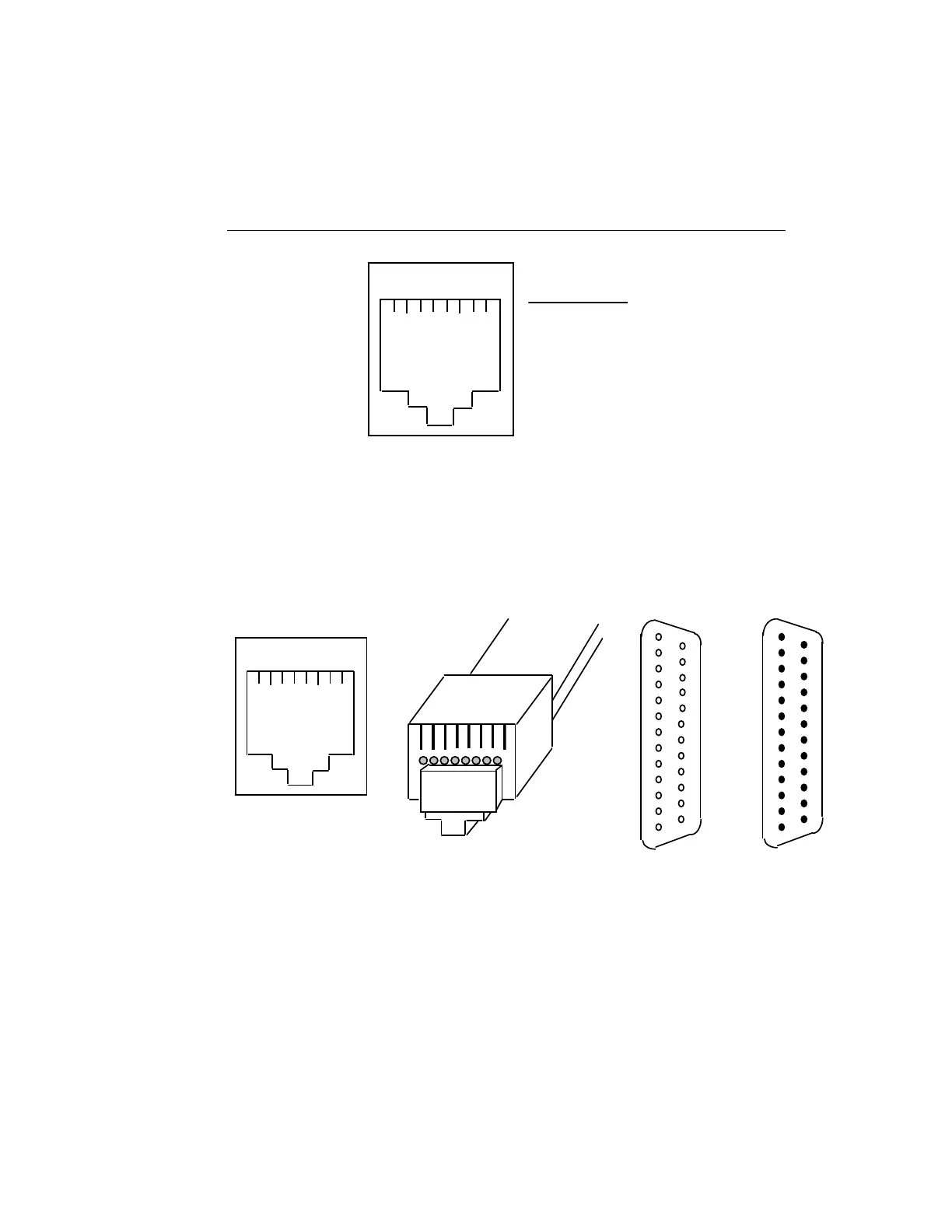

Figure 27 shows RJ-45 and DB-25 pin assignments.
1 2 3 4 5 6 7 8
RJ-45 Jack
(Female)
1
13
25
14
1
13
14
25
DB-25
(Female)
DB-25
(Male)
8 7 6 5 4 3 2 1
RJ-45 Plug
(Male)
Figure 27 - RJ-45, DB-25 Pins
