3. Setting Up Windows Server 2008 R2
Express5800/R320c-E4, R320c-M4, R320d-E4, R320d-M4 Installation Guide (Windows Server 2008)

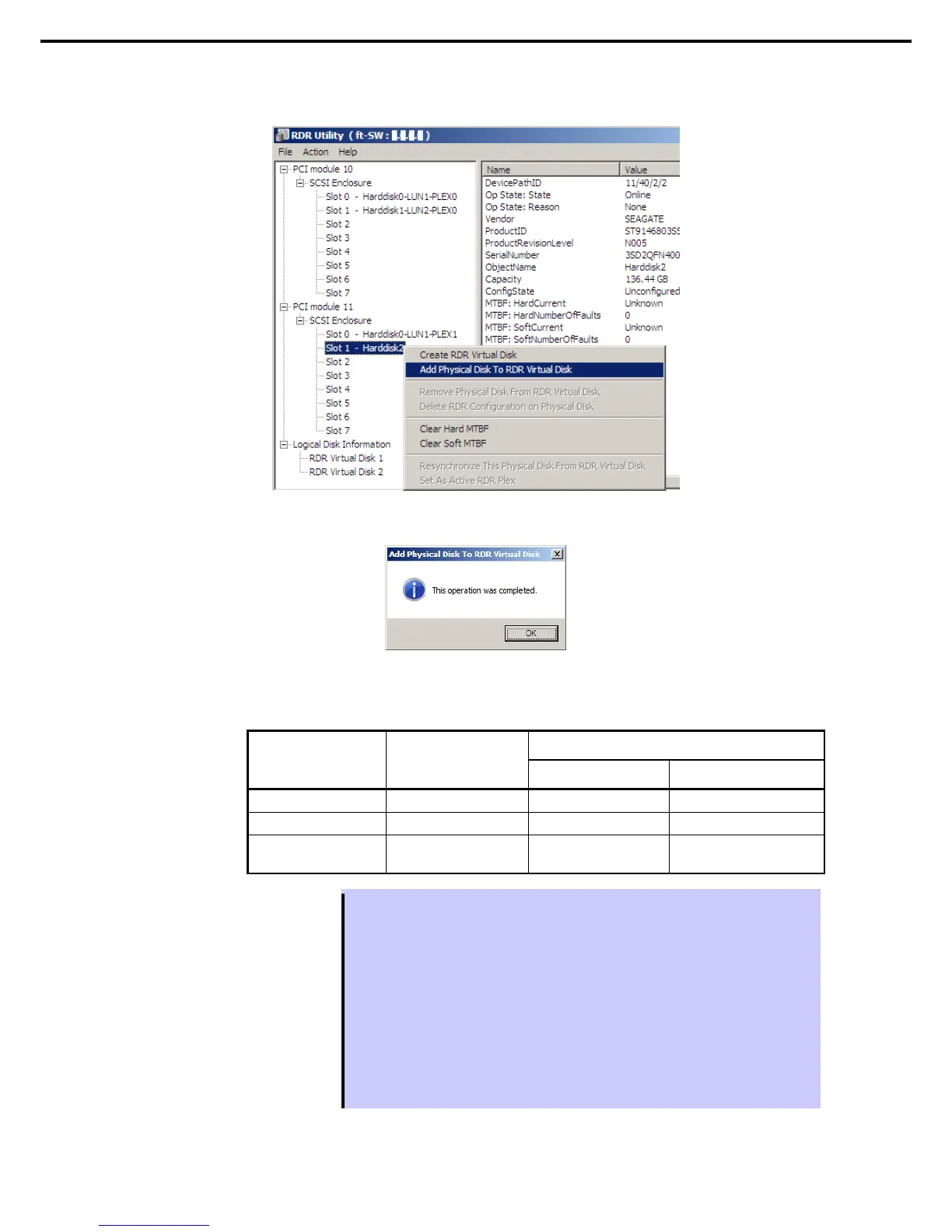

8. Right-click the Slot 1 of the PCI module 11 from the left pane of RDR Utility, and then click Add
Physical Disk To RDR Virtual Disk.
9. Click OK.
10. Verify that disk synchronization has started and the status of the DISK ACCESS LED and RDR Utility
display changes as the following table.
Synchronizing
DISK ACCESS LED
RDR Utility
Op State: State Status
Source disk Green (Blinking) Online –
Destination disk Amber (Blinking) Syncing –
RDR Virtual Disk – Simplex
Resync x %
（
x=0,4,8,....,96
）
Tips
• DISK ACCESS LED is lit green when hard disk drive is accessed.
If access is made while synchronization is in progress (LED is blinking amber), it
seems that the green and amber LEDs are lit alternately.
• The time required for synchronization varies depending on the partition size on the
disk.
For a 136 GB partition, it takes about 100 minutes. When no partition exists on the disk,
synchronization is completed immediately after the RDR is set, and Op State: State
changes to Duplex.
However, when the dynamic disk is used, the time required for synchronization
depends on the disk size regardless of whether or not a partition exists. For a 136 GB
disk, it takes about 100 minutes.
