SYSTEM CONFIGURATION GUIDE – NEC Express5800/R120h-2M
NEC Corporation Revision 5.0 – January 2018 17

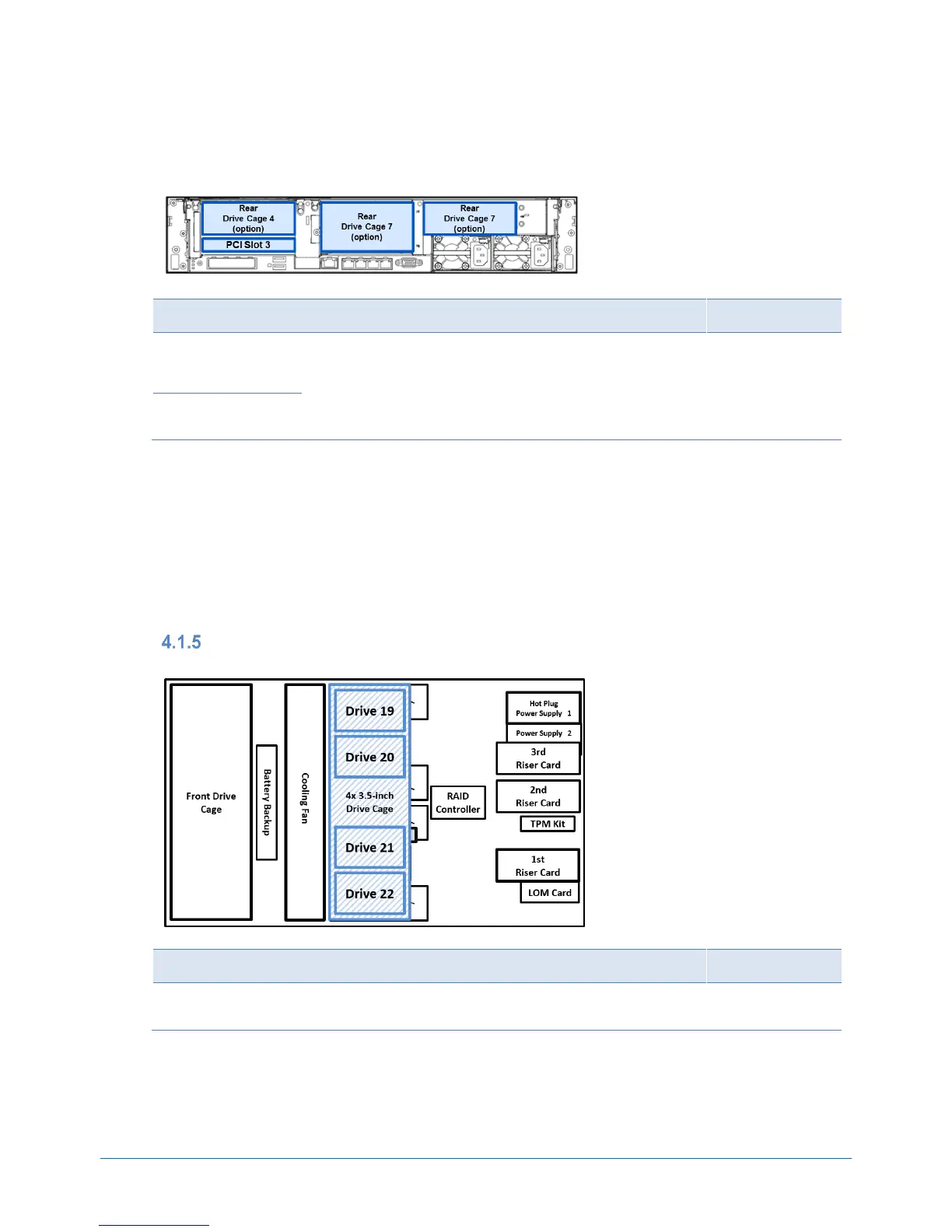

Drive Bay for 3.5-inch Drive Model
With an optional 2.5-inch and 3.5-inch drive cage instead of PCI Riser Card Kit, two 2.5-inch drive bays and three 3.5-inch drive bays
can be added.
Category
Product Name / Description
Part Number
Rear
Drive
Cage 4
2x2.5-inch Hot Plug Drive Cage Kit(SAS/SATA, Rear)
2x 2.5-inch SAS/SATA HDD, including Riser card for slot 3 with one
PCIe 3.0 x16 slot
For all Drive Models
N8154-98
Drive
Cage 7
3x3.5-inch Hot Plug Drive Cage Kit(SAS/SATA, Rear)
3x 3.5-inch SAS/SATA HDD
For 8x3.5-inch Drive Model and 12x3.5-inch Drive Model
N8154-99
NOTE:
 N8154-99 3x3.5-inch Hot Plug Drive Cage Kit (SAS/SATA, Rear) can be installed instead of 2nd, 3rd PCI Riser Kit and N8177-09
Optional RS-232C connector Kit. If the Drive Cage Kit is installed, 2nd, 3rd PCI Riser Kit or N8177-09 Optional RS-232C connecter
Kit cannot be installed.
 After mounting N8154-99, N8154-98 2x2.5-inch Hot Plug Drive Cage Kit (SAS/SATA, Rear) can be installed instead of 1st PCI
Riser Kit. If the Drive Cage Kit is installed, 1st Riser Card Kit cannot be installed.
 When N8154-99 3x3.5-inch Hot Plug Drive Cage Kit (SAS/SATA, Rear) is installed, only one N8154-98 2x2.5-inch Hot Plug Drive
Cage Kit (SAS/SATA, Rear) can be installed.
 If Rear Drive Cage is selected, N8181-158 High Performance Fan is needed. However, in the configuration where a
high-performance fan is attached to CPU, it is unnecessary to select it.
Optional Midplane Drive Bay for 3.5-inch Drive Model
With an optional drive cage installed inside chassis, four 3.5-inch drive bay can be equipped.
Category
Product Name / Description
Part Number
Inside
4x3.5-inch Hot Plug Drive Cage Kit(SAS/SATA, Mid)
Including two low profile heatsink
For 8x3.5-inch Drive Model and 12x3.5-inch Drive Model
N8154-100
NOTE:
 Processor with 125 Watt or less are supported and High Performance Fan Kit are required.
 Platinum 8156 and Gold 6128, 5122 processors are not supported.
 Only half-length PCI cards can be installed.
 The heatsink included with the kit must be installed. In default factory configuration the heatsink installed automatically, not allowed
to select the high-performance heatsink instead.
