NEC LED-FA025i2-220 - LED Wall Components; Module; Figure 5: LED Wall Components; Figure 6: Type a Module - Front View

23
3.5 LED Wall Components
An LED Wall has the following components
 Modules = Cabinet + Pixel cards
 Frame structure (3.3 Framesets for Bundles)
 Power bar (3.5.7 Power Bar)

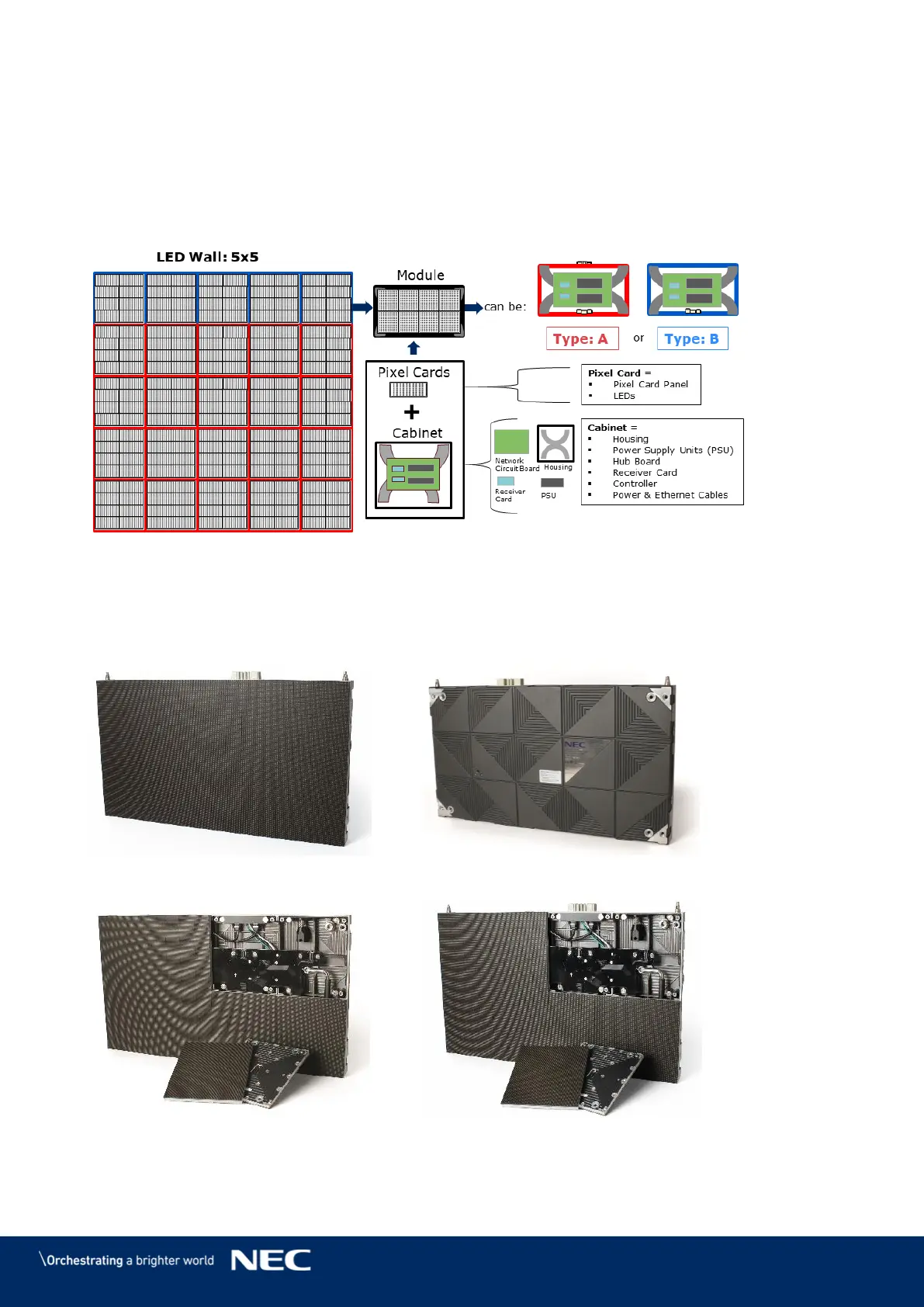

Figure 5: LED Wall Components
Module 3.5.1
The module consists of eight Pixel cards and a cabinet. For information on Type A and B
modules/cabinets, see 3.5.2 Cabinet.
Figure 6: Type A Module – Front View
Figure 7: Module – Back Side
Figure 8: Type B Module – Open
Figure 9: Type A Module – Open
