Power Bar 3.5.7
The Power bar is the LED Wall component for the distribution of data and power. It is located at the
bottom of the LED Wall and connects to each row of modules via the Network and power supply
socket. The Power bar also serves as cable conduit: The cables for power supply and data
transmission run inside the Power bar from Network and power supply sockets and the terminals
to the exit points on the back of the Power bar.

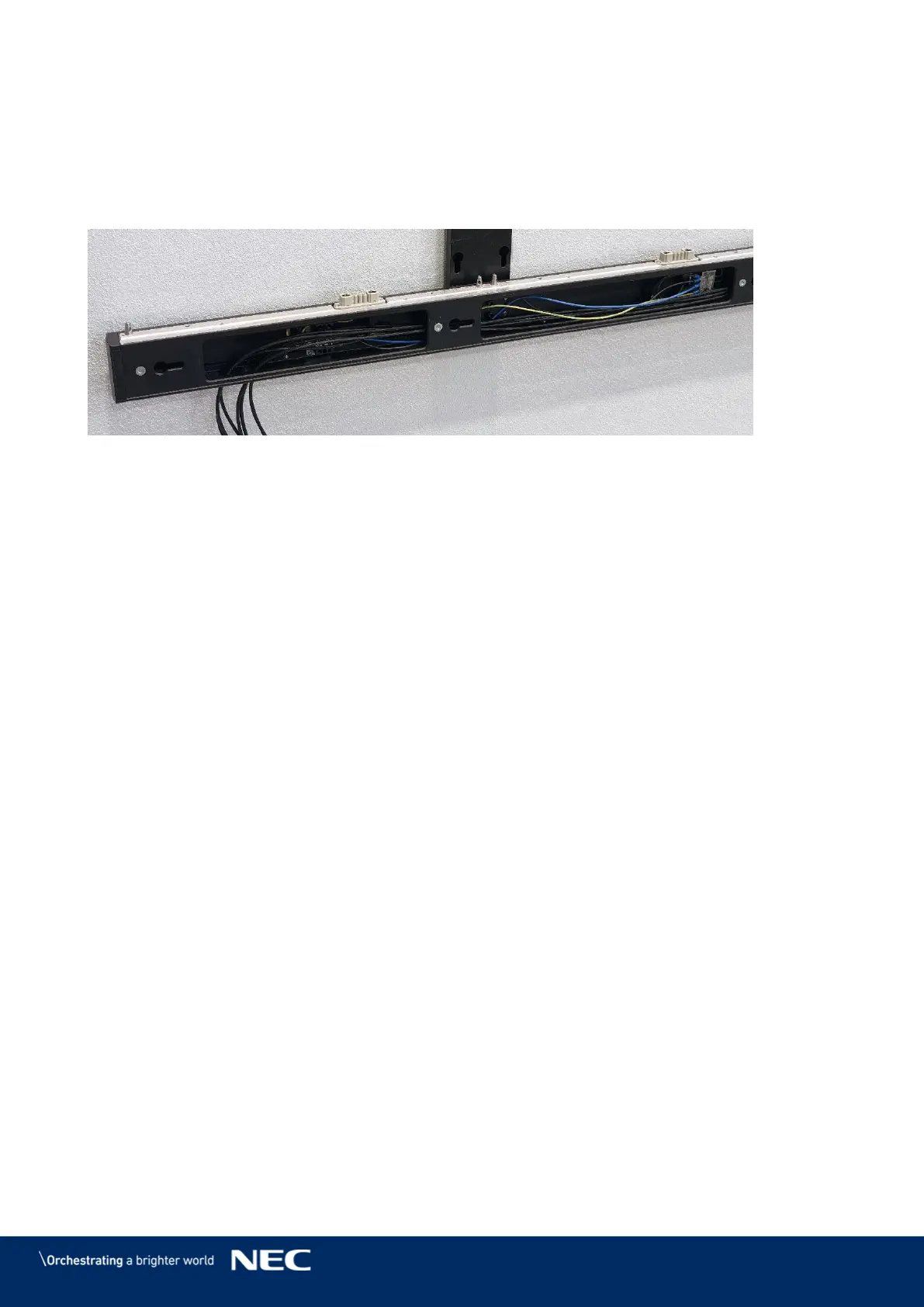

Figure 33: Power Bar with Cable Exit Point
