46
6.3 Install Cabinets
This section is a guide to mounting the cabinets onto the Mounting bar and describes the following
in more detail:
 Prepare the cabinets for installation.
 Install the first row of cabinets
 Fix the first row of cabinets to the Power bar.
 Install further cabinets.
 Align all cabinets of the LED Wall to achieve an even surface.
Table 9: Cabinet Installation Requirements
No. of People
2
Prerequisites
Frameset securely installed
Power bar securely installed
Tools
Screwdriver
Allen key
Equipment
Cabinets
Cabinet hanger pins
Adjustment plate

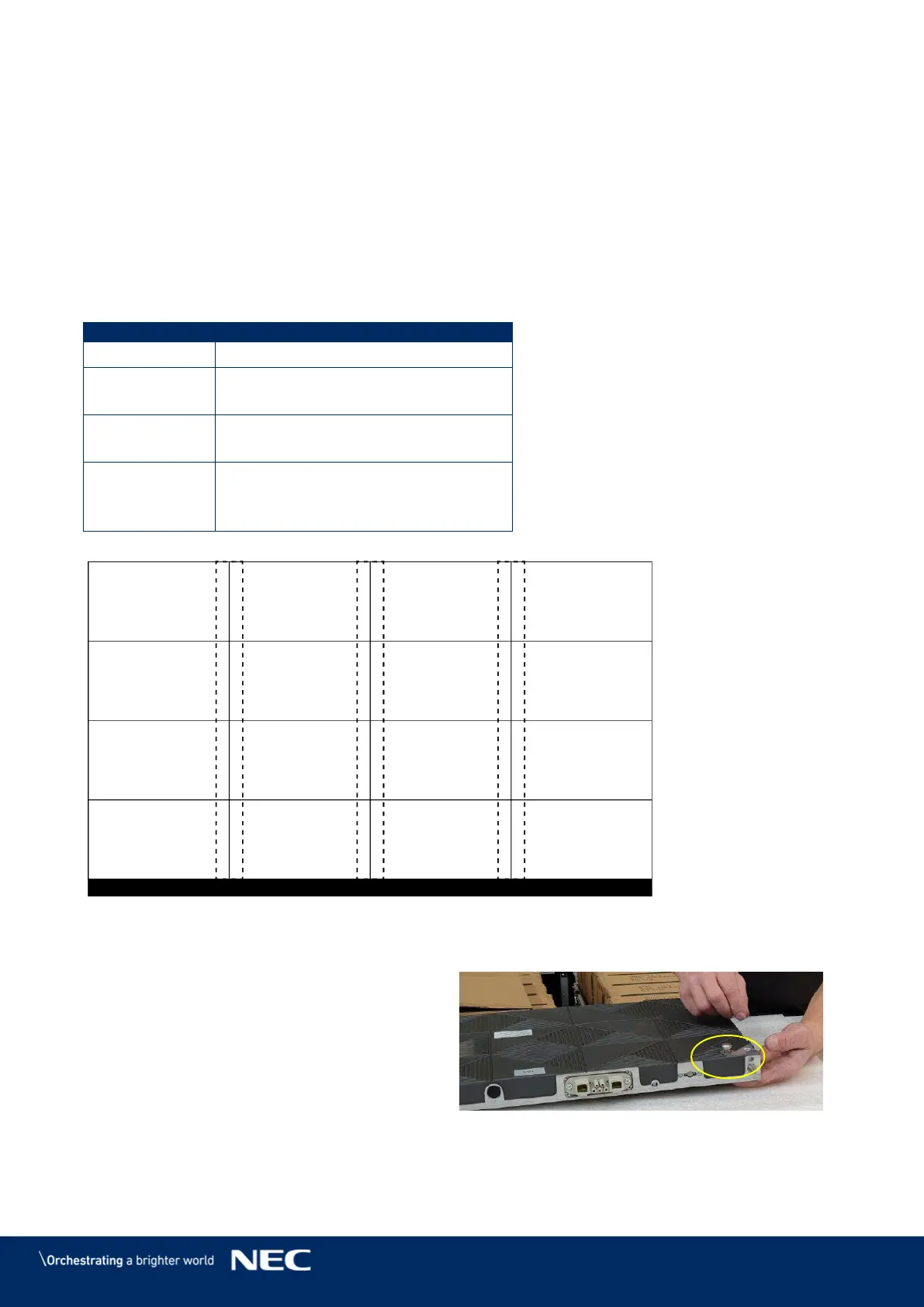

Figure 47: Wall Mounting: Installation Order of Cabinets (4×4 Frameset)
Install Cabinet Hanger Pins on the Backside 6.3.1
On the workbench, place cabinet front-side
down on a protected surface.
Install Cabinet hanger pins (2×) on
Step 1)
top left- and right-hand corners.
Secure the Cabinet hanger pins
Step 2)
firmly.
Figure 48: Installing the Cabinet Hanger Pins
1

2

3

4
5

6

7

8
9

10

11

12
13

14

15

16
