NEC LED-FA025i2-220 - Advanced User Login; Figure 97: Advanced User Login; Figure 98: Entering Password; Figure 99: Interface after Successful Login

74
8.2 Advanced User Login
Asynchronous users need to log in to NovaLCT as Advanced Users to configure screens as
required.
Start the software NovaLCT. Step 1)
Click the User(U) menu and select Advanced Synchronous System User Login(A) Step 2)
(see Figure 97).

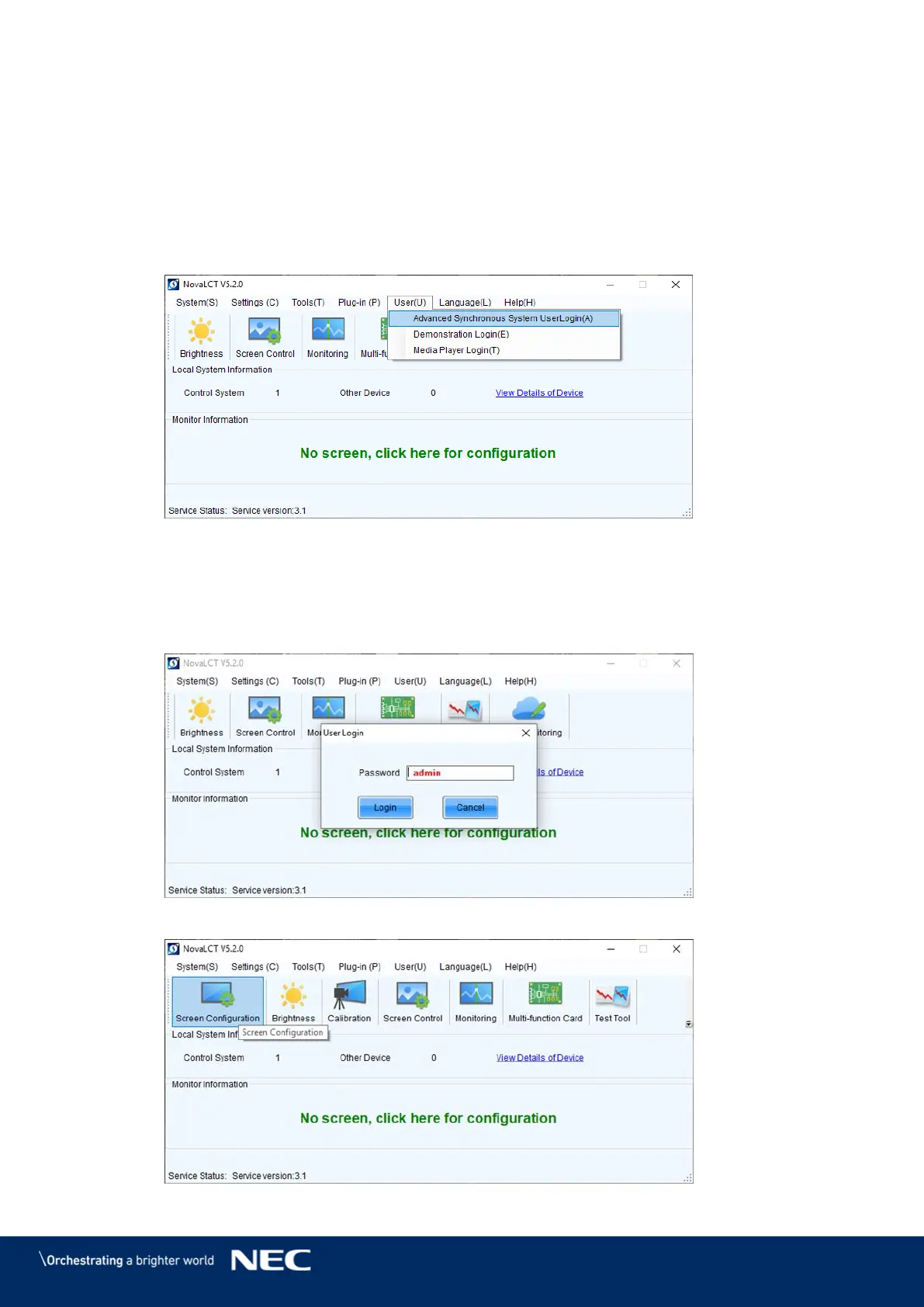

Figure 97: Advanced User Login
Enter the password into the Password field. The default password is admin. Step 3)
Click the Login button to confirm the entry (see Figure 98). Step 4)
If the Login is successful, the interface below will appear (see Figure 99).
The start screen refreshes automatically.
Figure 98: Entering Password
Figure 99: Interface after successful Login
