NEC LED-FA025i2-220 - Attach the Mounting Bars; Figure 43: Wall Mounting: Attachment of Mounting Bars (5×5 Frameset); Figure 44: Using Alignment Bar with Spirit Level

44
Attach the Mounting bars 6.1.4
Attach each vertical Mounting bar onto the grid on the wall. Step 1)
Check the distance of the frame elements using the Alignment bar. Step 2)
Use the spirit level together with the Alignment bar to check the evenness (Figure 43 Step 3)
and Figure 44). If necessary, adjust the positions accordingly.

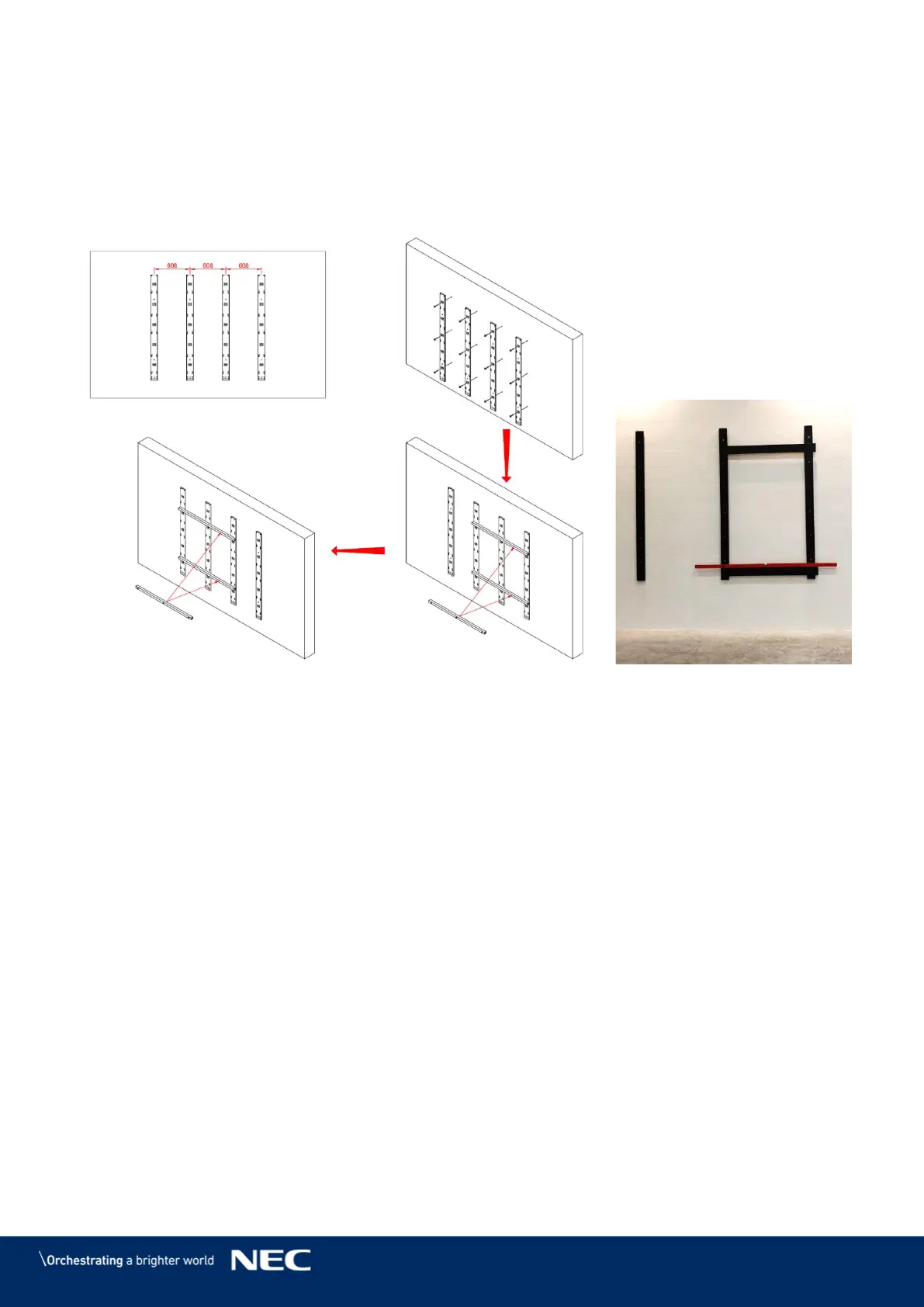

Figure 43: Wall Mounting: Attachment of Mounting bars
(5×5 Frameset)
Figure 44: Using Alignment Bar
with Spirit Level
