NEC LED-FA025i2-220 - Sending Card; Figure 109: Starting the Monitoring Function; Figure 110: Start Screen Monitoring Receiving Cards and Power Supplies

80
Sending Card 8.3.5
The Monitoring view of the Sending card offers checking the connection of the Sending cards.
Errors will be shown in colored surfaces. The color codes are defined in the interface itself.
Click the Monitoring button to open the Monitoring interface (see Figure 109). Step 1)
Result: The Monitoring interface will open. By default, the Monitoring view for the
Receiving cards is opened (see Figure 110).

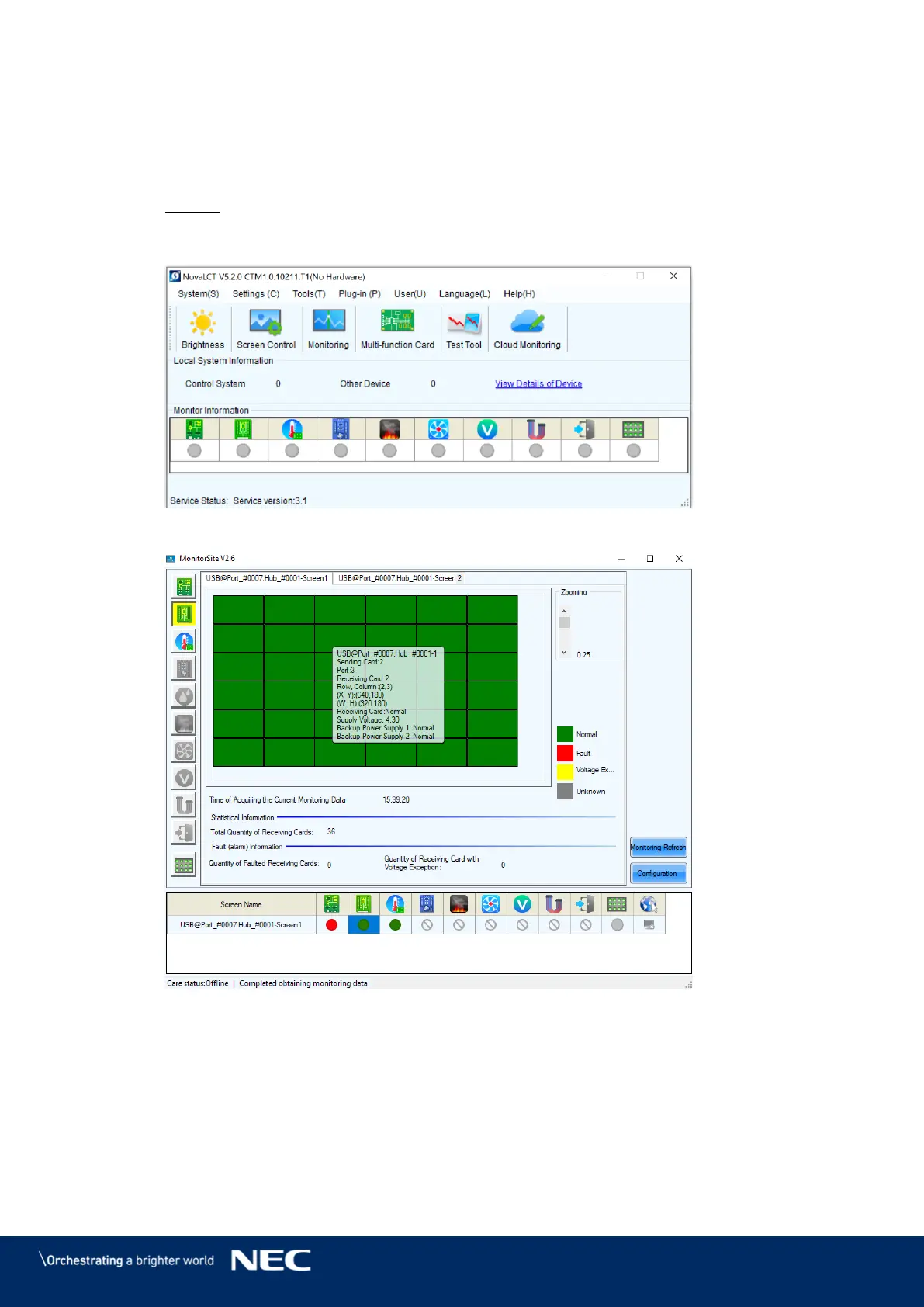

Figure 109: Starting the Monitoring Function
Figure 110: Start Screen Monitoring Receiving Cards and Power Supplies
Click Sending Card button to switch to the Monitoring view for the Sending card (see Step 2)
Figure 111).
