NEC LED-FA025i2-220 - Secure Cabinet to Power Bar; Figure 52: Cabinet Interlocks (H) and Anchors (I); Figure 53: Vertical Alignment of Cabinets; Figure 54: Fastening of First Row to Power Bar

48

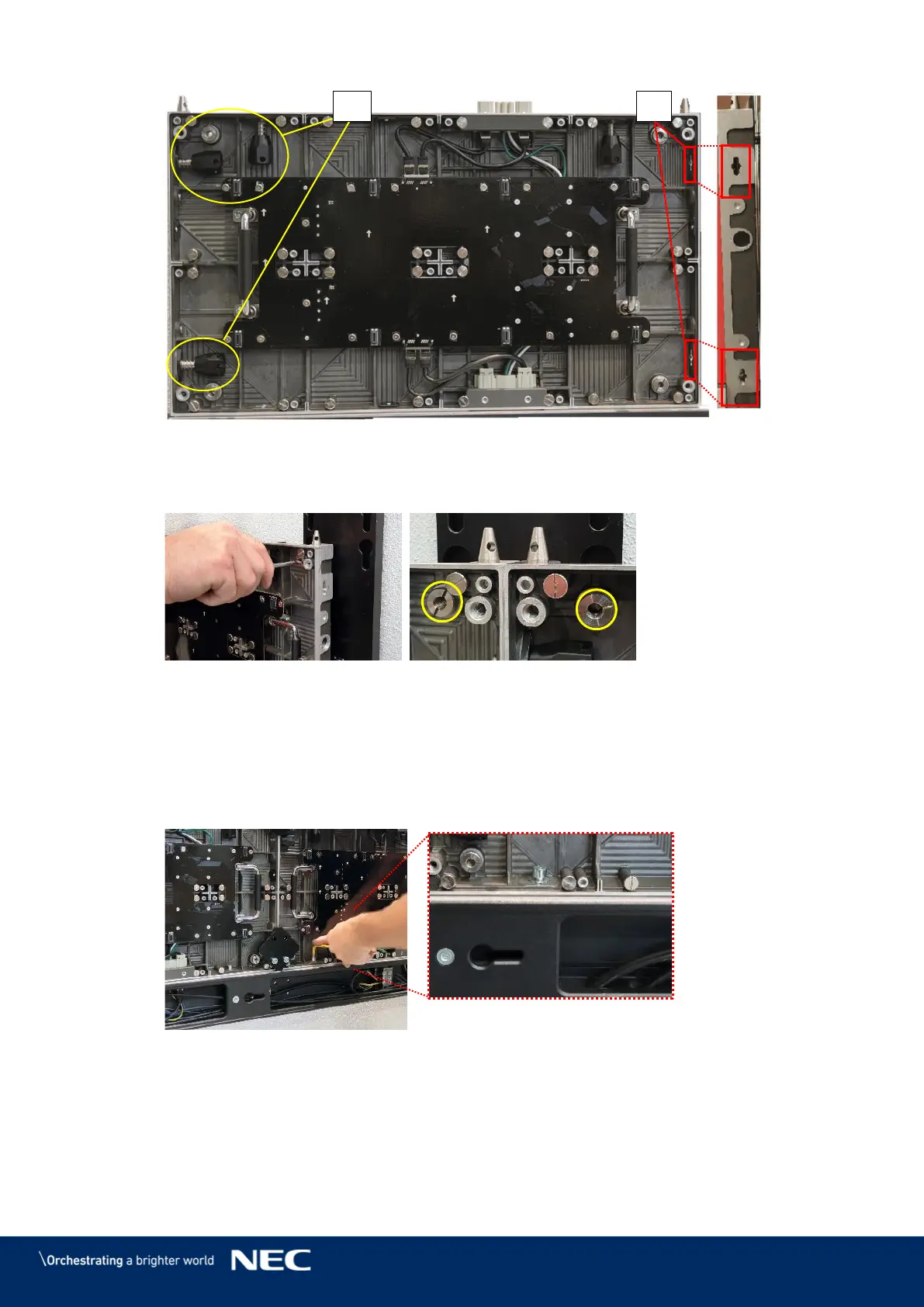

Figure 52: Cabinet Interlocks (H) and Anchors (I)
Adjust the vertical alignment of the cabinets using the screw in the top corner of the
Step 5)
cabinet.
Figure 53: Vertical Alignment of Cabinets
Secure Cabinet to Power Bar 6.3.3
Connect the cabinets of the first row to the Power bar. For this, screw a M8×16 screw Step 1)
in the opening for the Cabinet interlocks at the bottom of the cabinets
Screw the cabinets of the first row onto the Power bar with M8×16 screws. Step 2)
Figure 54: Fastening of First Row to Power Bar
I
H
