130
One CDE3994
Controller-Drive
Tray or CDE3992
Controller-Drive
Tray and Three
Drive Trays
If you are connecting one CDE3994 controller-drive tray to three drive trays, and
those drive traydrive trays have inverted ESM canisters, use the cabling topology
described in the following table and figure.

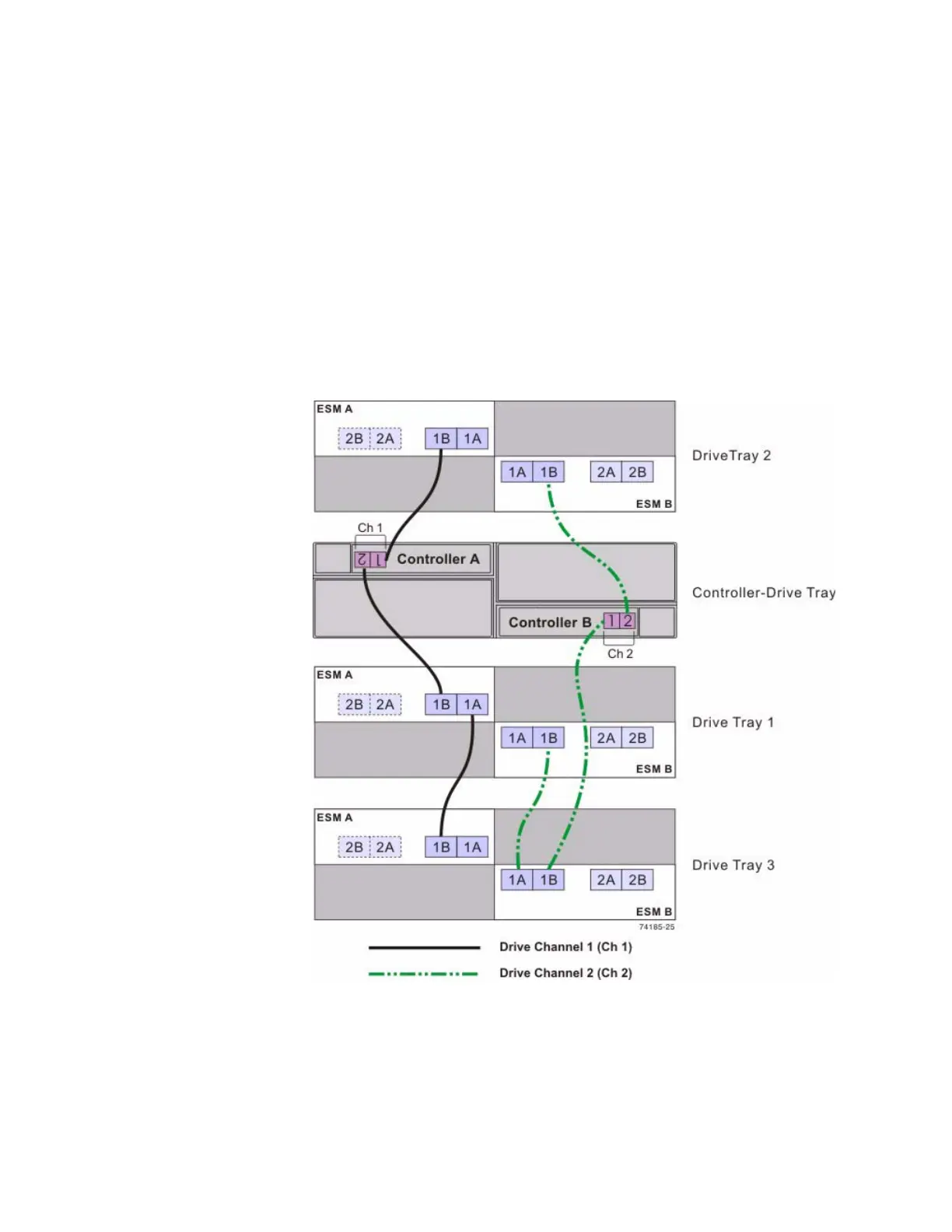

Figure 52 One CDE3994 Controller-Drive Tray and Three Drive Trays with
Inverted ESMs
