Chapter 6: Component Locations 163

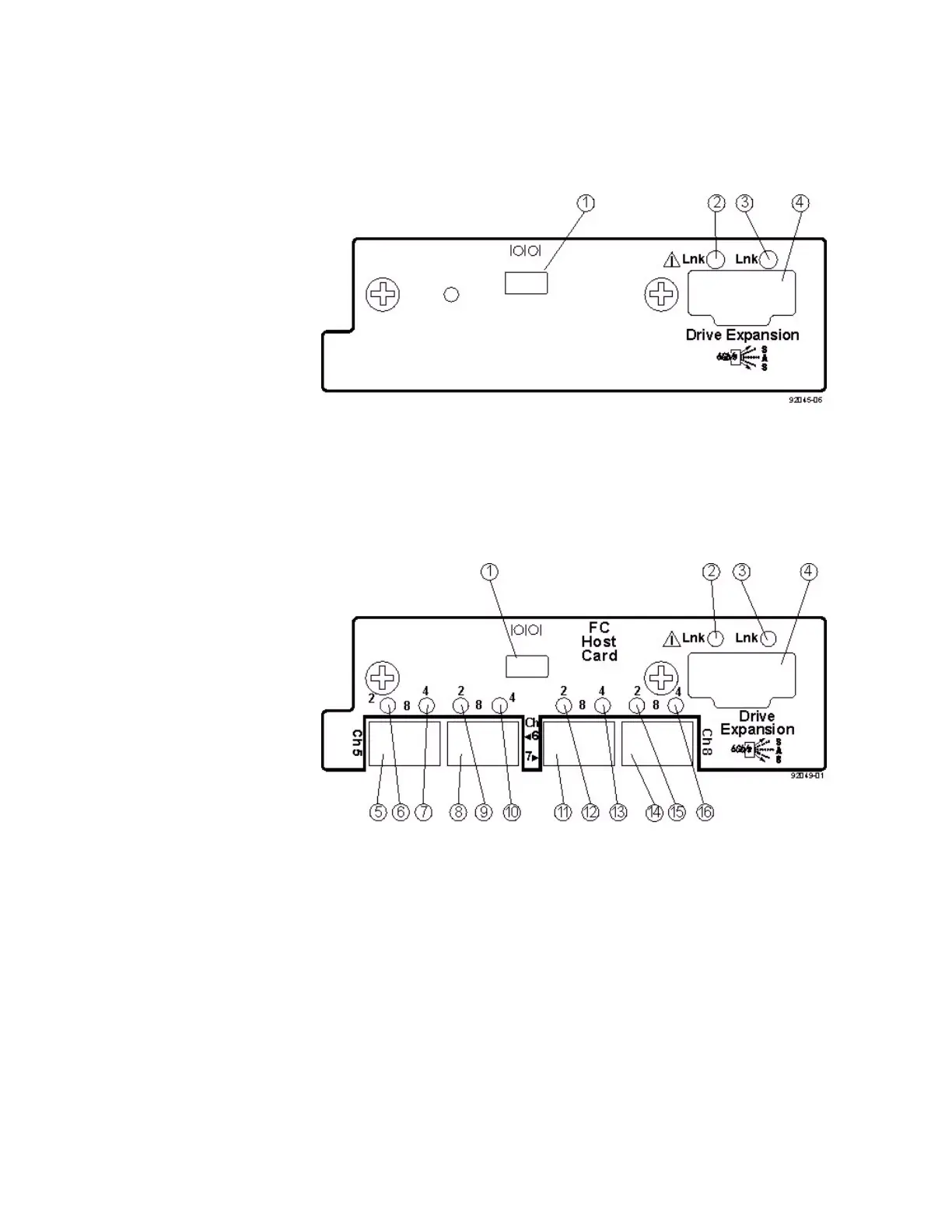

Figure 9 E5400 Right-Rear Subplate with No Host Interface Card
1. Mini USB Connector
2. ESM Expansion Fault LED
3. ESM Expansion Active LED
4. Expansion SFF-8088 Port Connector
Figure 10 E5400 Right-Rear Subplate with an Fibre Channel Host Interface
Card
1. Mini USB Connector
2. SAS Expansion Fault LED
3. SAS Expansion Active LED
4. SAS Expansion SFF-8088 Port Connector
5. FC Host Interface Card Connector 5
6. Host Interface Card Link 5 LED 0
7. Host Interface Card Link 5 LED 1
8. FC Host Interface Card Connector 6
9. Host Interface Card Link 6 LED 0
