164
10. Host Interface Card Link 6 LED 1
11. FC Host Interface Card Connector 7
12. Host Interface Card Link 7 LED 0
13. Host Interface Card Link 7 LED 1
14. FC Host Interface Card Connector 8
15. Host Interface Card Link 8 LED 0
16. Host Interface Card Link 8 LED 1

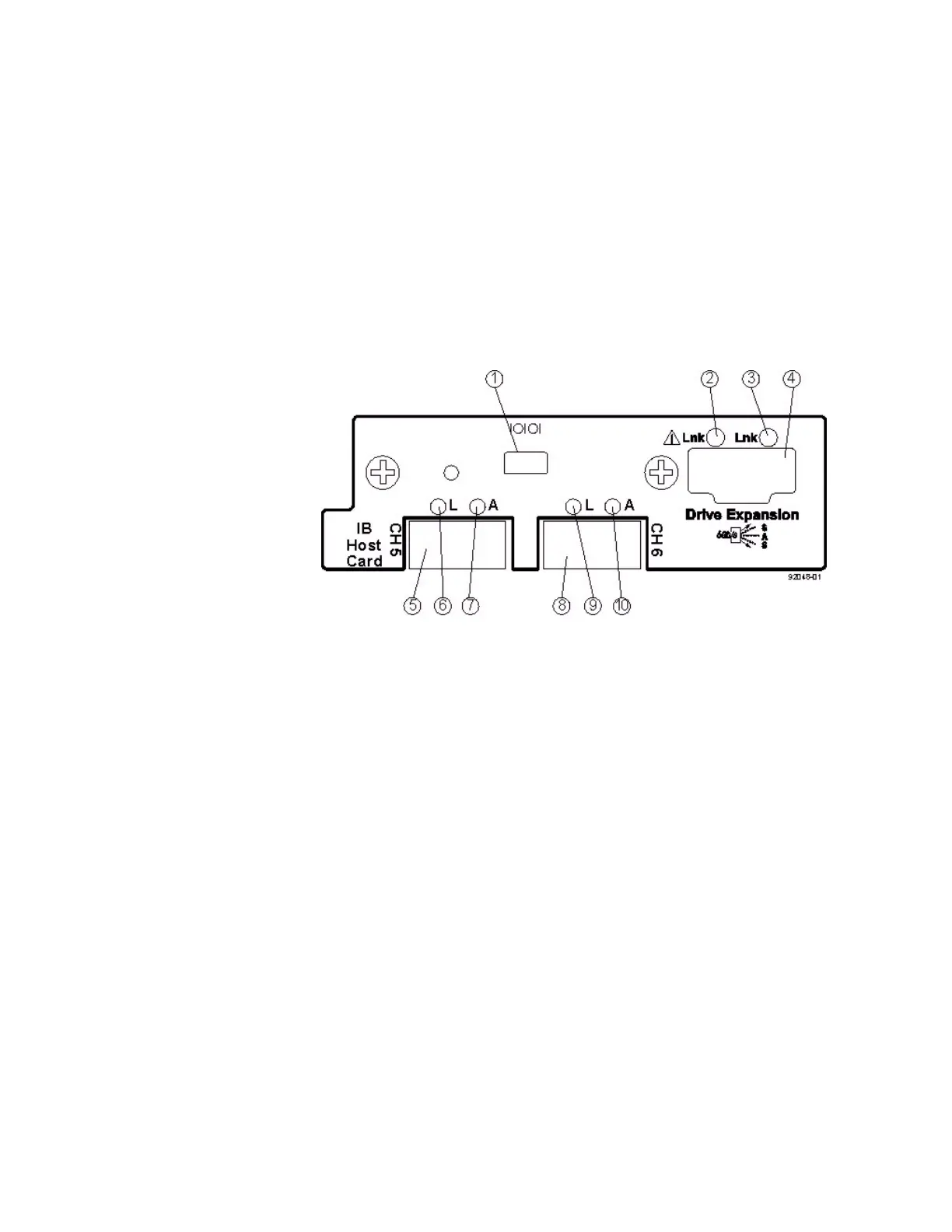

Figure 11 E5400 Right-Rear Subplate with an InfiniBand Host Interface Card
1. Mini USB Connector
2. SAS Expansion Fault LED
3. SAS Expansion Active LED
4. SAS Expansion SFF-8088 Port Connector
5. IB Host Interface Card Connector 1
6. IB Host Interface Card Physical Link 1 LED (Green)
7. IB Host Interface Card Logical Link 1 LED (Amber)
8. IB Host Interface Card Connector 2
9. IB Host Interface Card Physical Link 2 LED (Green)
10. IB Host Interface Card Logical Link 2 LED (Amber)
