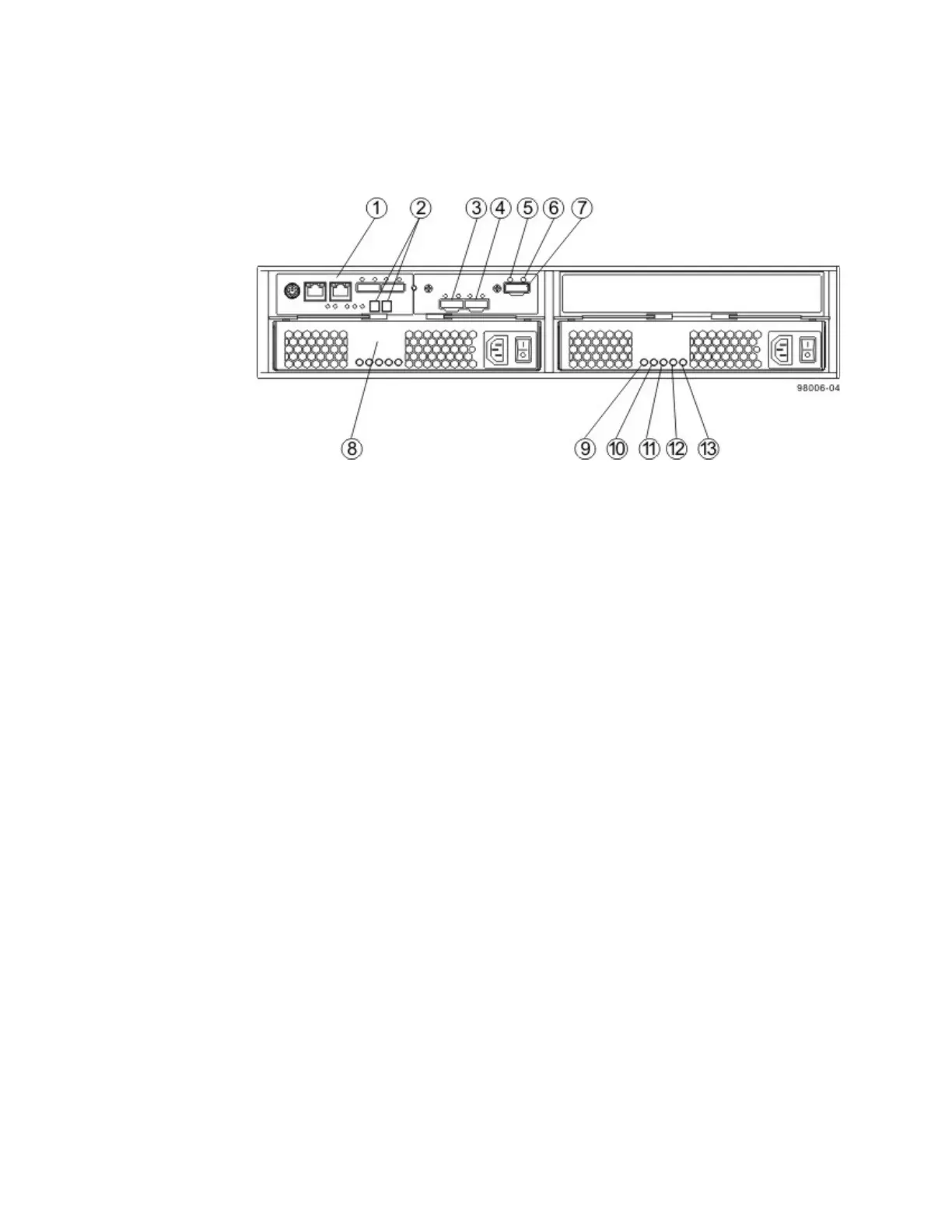

Figure 21 E2600 Controller-Drive Tray Simplex Configuration – Rear View
1. Controller A Canister
2. Seven-Segment Display
3. Host Interface Card Connector 1
4. Host Interface Card Connector 2
5. ESMESM Expansion Fault LED
6. ESM Expansion Active LED
7. Expansion Port SFF-8088 Connector
8. Power-Fan A Canister
9. Standby Power LED
10. Power-Fan DC Power LED
11. Power-Fan Service Action Allowed LED
12. Power-Fan Service Action Required LED
13. Power-Fan AC Power LED
