Chapter 6: Component Locations 181
Component
Locations on
the DE6600
Drive Tray

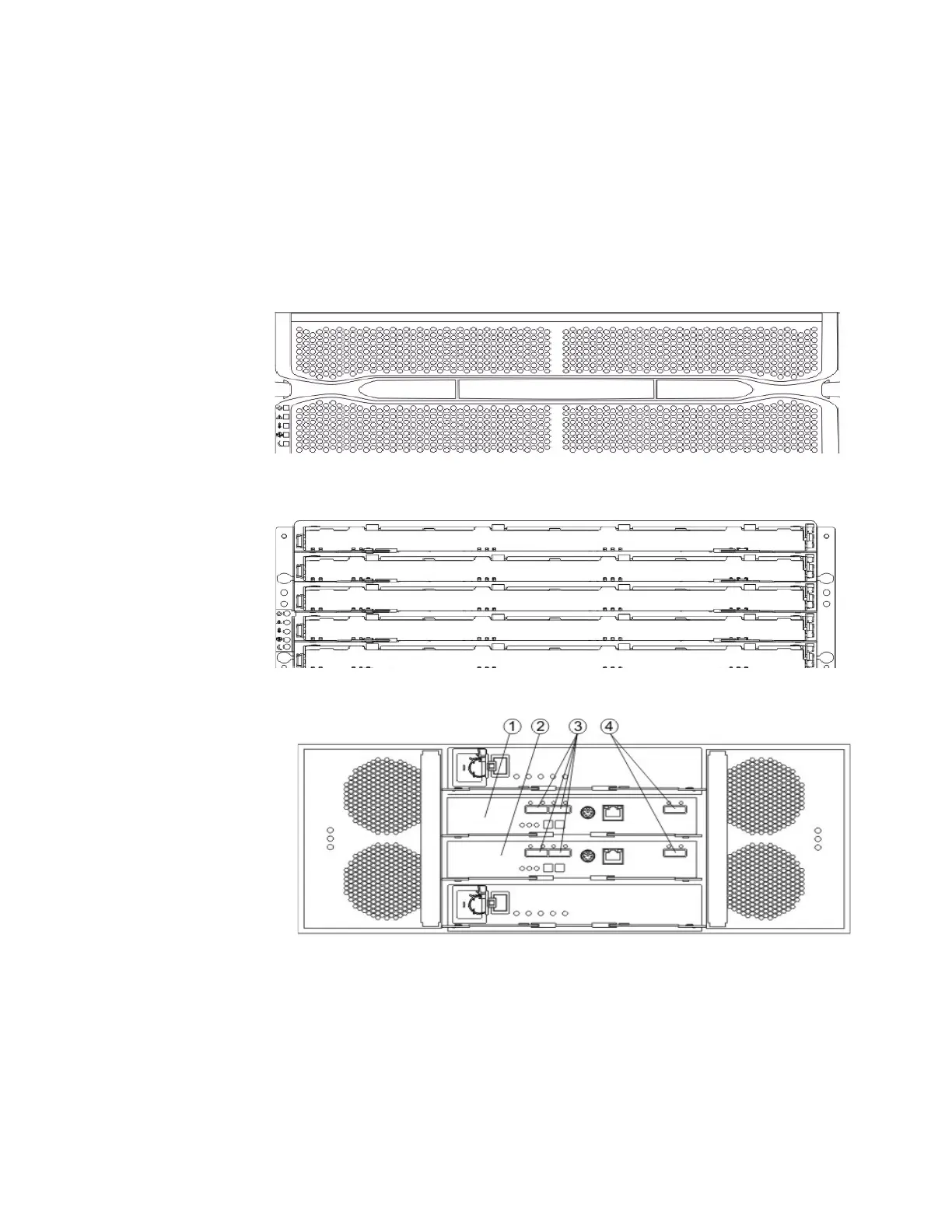

Figure 29 DE6600 Drive Tray – Front View with the Bezel
Figure 30 DE6600 Drive TrayDrive Tray – Front View with the Bezel Removed
Figure 31 DE6600 Drive Tray – Rear View
1. ESM A
2. ESM B
3. SAS In Connectors
4. Expansion Connectors
