182
Component
Locations on
the FC4600
Drive Tray

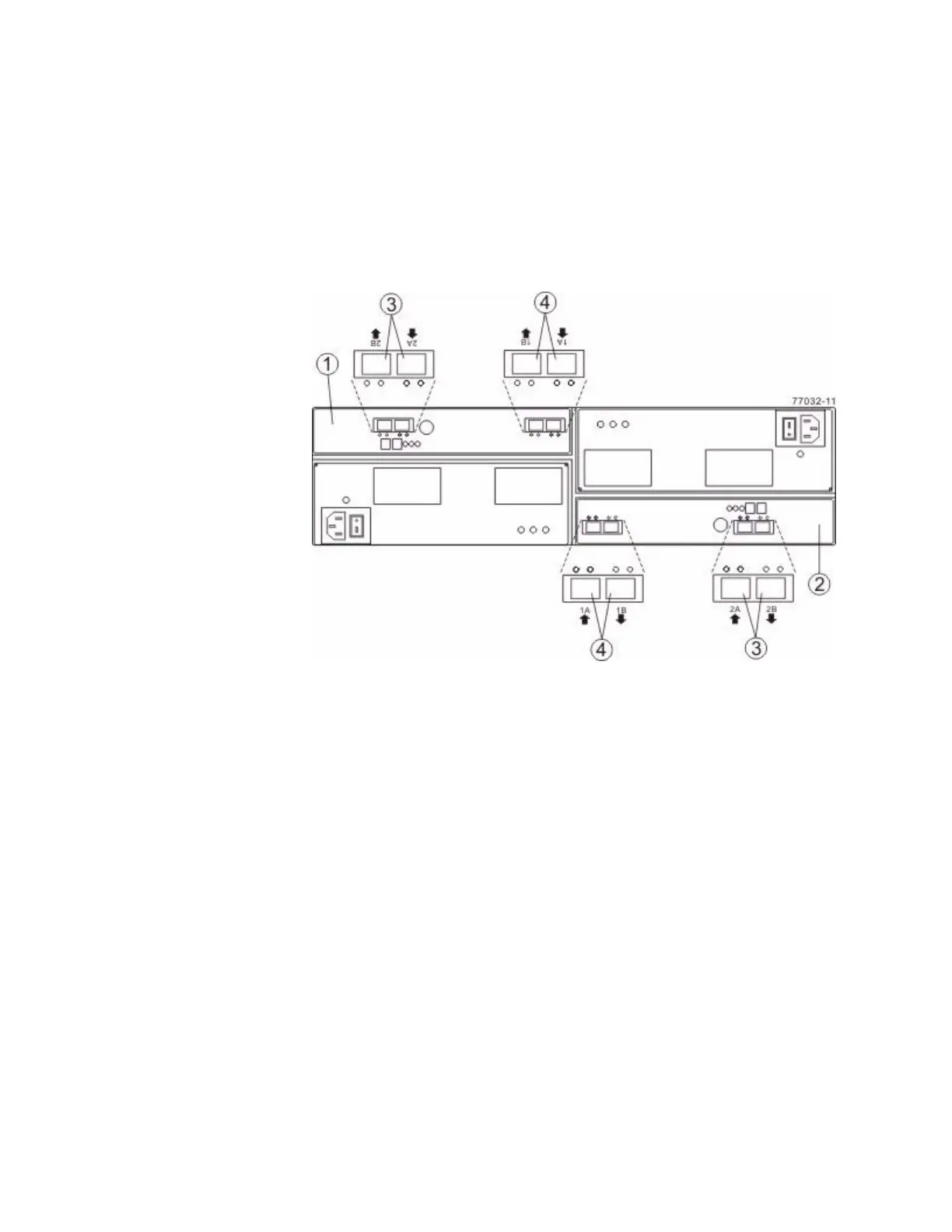

Figure 32 Component Locations on the FC4600 Drive Tray – Rear View
1. Left ESM
2. Right ESM
3. Secondary SFP Ports
4. Primary SFP Ports
The ESM on the FC4600 drive tray has four SFP ports. The two primary ports are
active. The secondary ports are reserved for future use. If SFP transceivers are placed
in the secondary ports, the SFP Port LEDs blink, as a reminder that these ports are not
functioning.
