184
Component
Locations on
the FC2610
Drive Tray

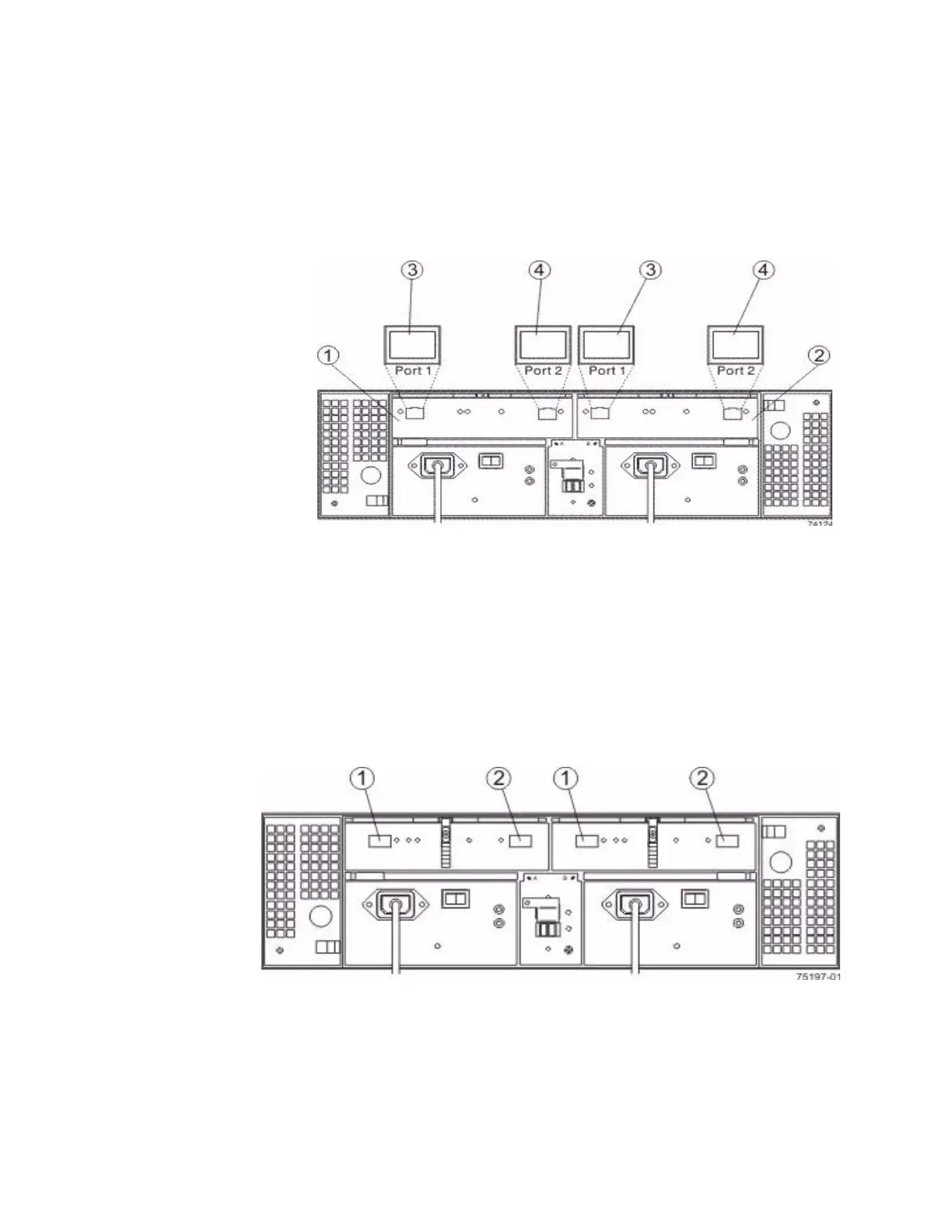

Figure 34 Component Locations on the FC2610 Drive Tray – Rear View
1. Left ESM
2. Right ESM
3. In Ports
4. Out Ports
Component
Locations on
the FC2600
Drive Tray
Figure 35 Component Locations on the FC2600 Drive Tray – Rear View
1. In Ports
2. Out Ports
