Chapter 6: Component Locations 185
Component
Locations on
the DE1600
Drive Tray and
the DE5600
Drive Tray
The DE1600 drive tray can have two to twelve 3.5-in. drives. The DE5600 drive tray
can have two to twenty-four 2.5-in. drives. The component locations on the rear of
these drive trays are the same. The following figures show the AC power option.

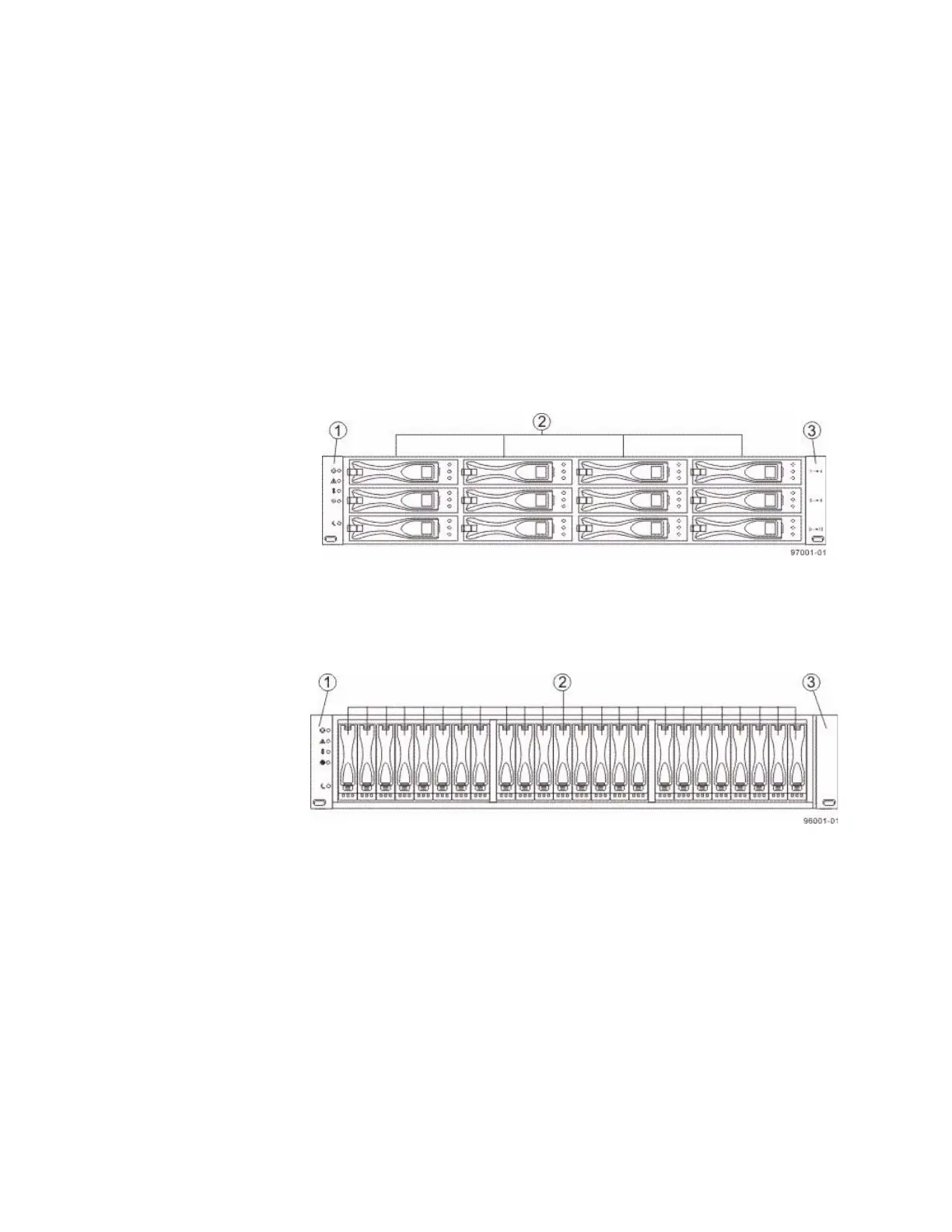

Figure 36 DE1600 Drive Tray – Front View
1. Left End Cap (Has the Drive Tray LEDs)
2. Drives
3. Right End Cap
Figure 37 DE5600 Drive Tray – Front View
1. Left End Cap (Has the Drive Tray LEDs)
2. Drives
3. Right End Cap
