9. Connect controller port B2 of the storage array to an available port in zone 2 of
switch 2. In a four-host-port system, connect controller port B4 to an available
port in zone 2 of switch 2.

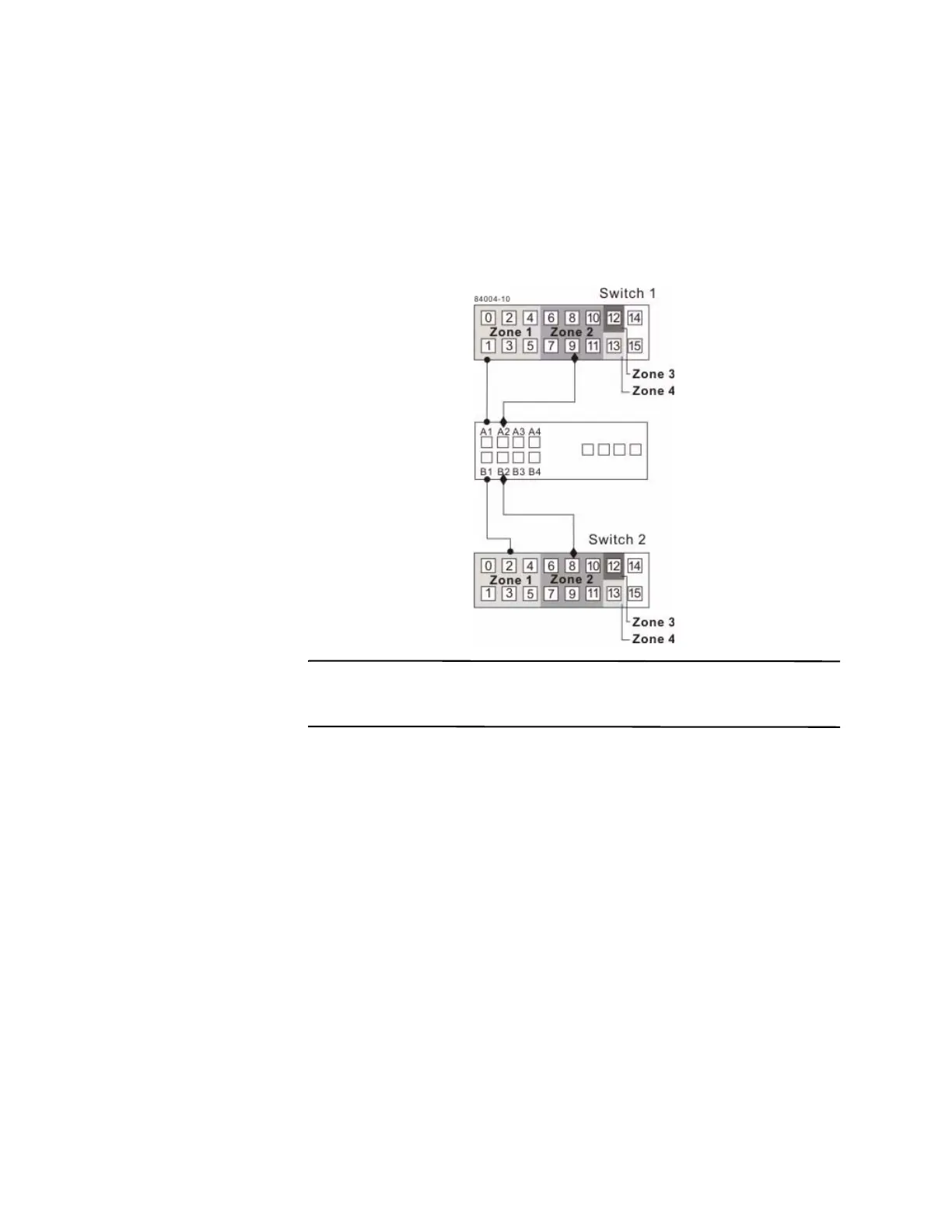

Figure 5 Storage Array Connections to Fibr
e
Channel Switches in the CE6998
Controller Tray
NOTE Controller port A2 and controller port B2 are reserved for mirror relationship
synchronization upon activation of the Synchronous Mirroring premium feature. In a
four-host-port system, controller port A4 and controller port B4 are reserved.
