Chapter 8: Hardware Installation for Synchronous Mirroring 201
10. The primary site connection is now complete. Is the secondary site connection
complete?
— No – Repeat step 1 through step 9 for the secondary site.
— Ye s – Go to step 11.
11. Complete the fabric environment for switch 1
by connecting switch 1A to switch
1B.

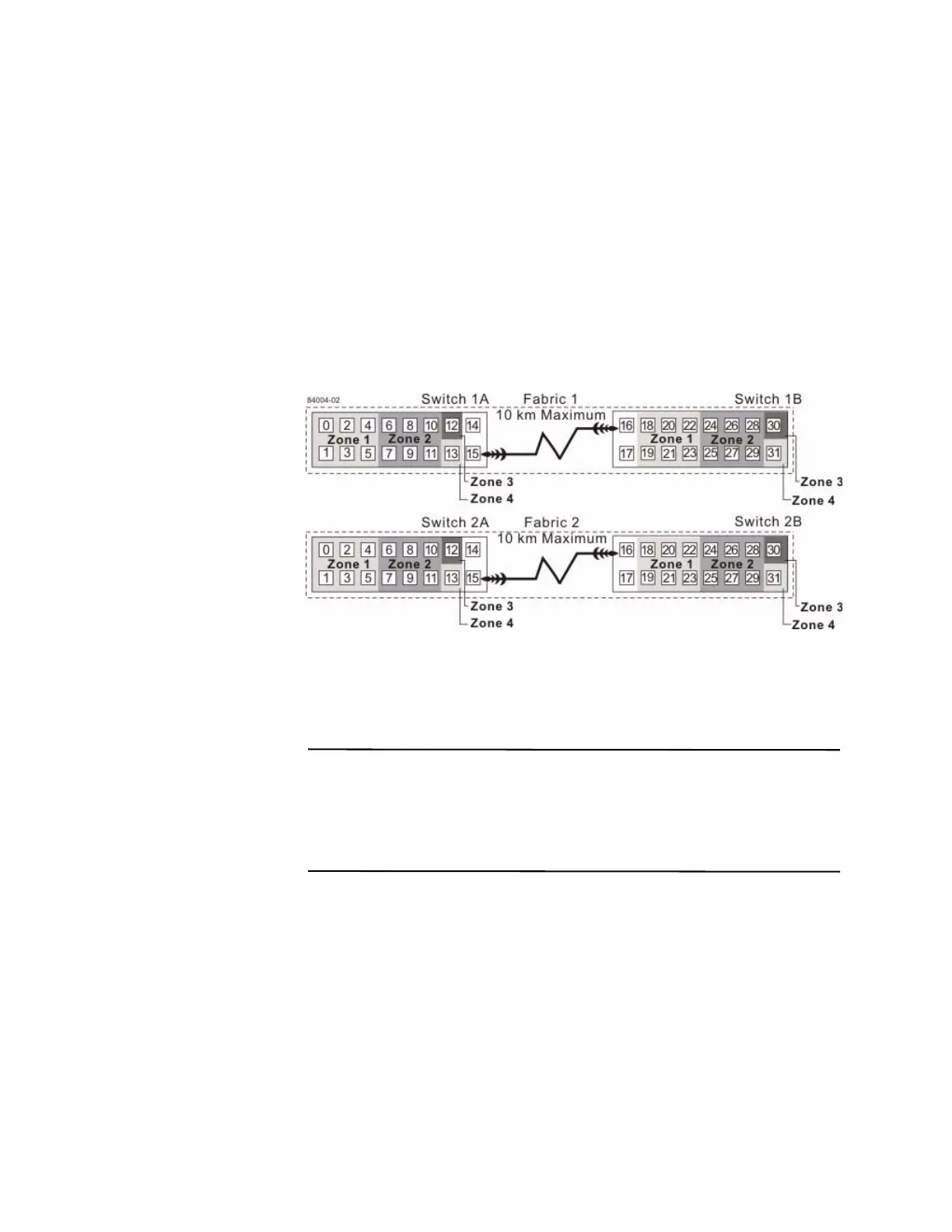

The following figure shows the connection that is described in step 11 and step
12.
Figure 6 Connecting Remote Switches to Co
mp
lete Fabric Environments
12. Repeat step 11 for switch 2A and switch 2B to complete the fabric environment
for switch 2.
13. Connection for the highest availability campus configuration is complete. Repeat
step 4 through step 10 for other storage arrays that exist in the same cabinet that
use the Synchronous Mirroring premium feature.
ATTENTION Possible hardware damage – DC-powered controller-drive trays and
drive trays have special power procedures that you must follow beyond the procedures
for AC-powered trays. To get specific power-off and power-on procedures, refer to the
topics under the storage array installation for the hardware that you are installing or to
the corresponding PDF document on the SANtricity ES Storage Manager Installation
DVD.
14. Turn on the power to all of the storage array hosts, Fibre Channel switches, and
any other hardware at both sites where the power was turned off.
The hardware installation is complete. To
configure the storage management
software to support mirror relationships, refer to the online help topics.
