9. Connect controller port B2 of the storage array to an available port in zone 4 of
switch 1A. In a four-host-port system, connect controller port B4.
NOTE Controller ports A2 and B2 are reserved for mirror relationship
synchronization upon activation of the Synchronous Mirroring premium feature. In a
four-host-port system, controller port A4 and controller port B4 are reserved.

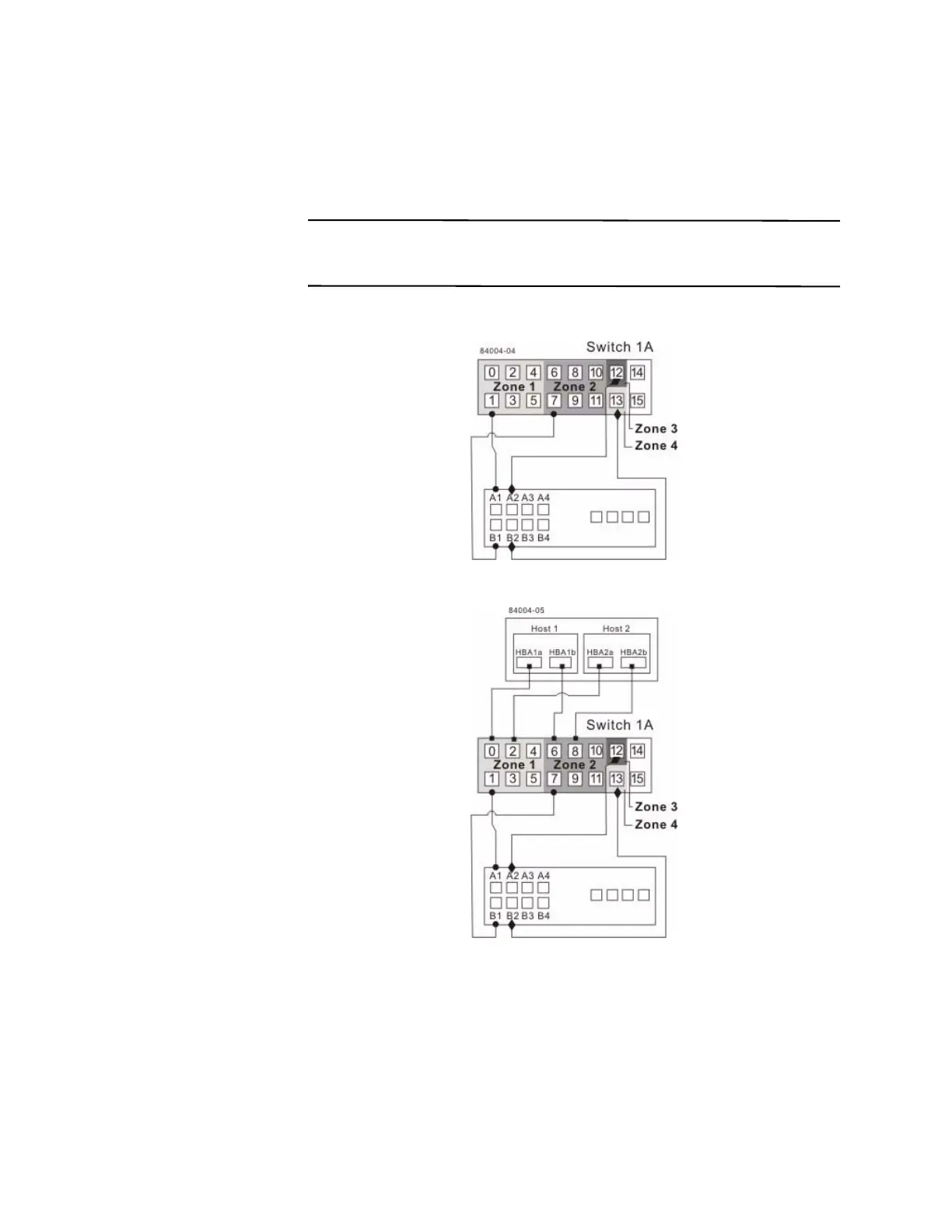

Figure 10 Storage Array Connections to Fibre Channel Switches
Figure 11 Storage Array Connections to Fibre Channel Switches
