Chapter 8: Hardware Installation for Synchronous Mirroring 211
4. Connect the primary host bus adapter for each host to an available port in zone 1
of switch 1.
The following figure shows the connection that is described in step 4.
NOTE You can connect the cables to any port in the correct zone of the switch.

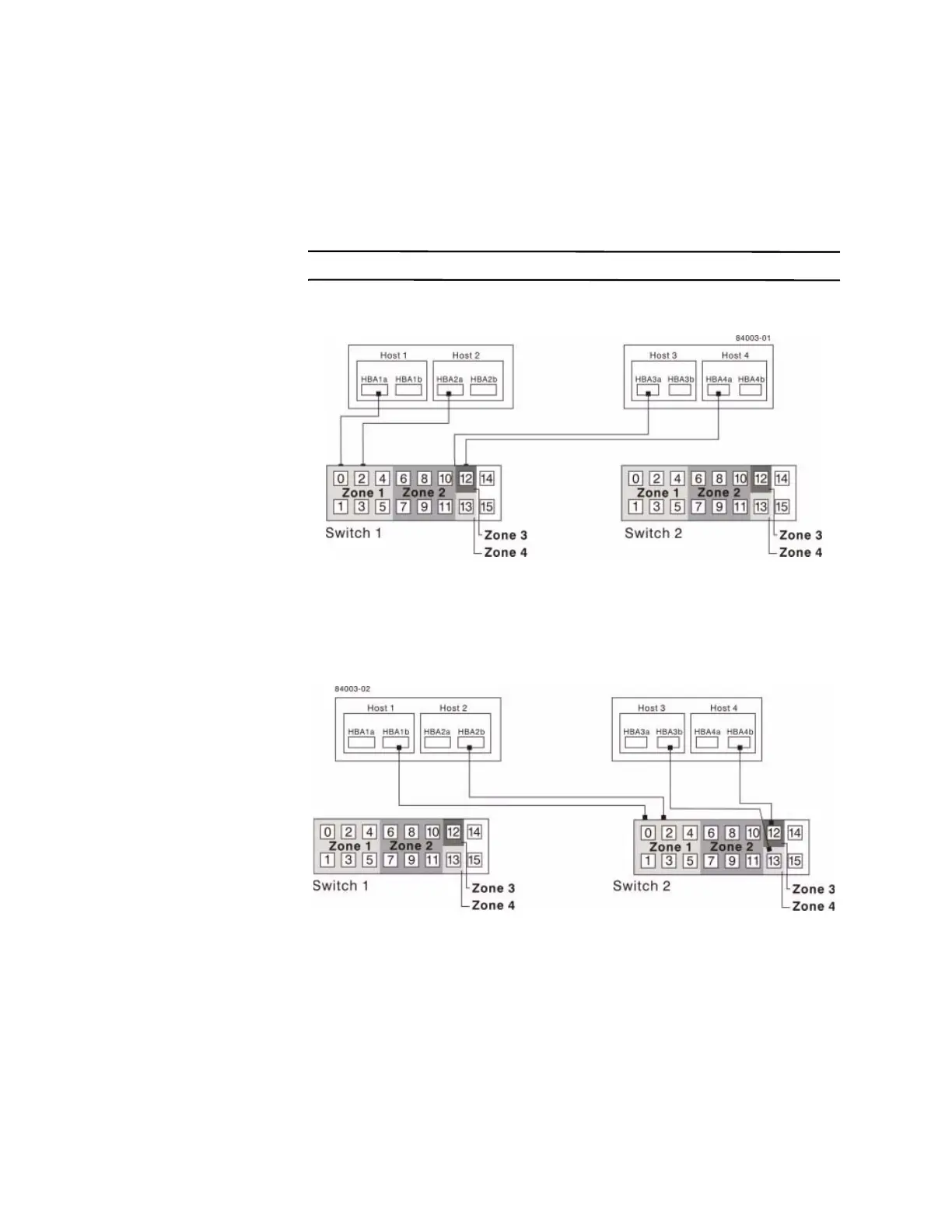

Figure 15 Primary Host Bus Adapter Connections to Fibre Channel Switches
5. Connect the secondary host bus adapter for each host to an available port in zone
1 of switch 2.
The following figure shows the connection that is described in this step.
Figure 16 Secondary Host Bus Adapter Connections to Fibr
e Channel Switches
