GS108T and GS110TP Smart Switch Software Administration Manual
Getting Started 1-11
v1.0, April 2010
4. Click OK.
5. Enter the switch password and click Apply.
The file is uploaded to the administrative computer as a *.cfg file. You can open it and view
the contents with a text editor.

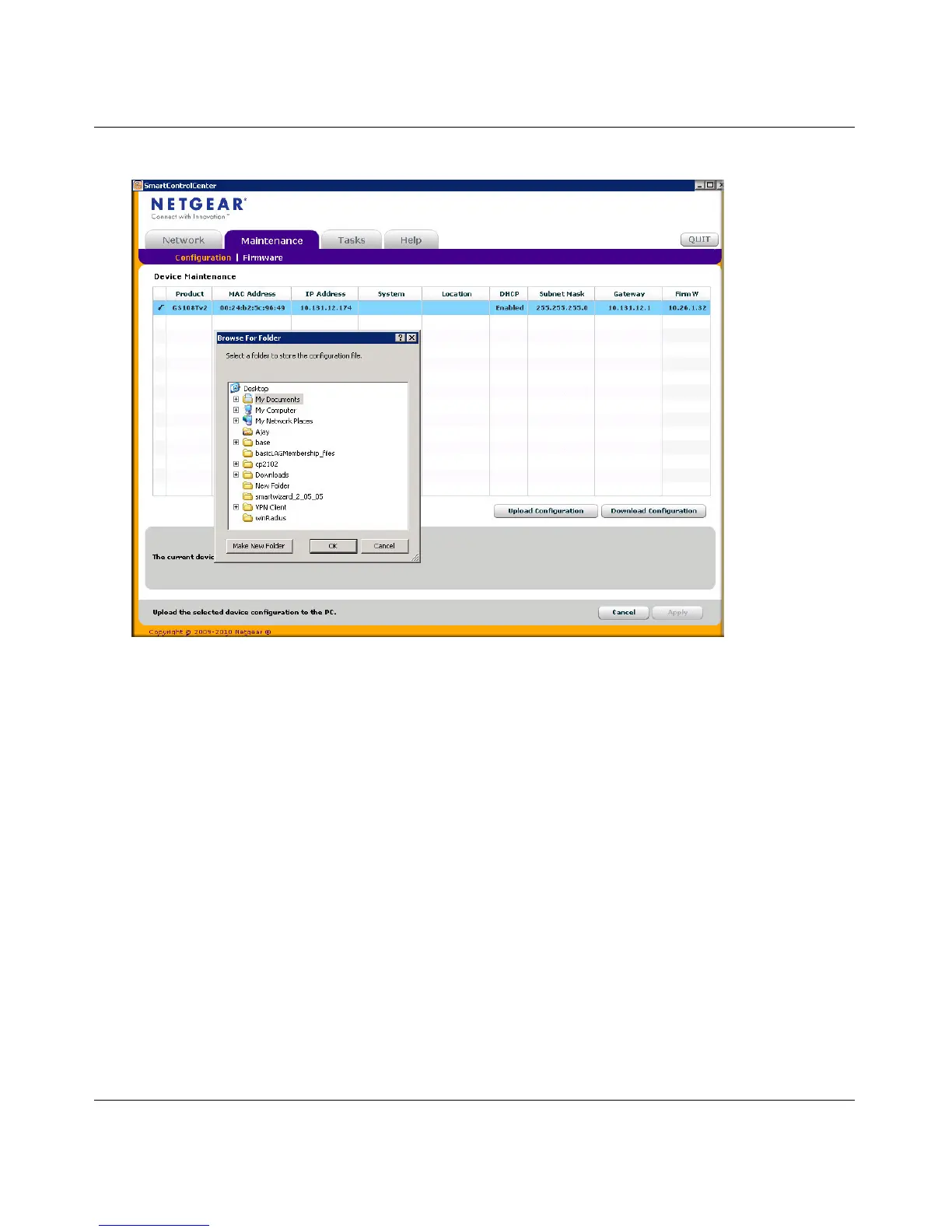

To restore the configuration to a previously saved version:
1. Click the Maintenance tab and select the device with the configuration to restore.
2. Click Download Configuration.
3. From the Select a Configuration window that appears, navigate to and select the
configuration file to download to the switch.
4. Click Open.
5. Enter the switch password and click Apply to begin the download process.
Optionally, you can schedule a different date and time to download the configuration file. To
delay the download process, clear the Run Now? check box and enter a date and time to
complete the download.
